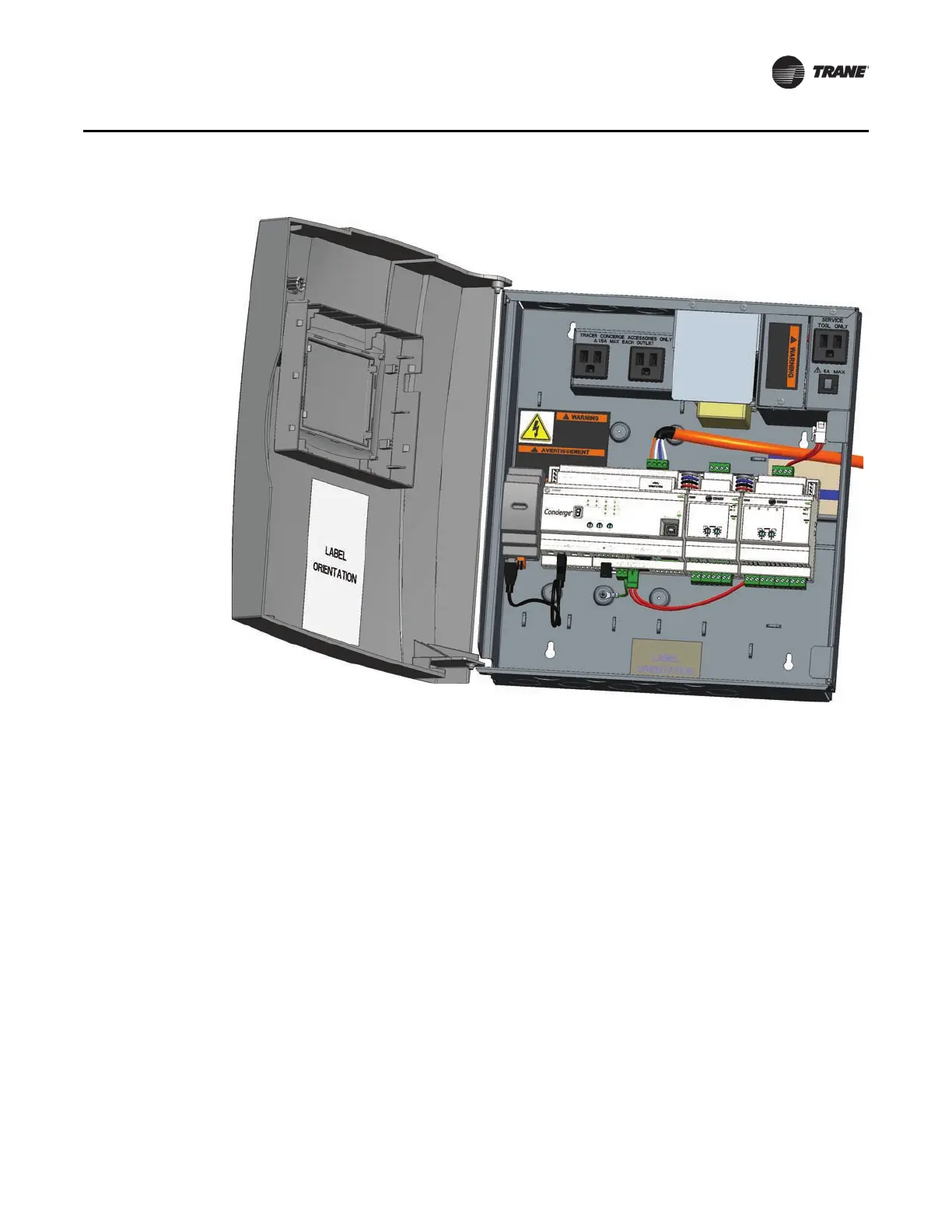

Figure 9. Installing the enclosure door
BAS-SVN040B-EN 15
Installation
3. Align the hinge pegs on the door with the hinge holes on the enclosure and gently lower the
door until it rests securely in the hinge holes.
4. Verify that the door swings freely on the hinges and that the magnetic latches hold the door
securely when it is closed.
