Trane Tracer Concierge BMTC015ABC012000 - Install Enclosure Door

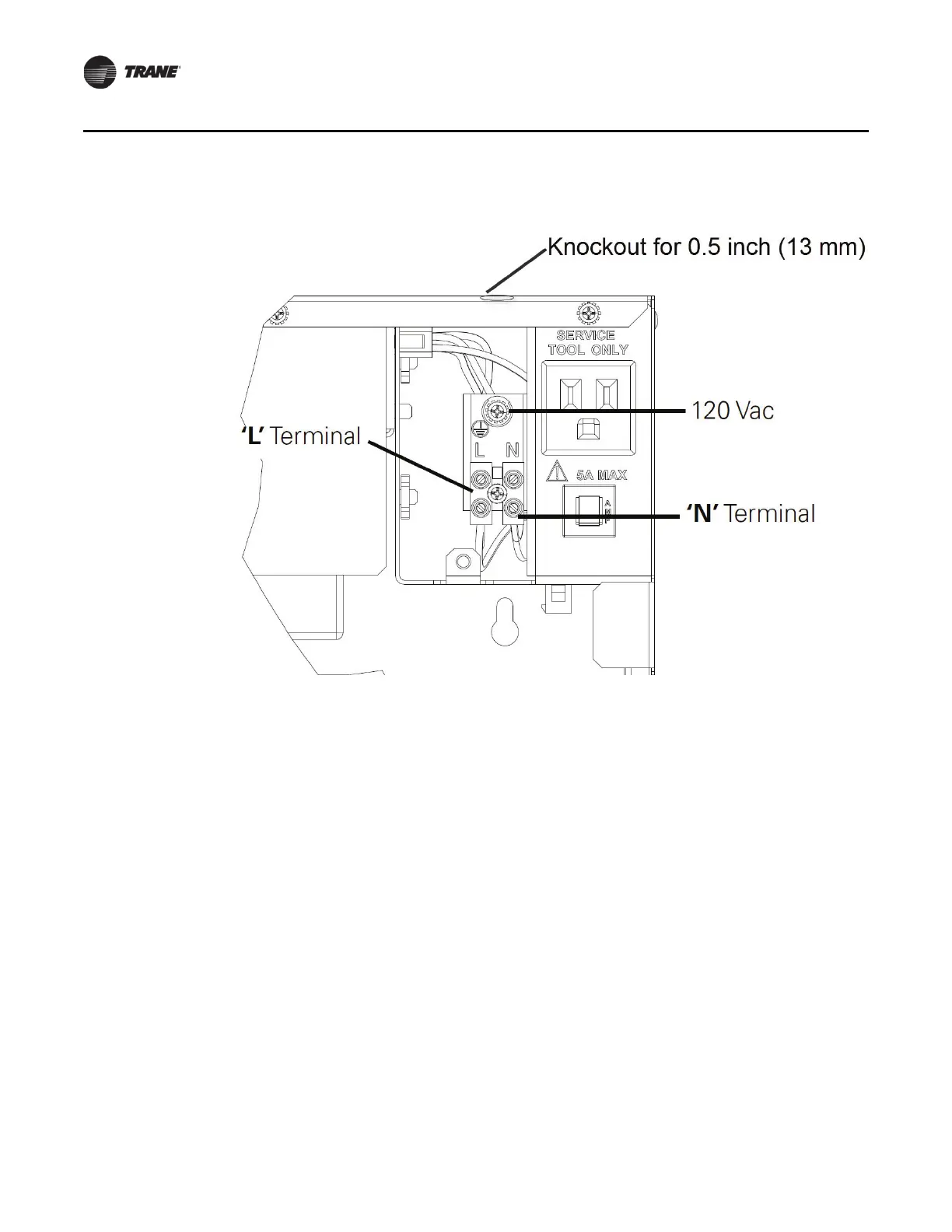

Figure 8. AC wiring
14 BAS-SVN040B-EN
Installation
Install Enclosure Door
1. Unpack the door and check for any missing or damaged parts.
2. Position the door at a 90 degree angle from
the enclosure, as shown below.
