Chapter 3 Configuring the Tracer MP580/581
20 CNT-SVP01C-EN

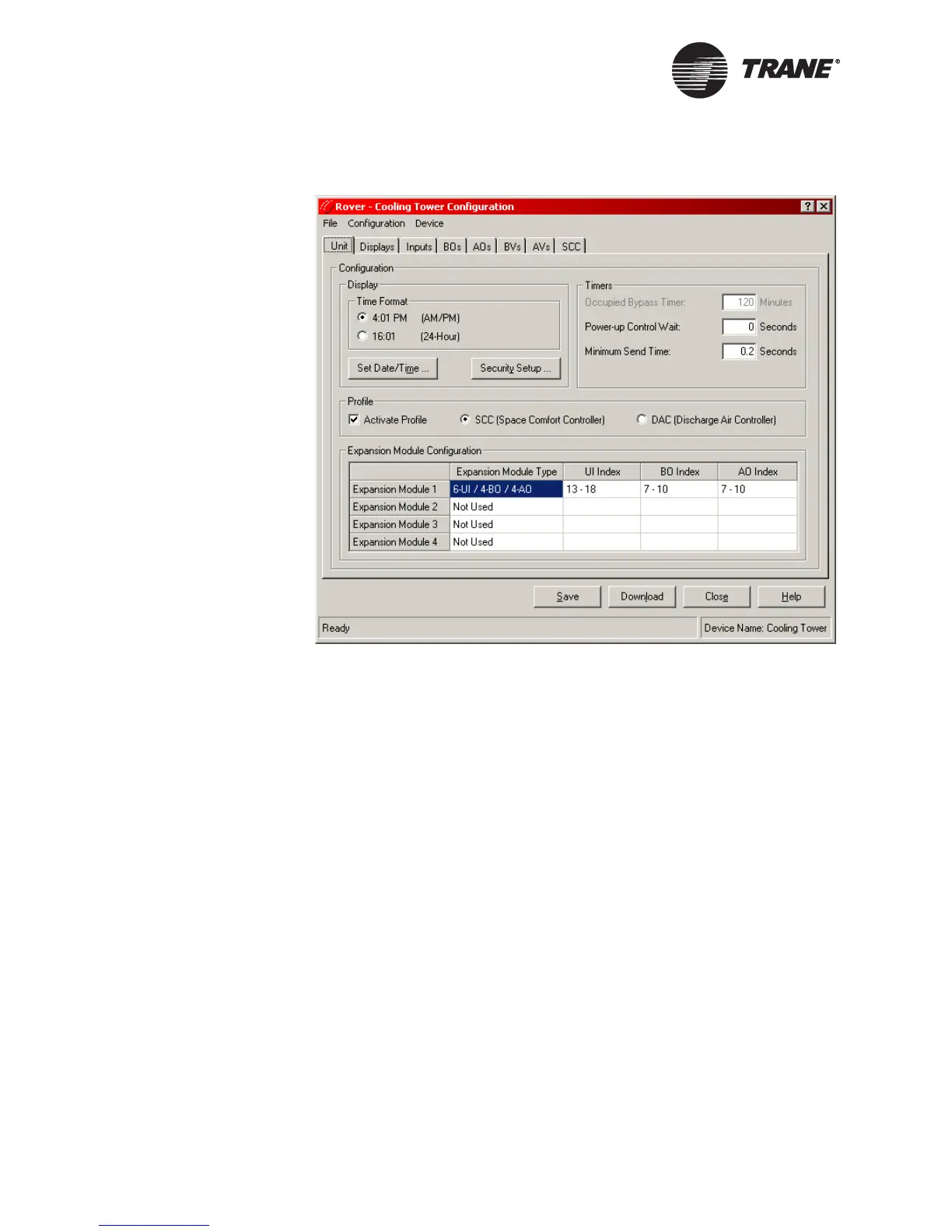

Figure 17. Device configuration Unit tab
The expansion module number is configured by setting the DIP
switch on the module. See the Tracer MP581 Programmable Control-
ler Hardware Installation guide (CNT-SVN01B-EN) for more infor-
mation.
4. Click the Download button to send your changes to the Tracer
MP580/581. (If the Security Logon dialog box appears, log on.) Click
Close to close the Configuration dialog box.
5. See “Configuring inputs” on page 21 and “Configuring outputs” on
page 28 for instructions on configuring inputs and outputs for the
expansion modules.
