Chapter 3 Configuring the Tracer MP580/581
28 CNT-SVP01C-EN
Configuring outputs
The Tracer MP580/581 and expansion modules include binary and analog
hardware outputs.
Configuring binary outputs
You can name binary outputs, specify open and closed descriptors, and set
minimum on and off times.
To set up a binary output:
1. In the Active Device View, click the BOs tab. The status information
for the binary outputs appears.
2. Click the Configuration button. The Configuration dialog box appears
with the BOs tab displayed (Figure 22).

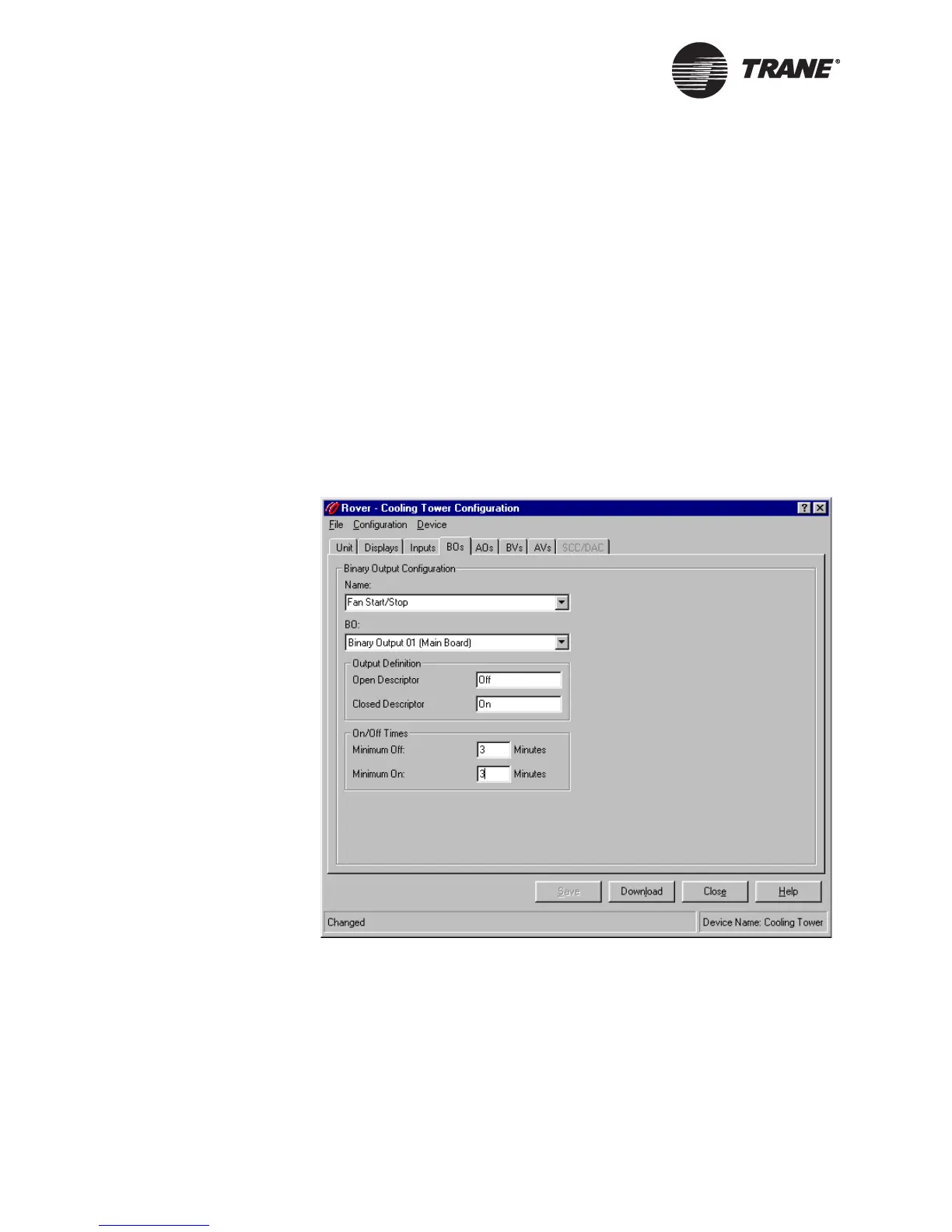

Figure 22. Device configuration BOs tab
3. In the Name list, click the output you want to configure. The configu-
ration information for that output appears in the tab.
You can also select the output by clicking the output number in the
BO list. The Name and BO lists are linked so that the output name
and output number are always displayed together.
