Trane Tracer MP581/AH541 Hardware And Software Installation

Clearances
BMTX-SVN01C-EN 19
Clearances
Make sure that the mounting location has enough room to meet the mini-
mum clearances shown in Figure 8.

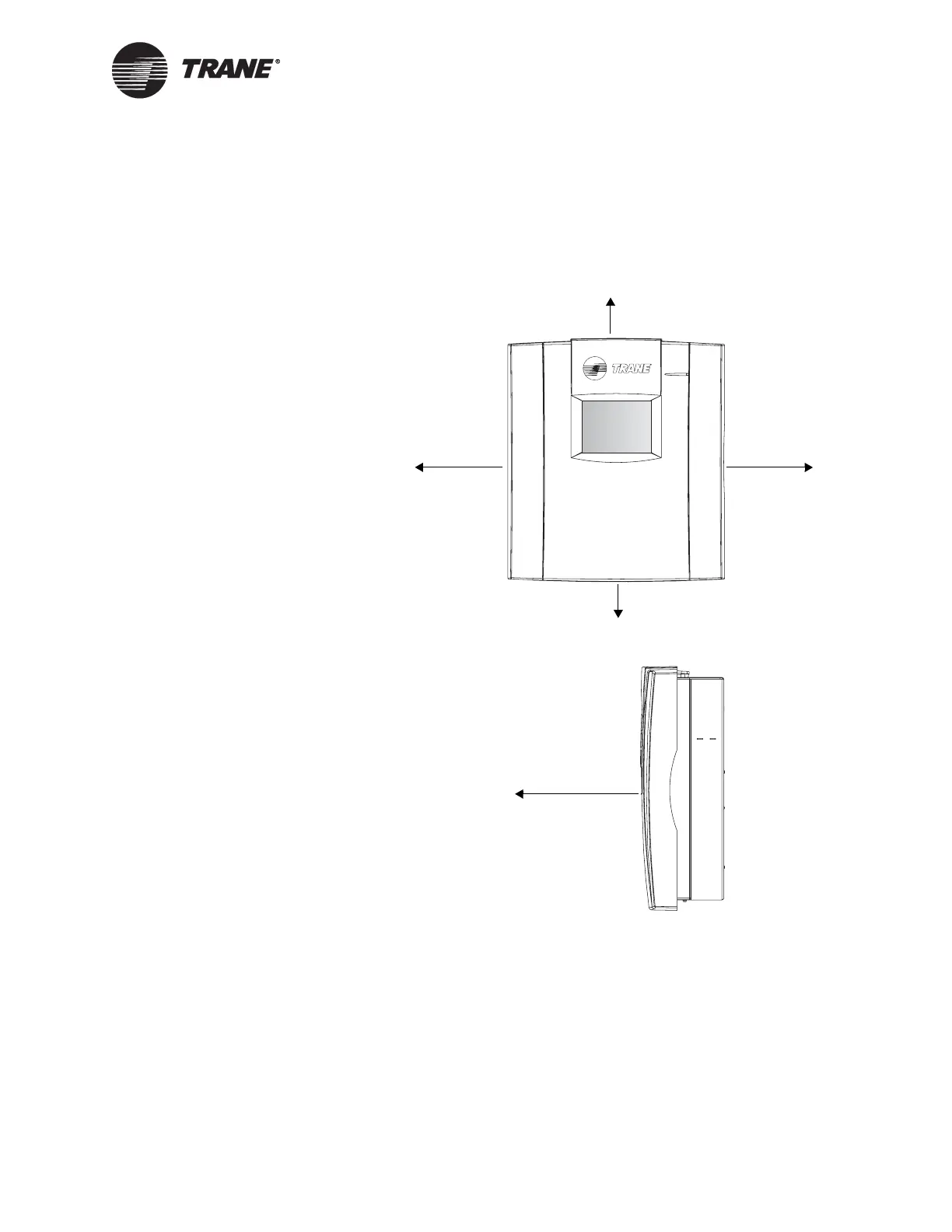

Figure 8. Minimum clearances for the BMTX BCU enclosure
24 in. (60 cm)
to fully open door
12 in. (30 cm)
36 in. (90 cm)
12 in. (30 cm)
50 in. (130 cm) recommended
12 in. (30 cm)
