Chapter 5 UCM communication link wiring and topology
34 BMTX-SVN01C-EN
UCM communication link locations
Figure 17 shows the communication link wiring locations on the BMTX
BCU termination board.

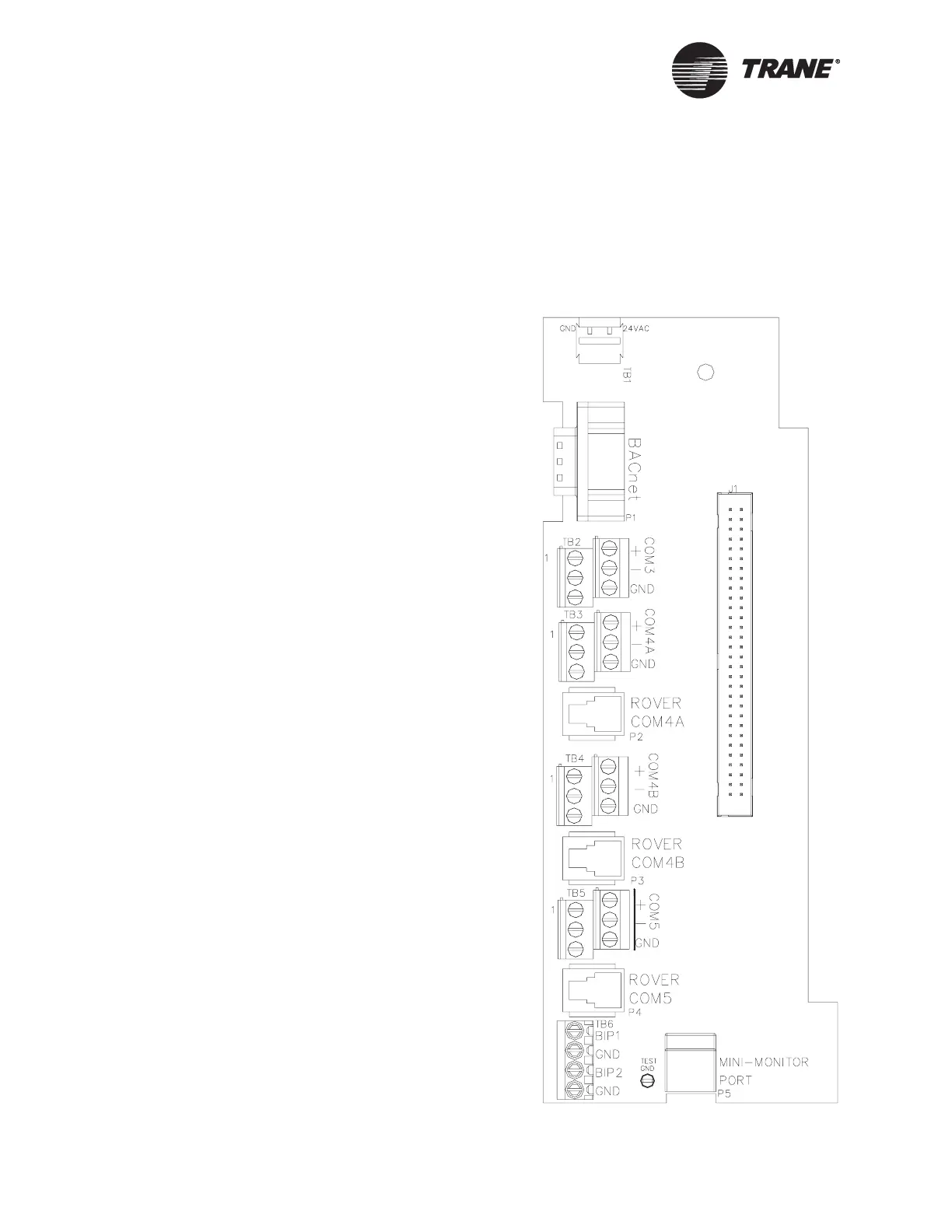

Figure 17. UCM communication link locations
Iso Comm3
{
{
{
Comm4
Comm4
Comm5
{
Termination board
