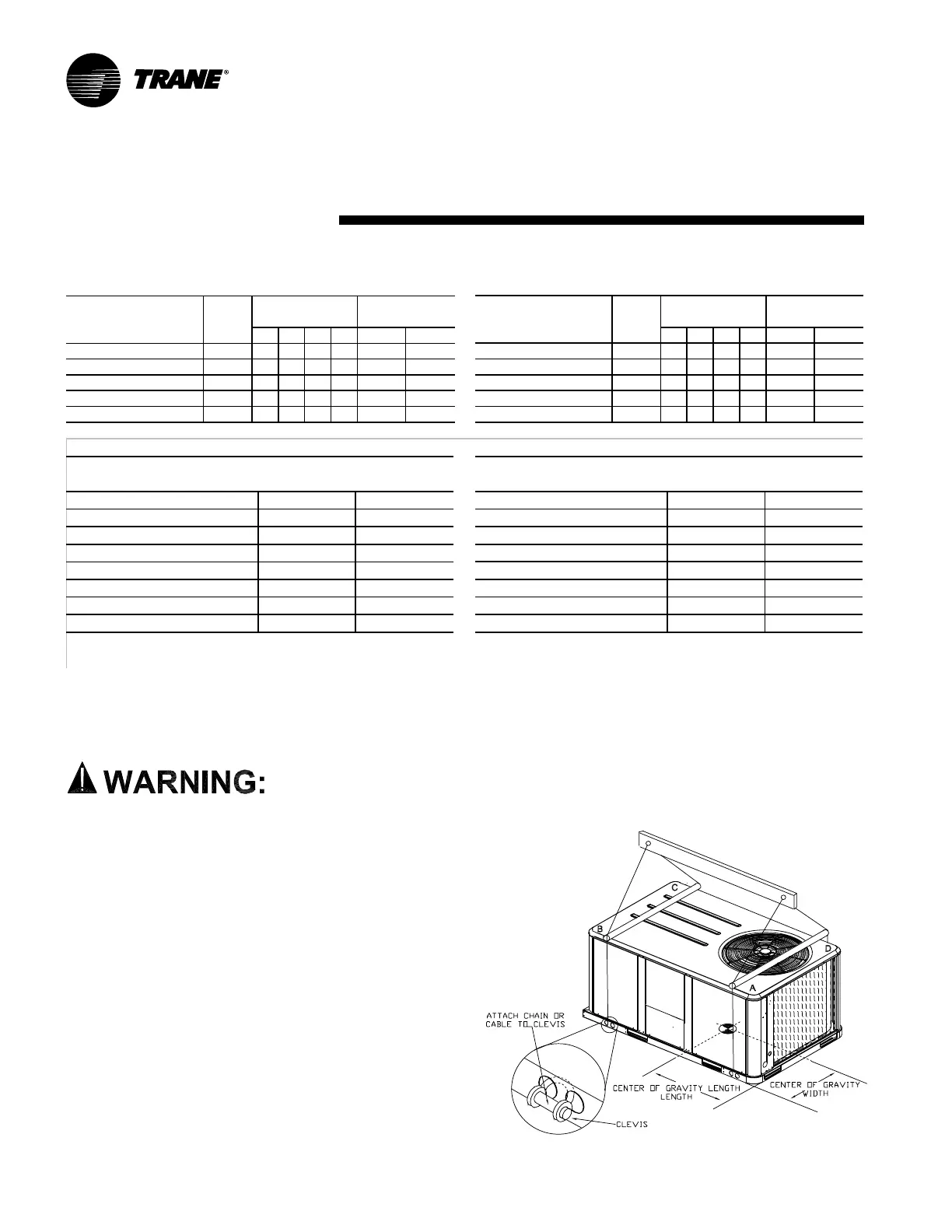

Unit / Accessory Weights
Table 1
Typical Unit Weights & Point Loading Data
Net Ne t
Unit Weight Unit Weight
Model (lbs) A B C D Length Width Model (kg) A B C D Length Width
TSC060AD* 518 165 124 105 124 31 19 TSC060AD* 235 75 56 48 56 790 480
TSC072AD* 718 235 182 128 173 38 22 TSC072AD* 326 107 83 58 78 970 560
TSC090AD* 857 289 222 148 19738 21 TSC090AD* 389 131 101 67 89970 530
TSC102AD* 893294 233 159 207 39 22 TSC102AD* 405 133 106 72 94 990 560
TSC120AD* 982 323 253 178 229 39 22 TSC120AD* 445 146 115 81 104 990 560
Corner Wt. (lbs) of Gravity (In.)
Center Center
Corner Wt. (kg) of Gravity (mm.)
Typical Accessory Weights
Accessory 5 Ton 6 - 10 Tons Accessory 5 Ton 6 - 10 Tons
Economizer 26 36 Economizer 12 16
Barometric Relief 7 10 Barometric Relief 3 5
Motorized Outside Air Damper 20 30 Motorized Outside Air Damper 9 14
Manual Outside Air Damper 16 26 Manual Outside Air Damper 7 12
Roof Curb 70 115 Roof Curb 32 52
Oversized Motor 5 8 Oversized Motor 2 4
Coil Guards 12 20 Coil Guards 5 9
Hinged Doors 10 12 Hinged Doors 5 5
NOTES:
(1) Net w eight should be added to unit w eight w hen ordering factory-installed accessories.
Net Weights (kg)
1
Net Weights lbs
1
Figure 3
Rigging and Center-of-Gravity Data
LIFTING AND MOVING INSTRUCTIONS!
DO NOT USE CABLES (CHAINS OR SLINGS) EXCEPT AS
SHOWN. OTHER LIFTING ARRANGEMENTS MAY CAUSE
EQUIPMENT DAMAGE OR SERIOUS PERSONAL INJURY.
EACH OF THE CABLES (CHAINS OR SLINGS) USED TO LIFT
UNIT MUST BE CAPABLE OF SUPPORTING THE ENTIRE
WEIGHT OF THE UNIT.
LIFTING CHAINS (CABLES OR SLINGS) MAY NOT BE THE
SAME LENGTH. ADJUST AS NECESSARY FOR EVEN LEVEL
LIFT.
USE SPREADER BARS AS SHOWN IN DIAGRAM. REFER TO
TABLE 1 FOR UNIT WEIGHT.
