Trane TSC060 - Belt Tension Gauge

T_C-IOM-2A34

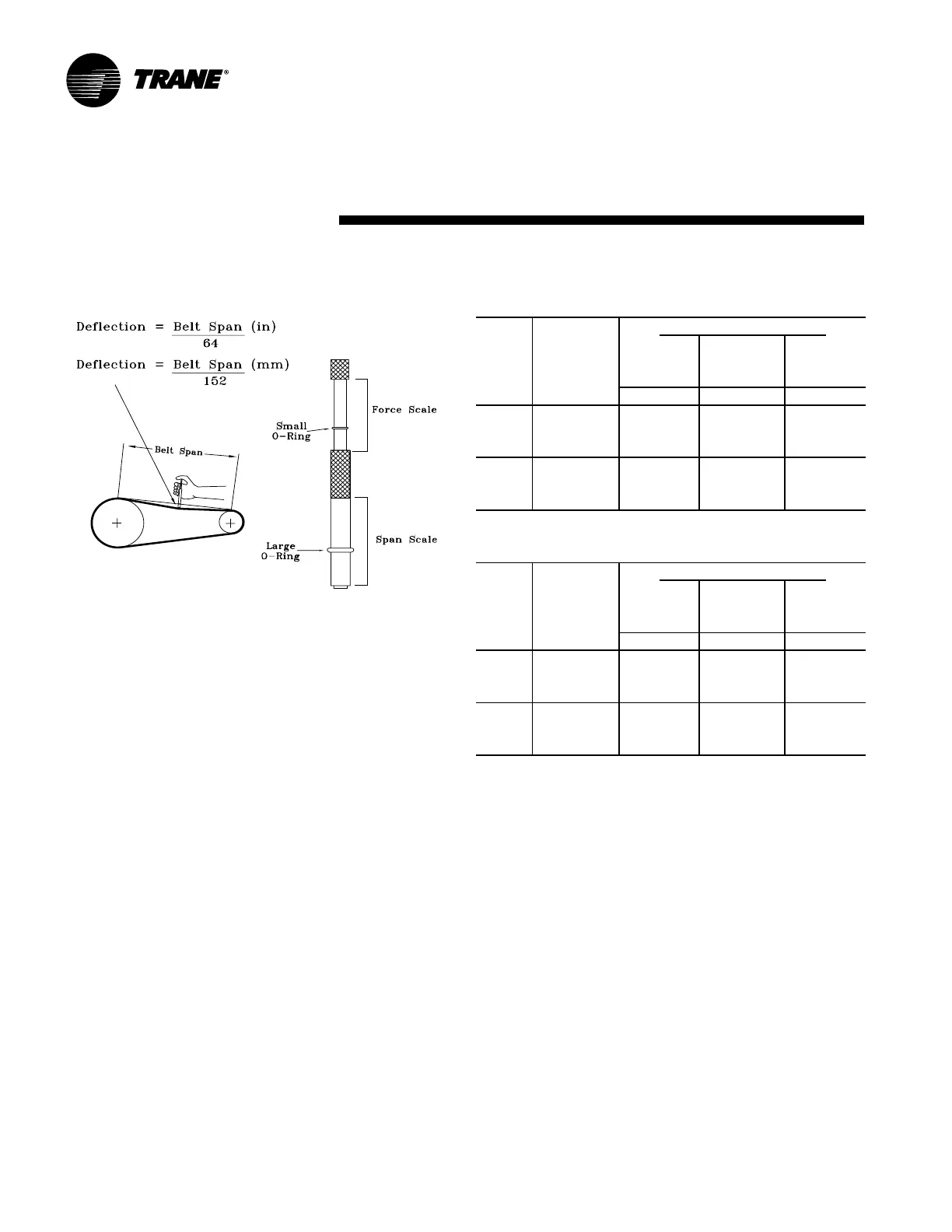

Figure 7
Belt Tension Gauge
Maintenance
Table 6
Belt Tension Measurement and Deflection Ranges
Deflection Force (Lbs.)
Belts Super Steel Cable
Cross Small P.D Gripbelts Gripnotch Gripbelts
Section Range
(in)
Min. Max. Min. Max. Min. Max
3.0 - 3.6 3 4 1/2 3 7/8 5 1/2 3 1/4 4
A
3.8 - 4.8 3 1/2 5 4 1/2 6 1/4 3 3/4 4 3/4
5.0 - 7.0 4 5 1/2 5 6 7/8 4 1/4 5 1/4
3.4 - 4.2 4 5 1/2 5 3/4 8 4 1/2 5 1/2
B
4.4 - 5.6 5 1/8 7 1/8 6 1/2 9 1/8 5 3/4 7 1/4
5.8 - 8.8 6 3/8 8 3/4 7 3/8 10 1/8 7 8 3/4
Deflection Force (N.)
Belts Super Steel Cable
Cross Small P.D Gripbelts Gripnotch Gripbelts
Section Range
(mm)
Min. Max. Min. Max. Min. Max
13.3 - 16.0 13.3 20.0 17.2 24.5 14.5 17.8
A
16.9 - 21.4 15.6 22.2 20.0 27.8 16.7 21.1
22.0 - 31.1 17.8 24.5 22.2 30.6 18.9 23.4
15.1 - 18.7 17.8 24.5 25.6 35.6 20.0 24.5
B
19.6 - 24.9 22.8 31.7 28.9 40.6 25.6 32.3
25.8 - 39.1 28.4 38.9 32.8 45.0 31.1 38.9
(in) (in) (in)
(mm) (mm) (mm)
