T_C-IOM-2A14
Installation

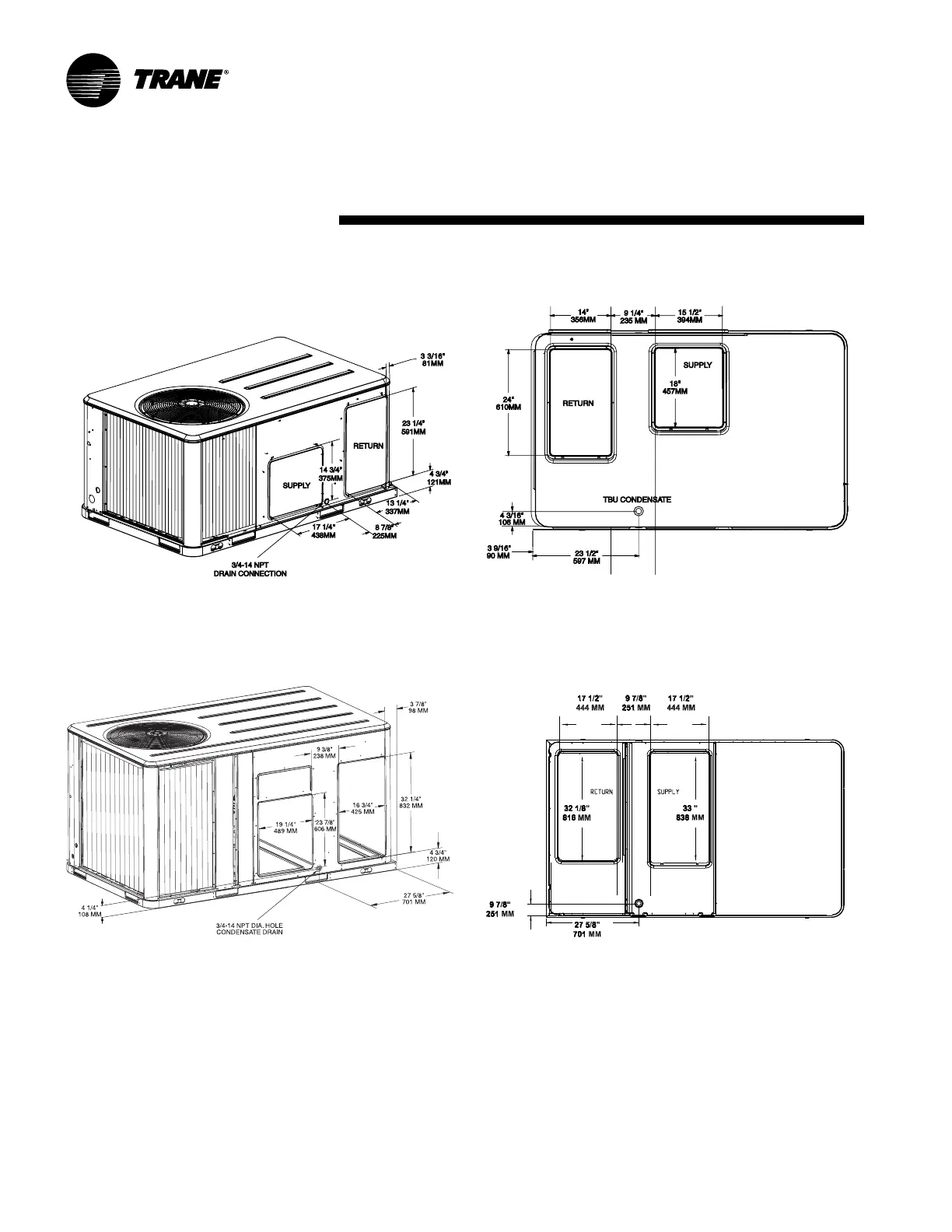

Figure 4
TSC060AD
Horizontal Unit Supply & Return Air Opening
TSC072AD-120AD
Downflow Unit Supply & Return Air Openings
Supply
Return
TSC060AD
Downflow Unit Supply & Return Air Opening
TSC072AD-120AD
Downflow Unit Supply & Return Air Openings
