Installation
Space Temperature Averaging
ReliaTel™
Space temperature averaging is accomplished by wiring a
number of remote sensors in a series/parallel circuit.
Using the BAYSENS016* or BAYSENS017*, at least four
sensors are required to accomplish space temperature averag-

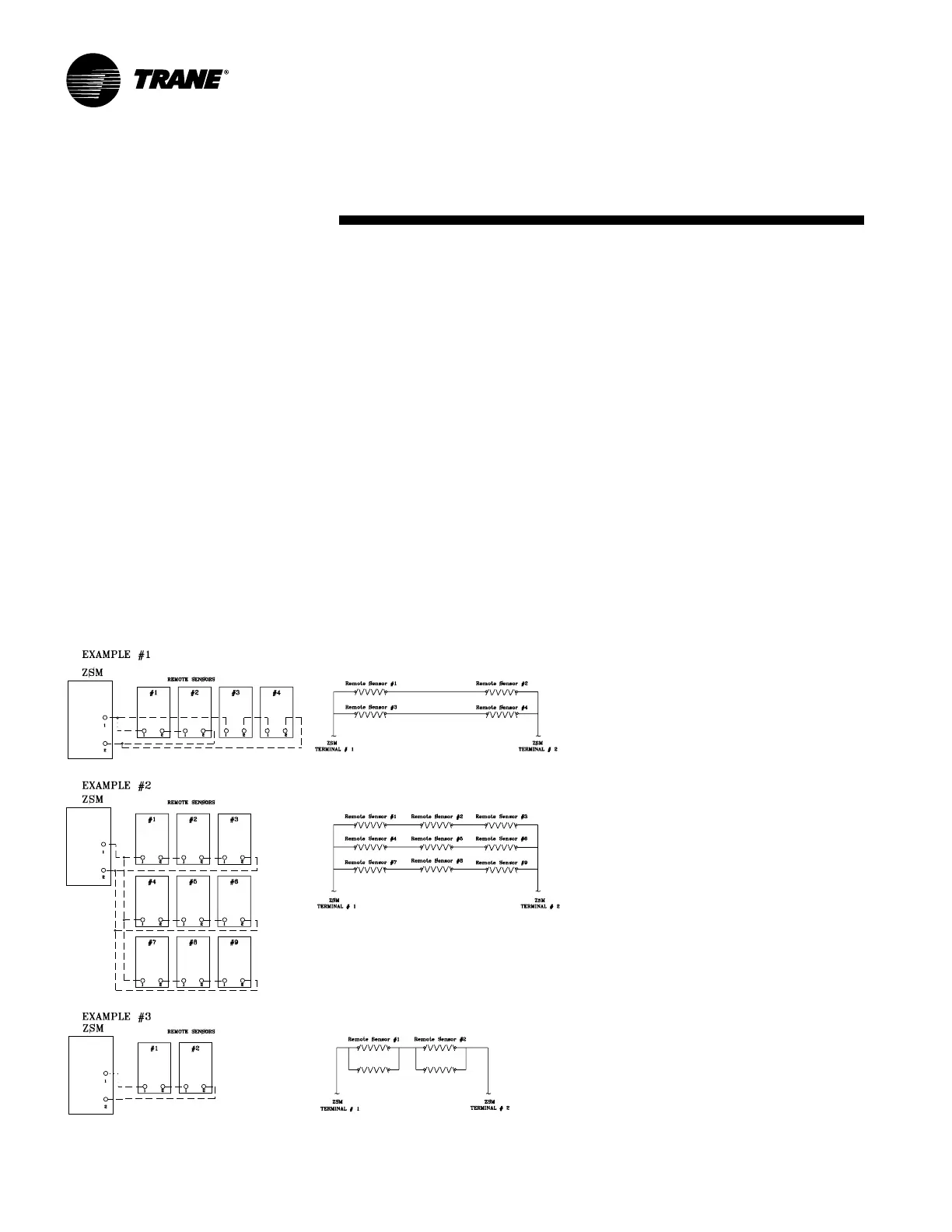

ing. Example #1 illustrates two series circuits with two sensors in
each circiut wired in parallel. The square of any number of re-
mote sensors required. Example #2 illustrates three sensors
squared in a series/parallel circuit. Using BAYSENS032*, two
sensors are required to accomplish space temperature averag-
ing. Example #3 illustrates the circuit required for this senor.
Table 4 lists the temperature versus resistance coefficient for all
sensing.
