Dimensional Data

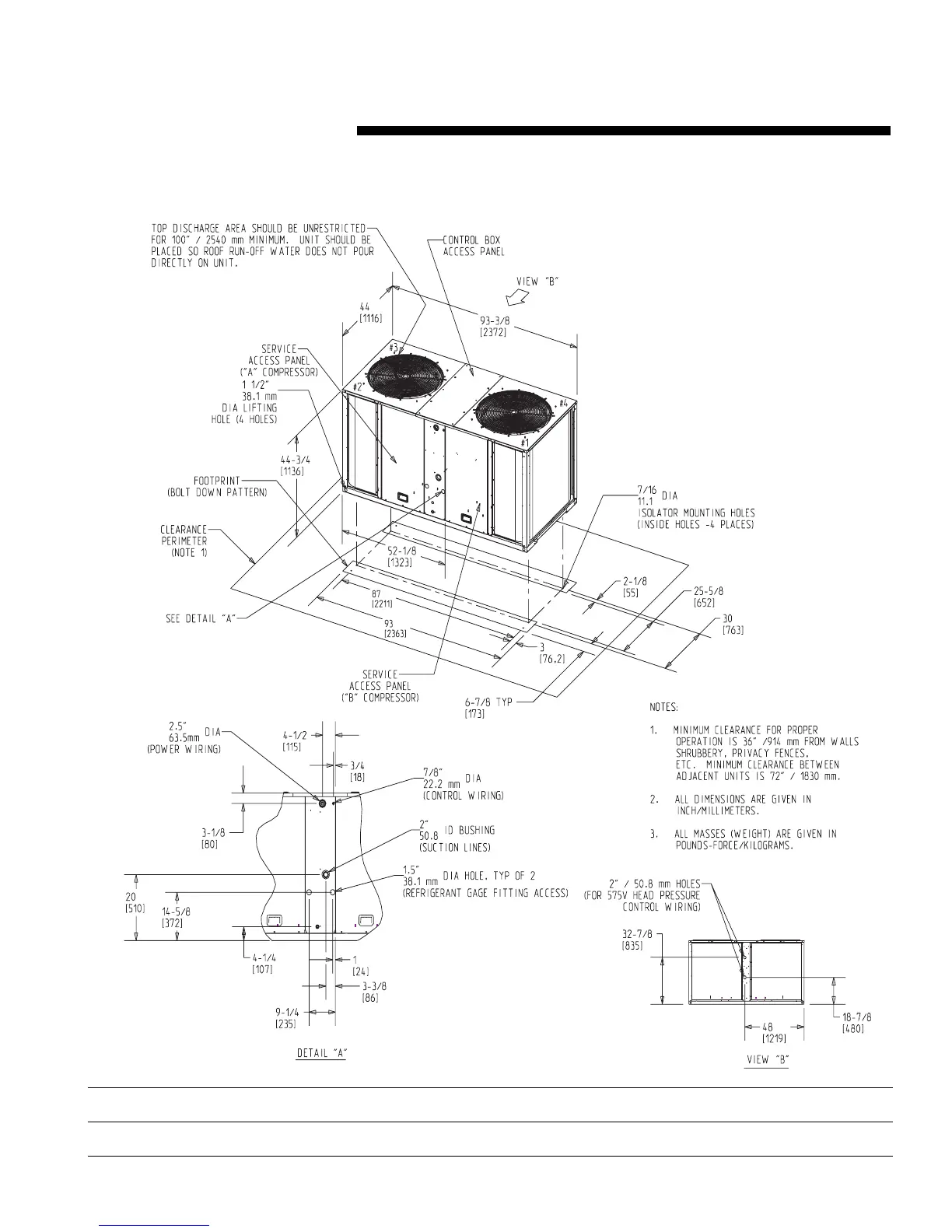

Figure 1. TTA200F, TTA240F, Dimensional Data, Connection Location, Clearances, Corner Weights
APPROXIMATE CORNER WEIGHT (MASS)
TOTAL UNIT
WEIGHT
TOTAL SHIPPING
WEIGHTMODEL NO. #1#2#3#4
TTA240F---A 292 lbs 181 lbs 222 lbs 140 lbs 835 lbs 920 lbs
TTA200FD--A 132 kg 82 kg 101 kg 64 kg 379 kg 418 kg
