Trane TWE040CA - Electrical Data; System Wiring Diagram

28 TWE5-PRC001-EN-10-15-99
Electrical
Data

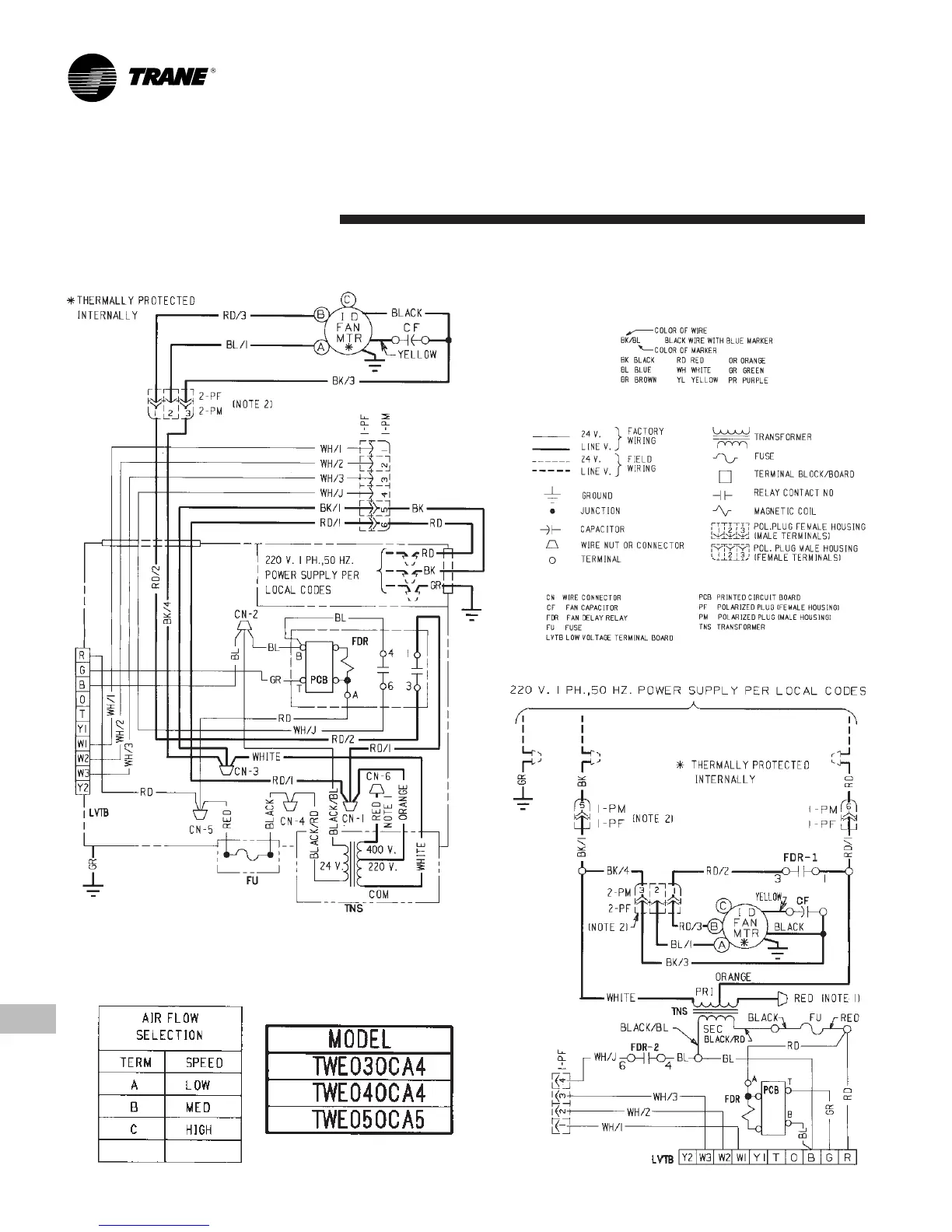

System Wiring Diagram
NOTES:
1. DO NOT USE REQ TRANSFORMER LEAD IN THIS APPLICATION
2. ACCESSORY KIT BAY24X038 MAY BE USED WHEN AUTOMATIC SPEED
CHANGE FOR HEATING/COOLING OPERATION IS DESIRED.
Legend
Symbols
