22 IPB-99-7-EN-10-6-99
Dimensions

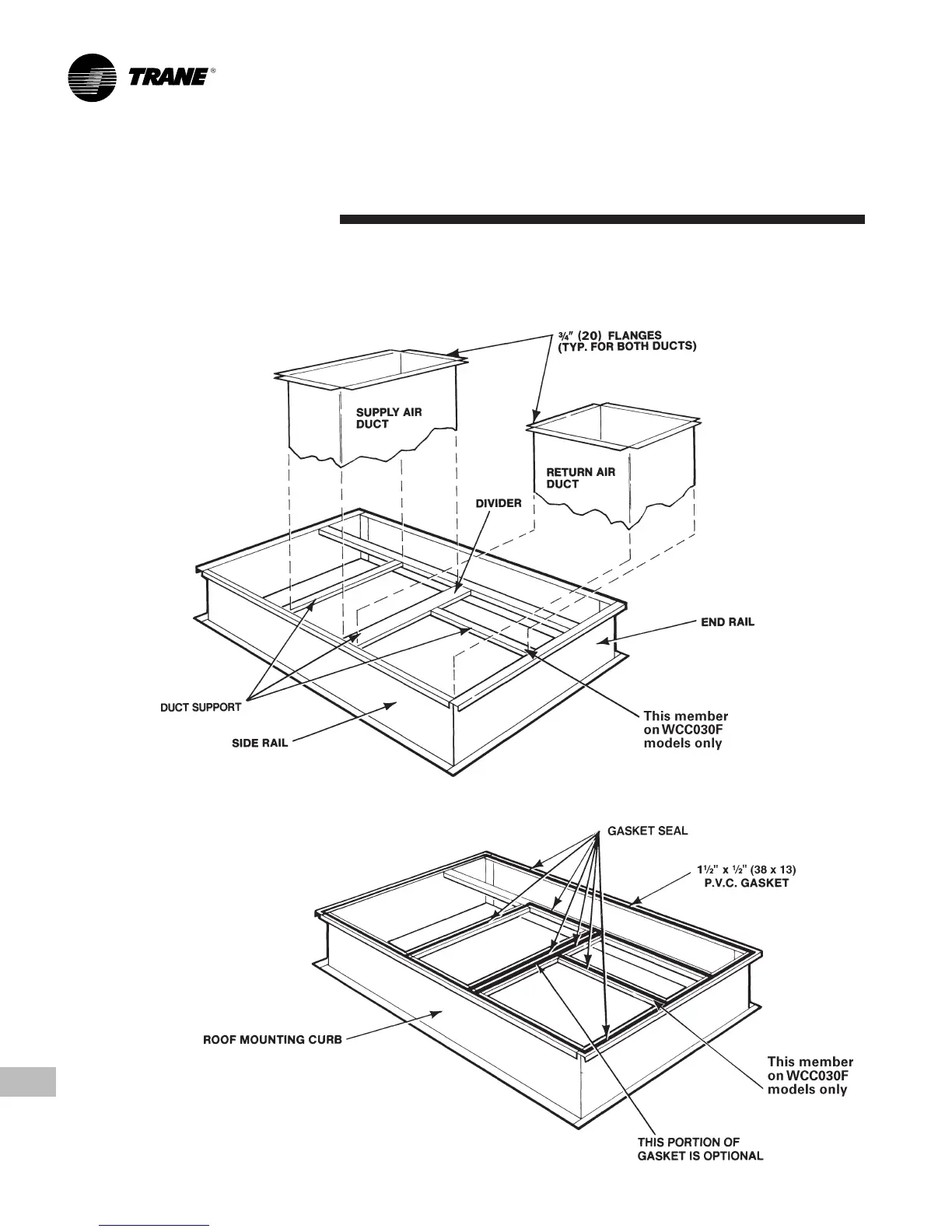

P.V.C. Rubber Gasket Position on BAYCURB030A for Unit Placement — WCC030-050F Units
ALL DIMENSIONS ARE IN INCHES (MM)
NOTES:
1. OVERLAP AND POSITION JOINTS IN P.V.C. RUBBER
GASKET.
2. AIR SEALS – APPLY P.V.C. RUBBER LAST TO INSURE
THERE IS ADEQUATE P.V.C. FOR THE WATER SEAL.
3. USE TYPICAL SEALING METHODS TO PREVENT AIR
DUCT LEAKAGE AT CURB-DUCT JOINT.
Field Fabricated (Side X Side) Ducts — WCC030-050F Units
Installed from Above Mounting Curb
ALL DIMENSIONS ARE IN INCHES (MM)
