Trane WCC030 - Front Outline Dimensions; WCC030-050 F Front Outline Drawing

24 IPB-99-7-EN-10-6-99
Dimensions

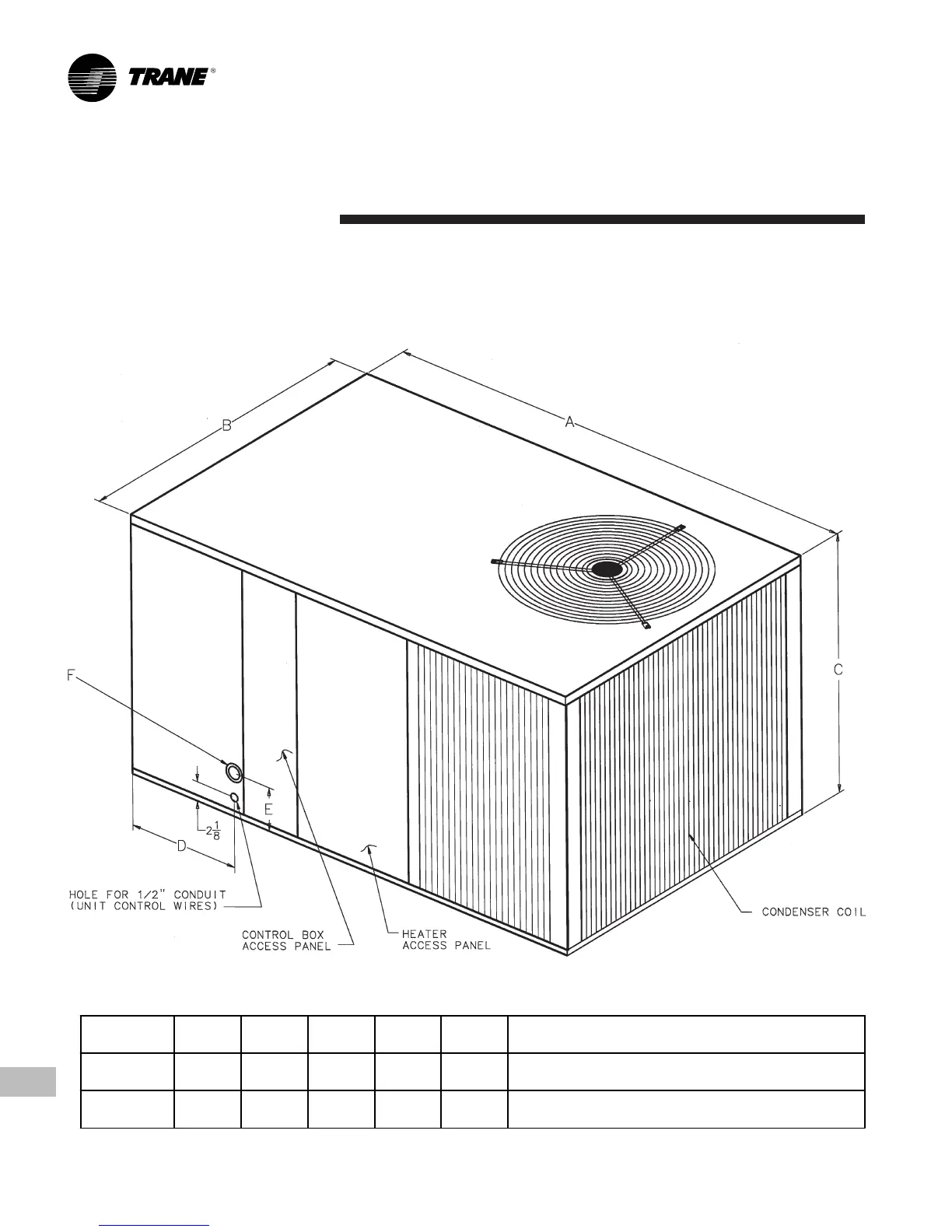

WCC030-050F OUTLINE DRAWING — Front
ALL DIMENSIONS ARE IN INCHES (MM)
From Dwg. 21D729945 Rev. 5
MODELABCDE F
WCC030F
55-1/4
(1405)
36
(915)
29-3/16
(740)
12-15/16
(330)
4-7/8
(122)
KNOCKOUTS FOR 3/4" (20) AND 1-1/4" (32) CONDUIT
WCC040F
WCC050F
64-5/16
(1634)
45
(1145)
33-3/8
(850)
14-13/16
(375)
4-7/8
(122)
KNOCKOUTS FOR 3/4" (20) AND 1-1/2" (38) CONDUIT
