General Information
Dimensions

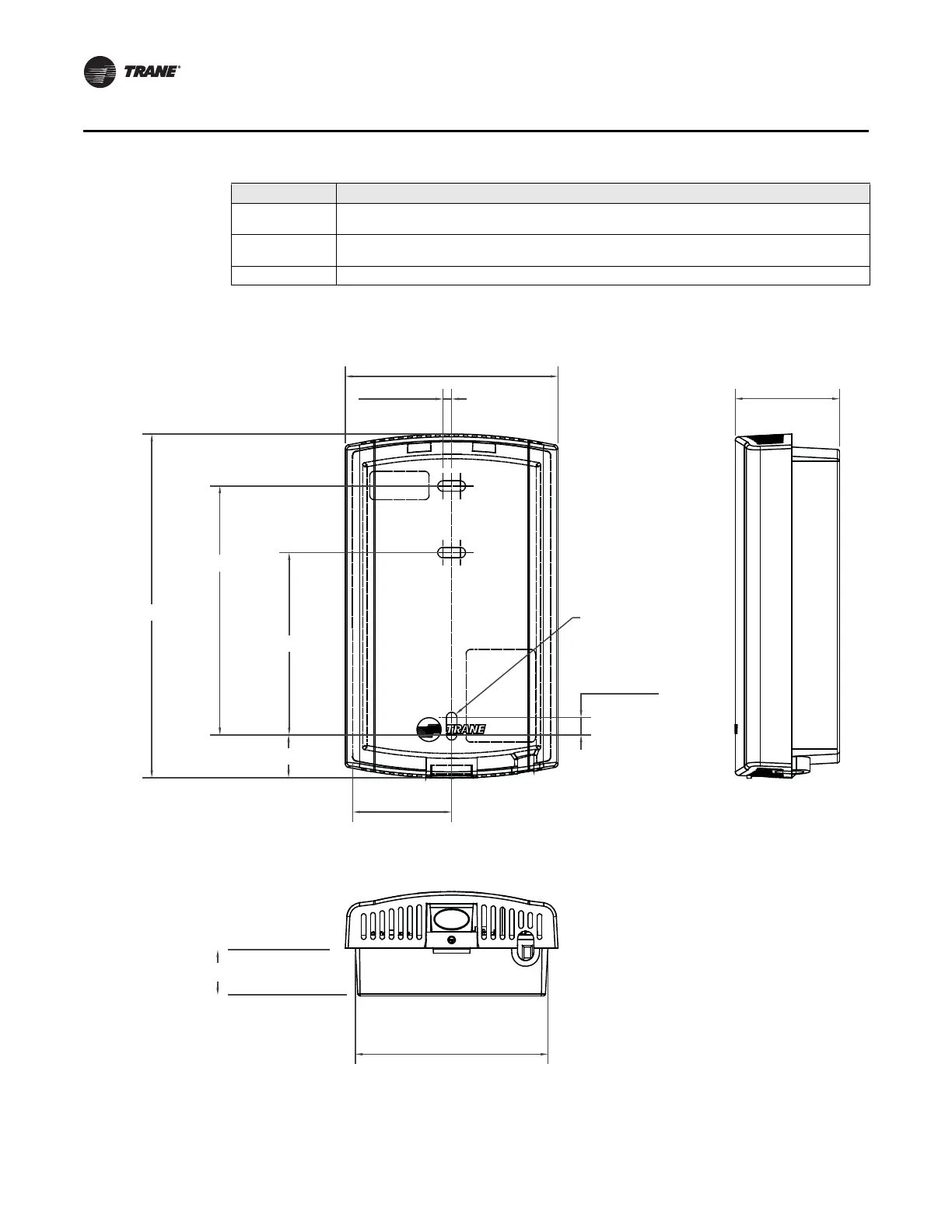

The dimensions of the WCI enclosure are as follows:
X13790903
Bulk version of X13790901, no wiring harness, no installation instructions. For factory ordering
in bulk.
X13790904
Bulk version of X13790902, no wiring harness, no installation instructions. For factory ordering
in bulk.
X13641194 Outdoor enclosure to protect WCI from harsh environments or wet indoor environments.
Part number Description
0.650 in. (16.50 mm)
2.896 in. (73.55 mm)
3.386 in. (86.00 mm)
2.480 in. (63.00 mm)
1.344 in. (34.14 mm)
0.236 in. (6.00 mm)
1.419 in. (36.03 mm)
4.677 in. (118.80 mm)
0.118 in. (3.00 mm)
2.620 in. (66.55 mm)
0.581 in. (14.76 mm)
R0.71 in. (R1.80 mm) TYP
