Chapter 7: Operation
7.1 Display
TI-1500B utilize a 6 digit 7-segment LED display to show the weight and system
information. Table 7-1 summarizes both types of display annunciators.

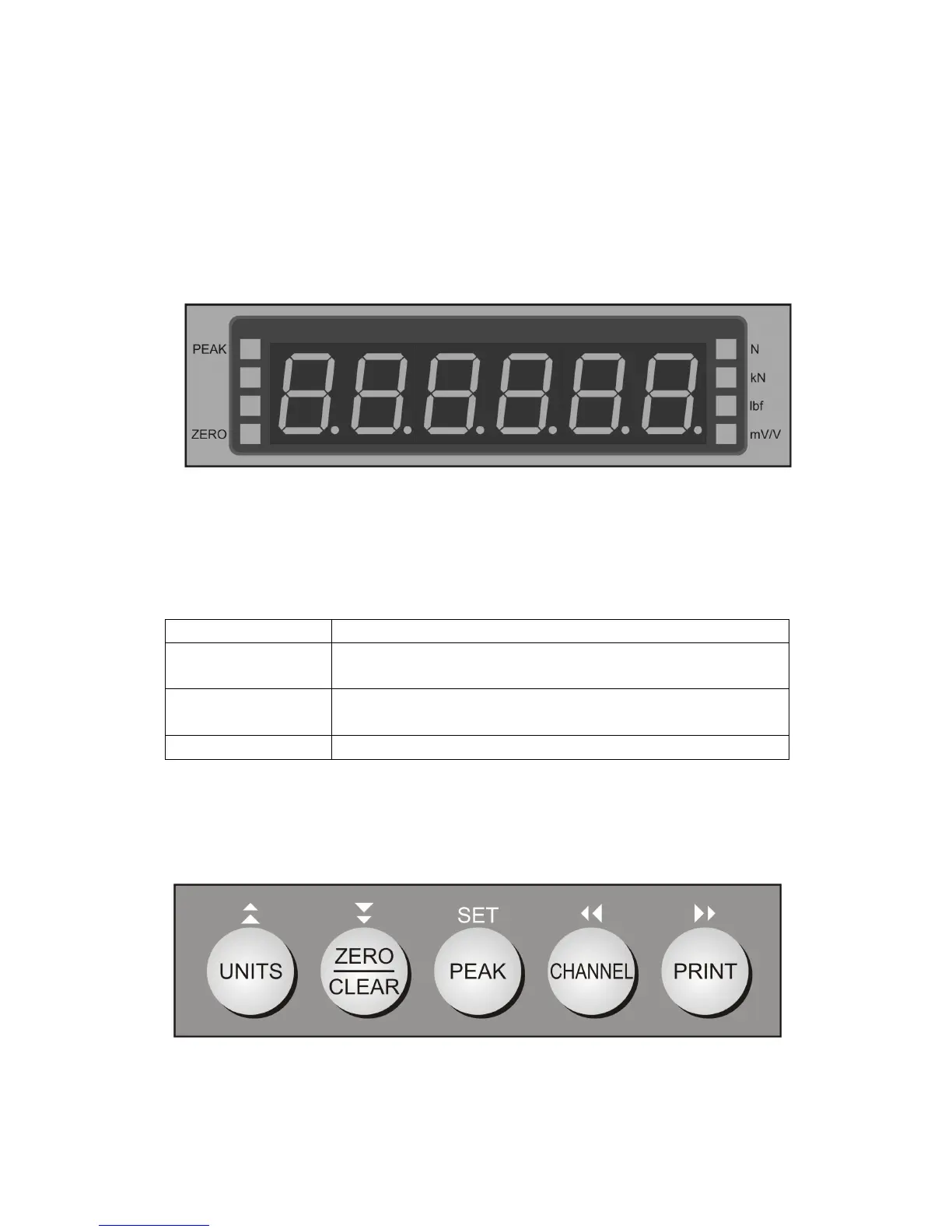

Figure 7-1: TI-1500B LED Display
7.1.1 LED Display
Figure 7-1 shows the display detail of the LED.
LED Annunciator
Meaning
ZERO
This light is active when ever the displayed weight is within zero
range.
PEAK
Keeping the peak value. When the weight is less than 2% of full
capacity, this function is unable.
N, kN, LBF, MV/V
Indicates the unit of the displayed weight.
7.2 Keyboard
TI-1500B is composed of five function keys. Refer to Figures 7-2 for the overall layout and
key locations.
Figure 7-2: TI-1500B Function Keys Layout
