ENGLISH
29
www.trapp.com.br

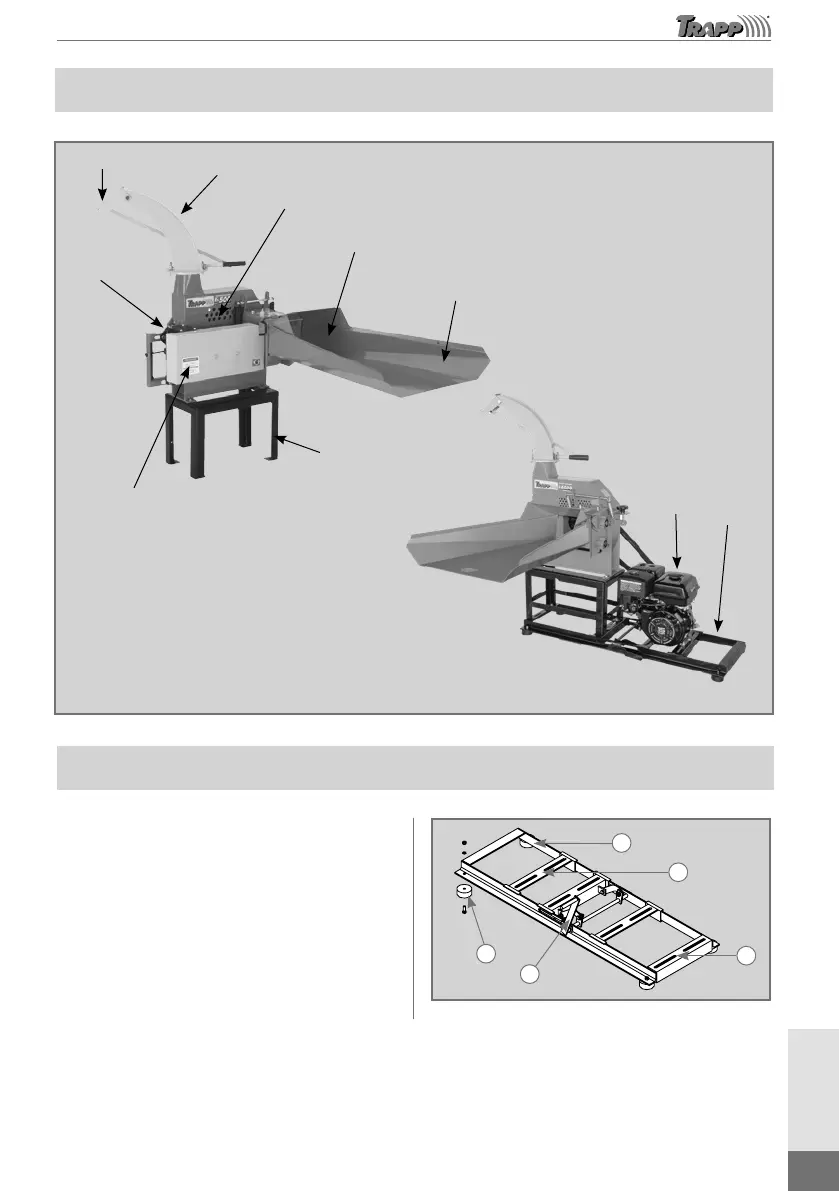

Main Components
Indication table to change
cutting size
Support
Cylinder Feeders
Transmission Box
Disk
Ration Outlet Device
Upper Exit
Ration Feeding
Device
Base
Motor
Image merely illustrative
Universal Base Installation
The universal base is provided with xation
points (1) dimensioned according to the trestle
and to the movable rails to x the motor. Once
the shredder and the motor are placed on the
universal base, align the pulleys.
After that, x the rubber cushions (2) as shown
in the Figure 1. Finally, place the belts which
will have to be stretched with the stretcher (3)
located at the base (4).
Image merely
illustrative
1
1
4
2
3
Figure 1
