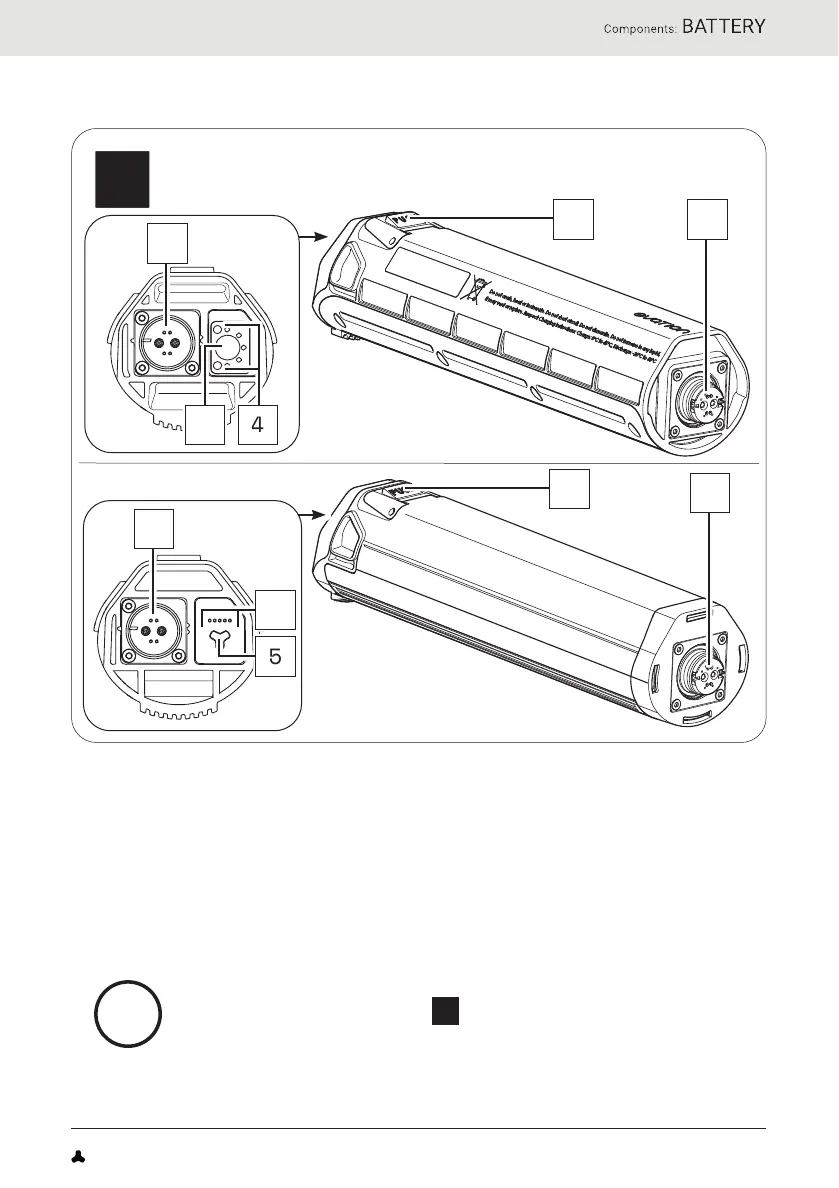

29 DETAILED VIEW & PART DESIGNATIONS: BATTERY
3
45
Battery 250
1 2
2
1
3
5
4
Battery 250 X
D
Part designations
1
→
Pushbutton (battery lock)
2
→
Interface (drivepack)
3
→
Charging socket
4
→
Charge level indicator*
5
→
On/off button
* The charge level indicator of the Battery 250 X is only visible when the
corresponding LEDs are lit, but not, for example, when the battery is switched off.

The numbering 1–5 within this section refers to the individual
parts of the components
D
(battery).
Individual parts of other components illustrated within this
section are additionally marked with the corresponding
component letter.
