2024 Marlin+
10
Motor guard
M5x14
3
3
2
4 Nm
4
3
4 Nm
1
When re-installing the
motor guard make sure
the rubber seals are po-
sitioned outside the bike
frame.
TIP:

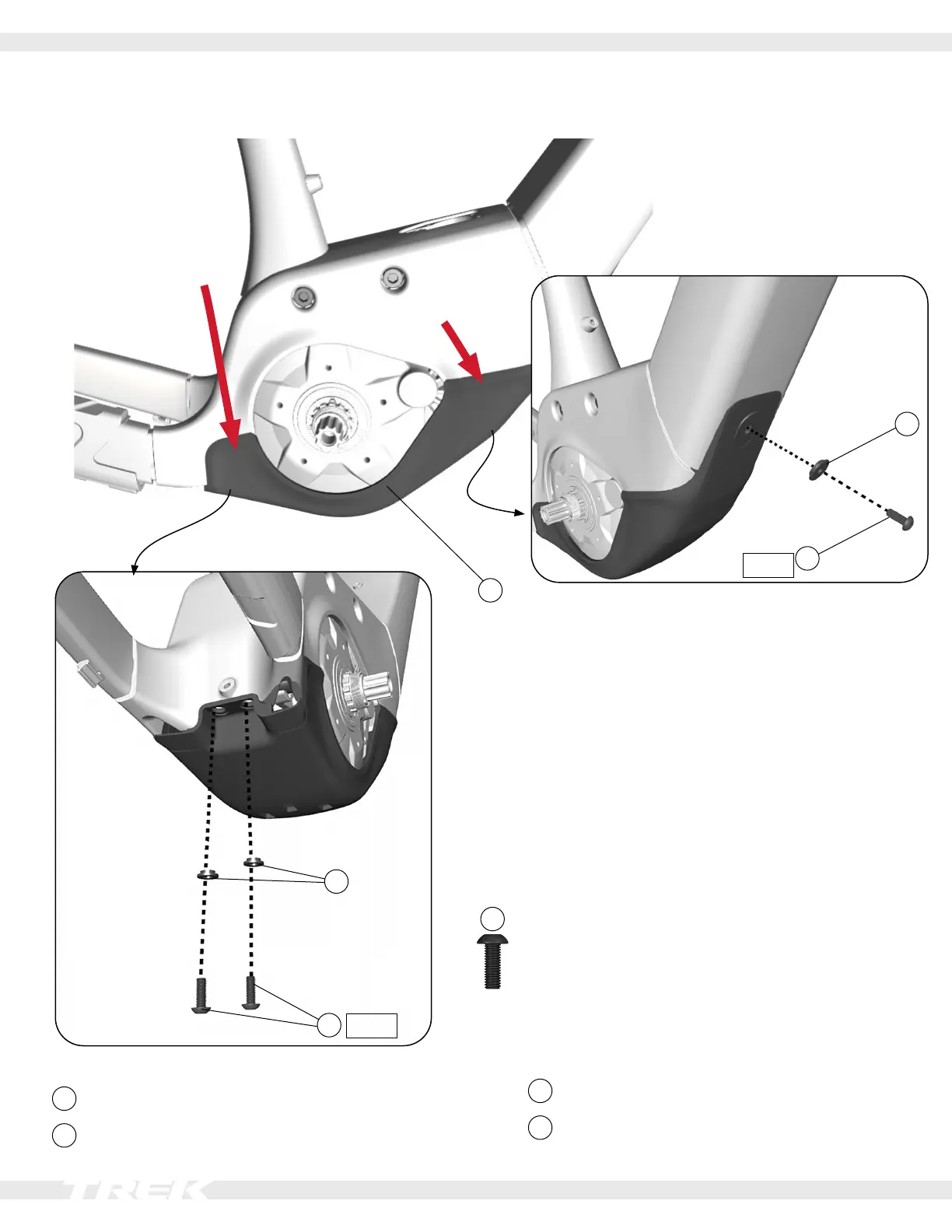

Install the motor guard
Install the front spacer and fastener rst, then install the
rear spacers and fasteners. This will make it easier to
align the front fastener with the threads in the battery.
1
Motor guard – W5306871
2
Hat-style spacers – W5272256
3
Fasteners, M5x14 – W5314651
4
Hat-style spacer – W5315181
