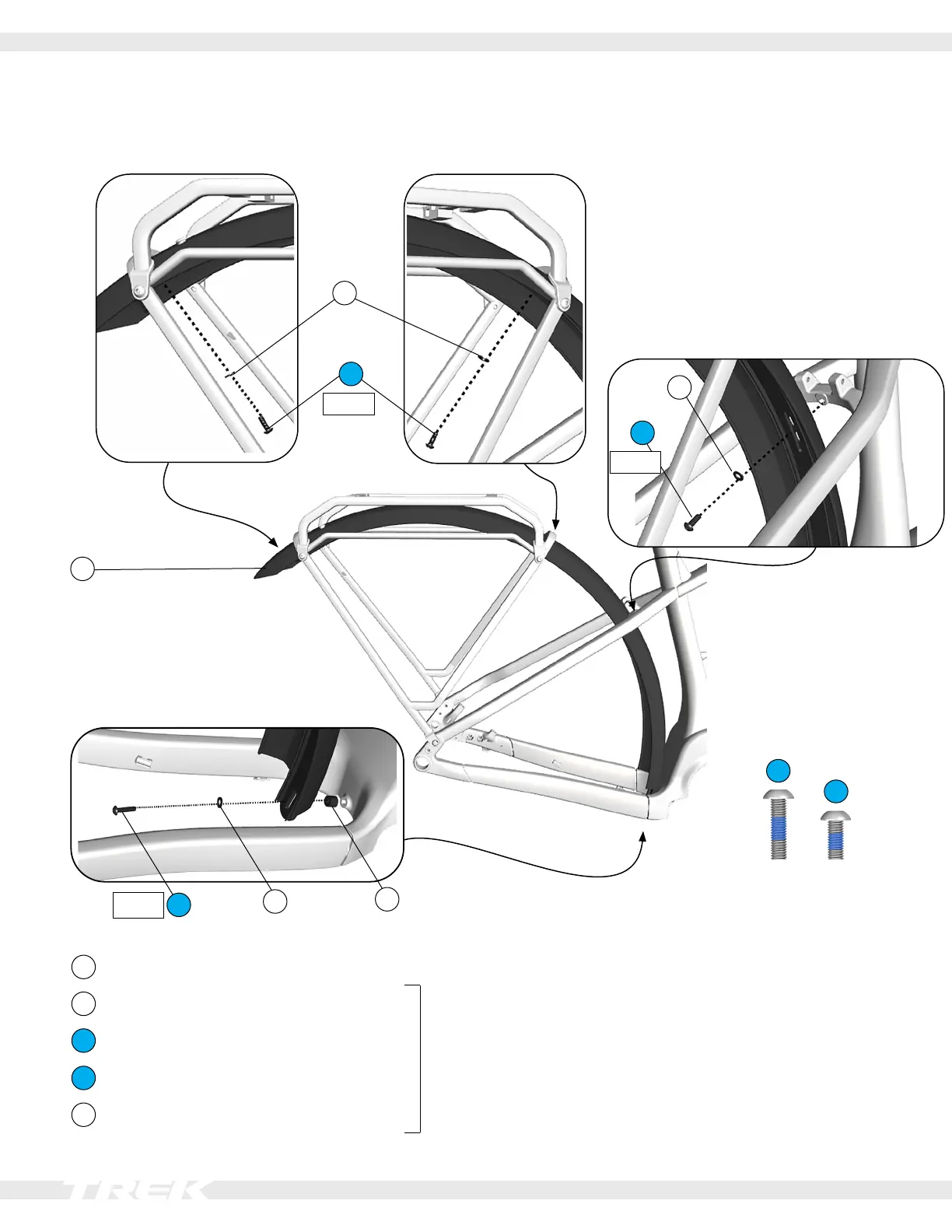

Rear mudguard – 29" wheel
The rear mudguard is sold separately. Proper installation requires the mudguard to be installed with the lower portion of the
rack.
The upper portion of the rack is detachable.
2
2
3
3
4
2
5
4
M5x14
3
M5x20
1
5 Nm
5 Nm
5 Nm
1
Rear mudguard, 29" wheel – W5309614
2
Washers, stainless steel, M5 x 1 mm
– 5315939
3
Fasteners, stainless steel, M5 x 14 mm
4
Fastener, stainless steel, M5 x 20 mm
5
Spacer, aluminium, 7.5 mm
