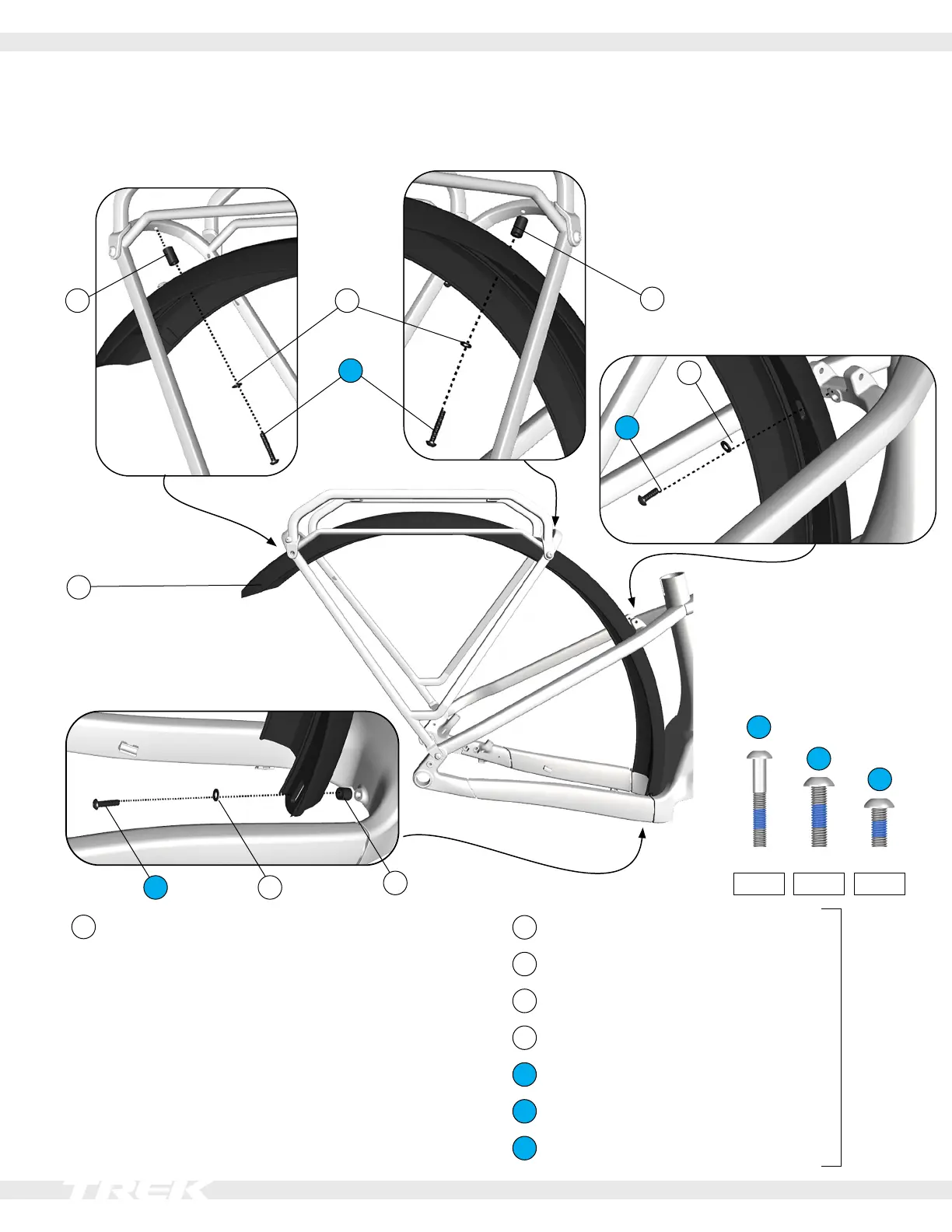

Rear mudguard – 27.5" wheel
The rear mudguard is sold separately. Proper installation requires the mudguard to be installed with the lower portion of the
rack.
The upper portion of the rack is detachable.
2 5
5
6
7
8 5
4
1
3
6
5 Nm
M5x30M5X20
8
5 Nm
M5x14
7
5 Nm
1
Rear mudguard, 27.5" wheel – W5309612
2
Spacer, aluminium, 24.5 mm
– 5315939
3
Spacer, aluminium, 16 mm
4
Spacer, aluminium, 13.8 mm
5
Washers, stainless steel, M5 x 1 mm
6
Fasteners, stainless steel, M5 x 30 mm
7
Fastener, steel, M5 x 14 mm
8
Fastener, stainless steel, M5 X 20 mm
