Trek MARLIN+ 6 - Speed sensor routing; Speed sensor installation

2024 Marlin+
6

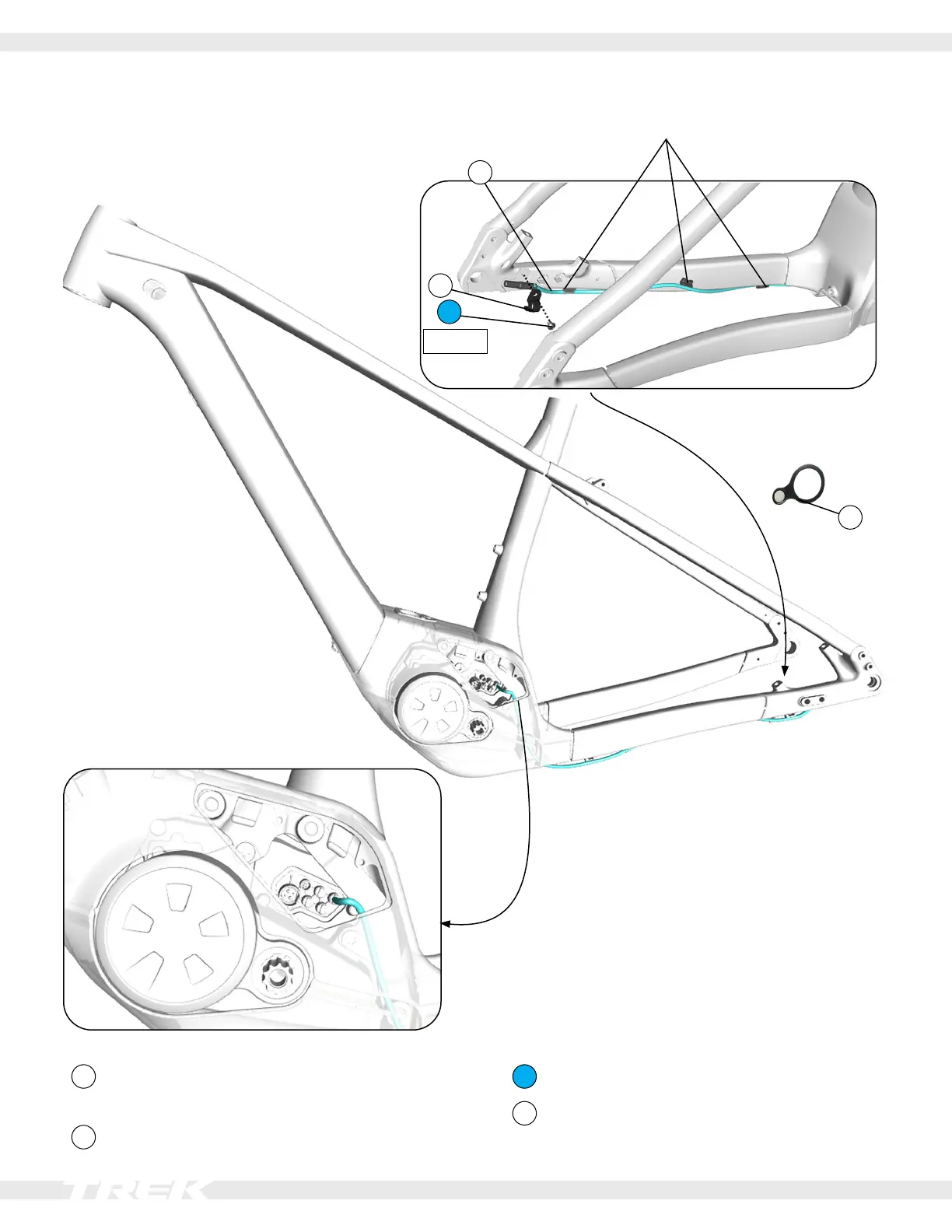

Speed sensor routing
1
2
3
Non-drive side shown. Motor cover removed.
1.5 Nm
Zip ties


4
Refer to the Bosch service manual for instructions
on installing the speed-sensor components.
1
Speed sensor cable:
Bosch part number – EB11.200.011
Trek part number (available in some markets) – 5318757
2
Speed sensor clip, Bosch part number 1270.016.038
3
Fastener, M4x6 mm – W575056
4
Speed sensor magnet – 599404
