Trek MARLIN+ 6 - Frame guards and covers; Chainstay guard installation; Downtube guard installation; Motor access cover installation

2024 Marlin+
8

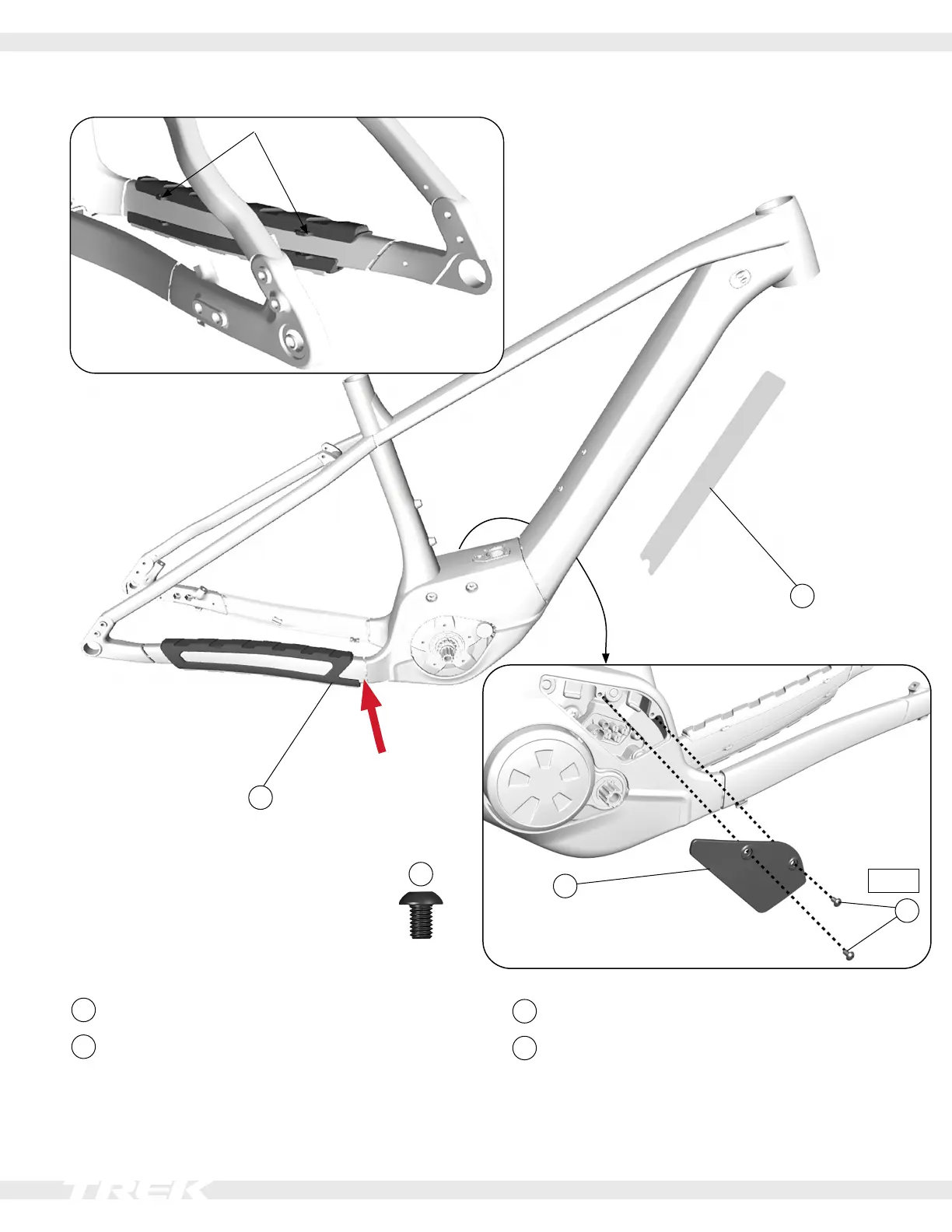

Frame guards and covers
2
1


Non-drive side
3
4
M4x6
4
Zip ties
1.5 Nm
Align the front of the
guard with the weld.
1
Chainstay guard – W5308950
2
Downtube guard – W5312189
Use isopropyl alcohol to clean the frame surface where the
guard is attached. Wait for the alcohol to dry before applying
the guard.
NOTICE: Do not clean the entire frame with isopropyl alcohol.
Isopropyl alcohol could damage the paint.
3
Motor access cover – 5312747
4
Fasteners, M4x6 – W575056
NOTICE: Maximum fastener length is 6 mm. Longer
fasteners could damage the brake hose and rear shift
housing.
