COMBI 651

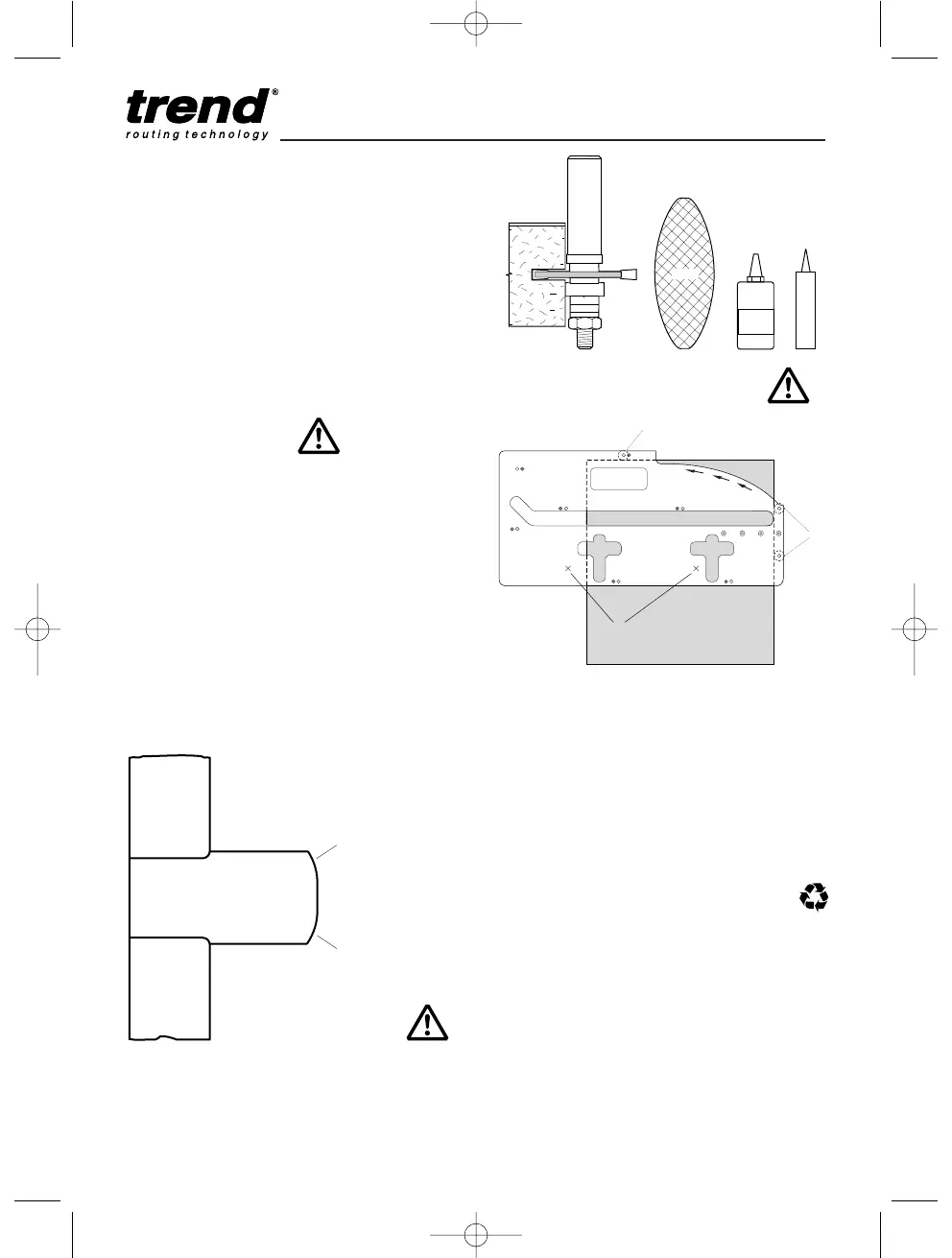

Sealing the Joint
The cut edges of the joint should be coated with
a water-resistant adhesive, or Trend Fill & Seal
before assembly, to prevent moisture seeping
into the core of the worktops, which would swell,
and disfigure the worktop.
Use a fine grit abrasive paper to clean up the
torn wood chips of both mating surfaces. Lightly
run the abrasive paper along the edges to de-nib
the cut chipboard edge. This will ensure a tidy
joint is achieved.
No.20
PVA
SEALANT
Waterproof
Biscuit
Curved Peninsular
Insert the three location bushes in holes
marked White dot as shown below.
Locate the template on the worktop as
illustrated ensuring that location bushes are
touching the worktop edge. Clamp into
position with quick action clamps.
When cutting the curved peninsular, hold the
router guide bush against the edge of the
template. Cut from left to right.
It is recommended that depth stops are used
and at least three or four cuts taken. White
dots must be uppermost when routing.
Quick action
clamp here
Postform edge
Location bushes (White dot)
Direction of
router travel
Cut with
laminate
down
Cut with
laminate
up
Postform edge
Postform edge
Postform edge
Postform edge
Peninsular
Peninsular End Cuts
Routing the Curved Peninsular
In order to prevent break out of the
laminate, rotation of the cutter and
feed direction of the router must
always be into the postform edge of
worktop.
Location bushes (White dot)
-15-
MAINTENANCE
The jig has been designed to operate over a long
period of time with a minimum of maintenance.
Continual satisfactory operation depends upon
proper tool care and regular cleaning.
Cleaning
■ Regularly clean the jig with a soft cloth.
Lubrication
■ Your jig requires no additional lubrication.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing as
waste.
Packaging should be sorted for environmental-
friendly recycling.
The product and its accessories at the end of their
life should be sorted for environmental friendly
recycling.
GUARANTEE
The jig carries a manufacturers guarantee in
accordance with the conditions on the enclosed
guarantee card.
