DJ300
Standard
1
/2” (12.7mm)
Template
The DJ 300 Dovetail Jig is supplied with a
standard
1
/2” (12.7mm) dovetail template
and will produce lapped dovetail and
lapped rebated dovetail joints. The
15.7mm template guide bush and the
12.7mm (
1
/2”) diameter x 104° Dovetail
router cutter should be used and are
supplied with the jig.
Specification
Min material thickness is 12mm.
Max material recommended is 20mm.
Pitch width is 25.4mm.
Specification
Min material thickness is 8mm.
(A 6mm plywood or MDF packing piece behind
front bar is required.)
Max material recommended is 12mm.
Pitch width is 11.3mm.
Specification
Min material thickness is 11mm.
Max material thickness is 25mm.
Pitch width is 21.5mm.
Optional
1
/2” (12.7mm) Comb
Joint Template Ref. DJ300/02
The comb joint is ideal for strong corner
joints for boxes. The finger size are
1
/2”
(12.7mm) in diameter. The template uses
the 15.7mm guide bush (ref. GB157) as
supplied with the standard dovetail jig.
The cutter is not supplied as standard.
The principle for setting-up and routing
the comb is different to that for the
dovetail, each piece is routed separately
under the front clamp bar.
Also included with the optional
1
/2”
(12.7mm) comb are edge guides No. 3.
Optional
1
/4” (6.35mm) Lapped
Dovetail Template Ref. DJ300/01
The size of dovetail is
1
/4” (6.35mm) and
is ideal for small boxes and small drawers.
The template includes a 7.74mm guide
bush (ref. GB774).
The cutter is not supplied as standard.
The principle for setting-up and routing
the dovetail is the same as for the
standard
1
/2” (12.7mm) dovetail template.
The edge guides No. 3 and No. 4 are
supplied with the optional
1
/4” template
(6.35mm).
-6-

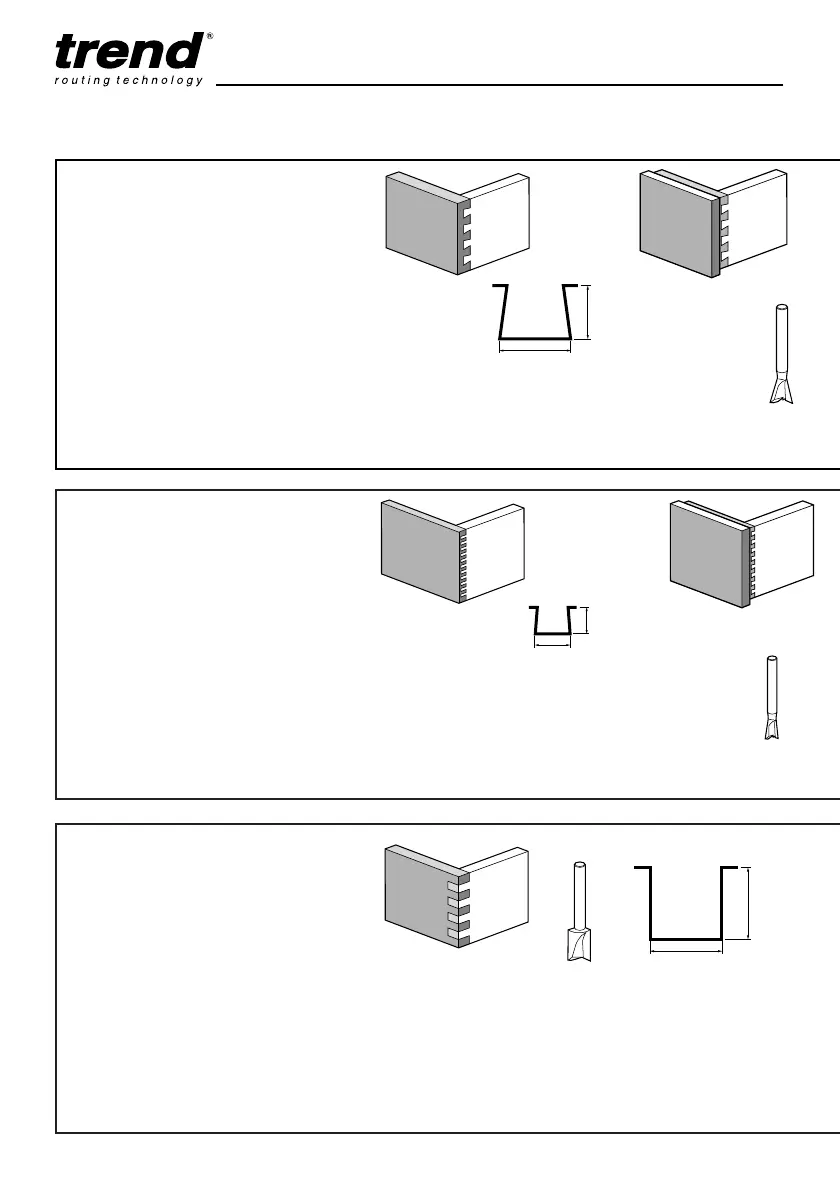

Template Specification
12.7mm (
1
/2”) dovetail
cutter ref. L120 (UK &
Eire), C041 (Europe)
6.0mm dovetail cutter
ref. S31/11 (UK &
Eire), C154 (Europe)
Comb Joint
1/4” (6.35mm)
Lapped Dovetail
1/4” (6.35mm) Lapped
rebated dovetail
1/2” (12.7mm)
Lapped Dovetail
1/2” (12.7mm) Lapped
rebated dovetail
12.55mm x 25mm
straight cutter ref.
3/76 (UK & Eire)
C021A (Europe)
Pin
Pin Depth
9.5mm (
3
/
8
”)
Pin With
12.7mm (
1
/
2
”)
Pin Width
6.3mm (
1
/
4
”)
Pin Depth
20mm Max
Pin Width
12.7mm (
1
/
2
”)
Pin Depth
4.8mm (
3
/
16
”)
