TREND T3 - DESCRIPTION OF PARTS

-6-
T3
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
●●
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
11
12
9 10
7
6
3
13
14
16
15
17
21
19
23
25
20
26
24
22
2
4
8
5
1
.
18

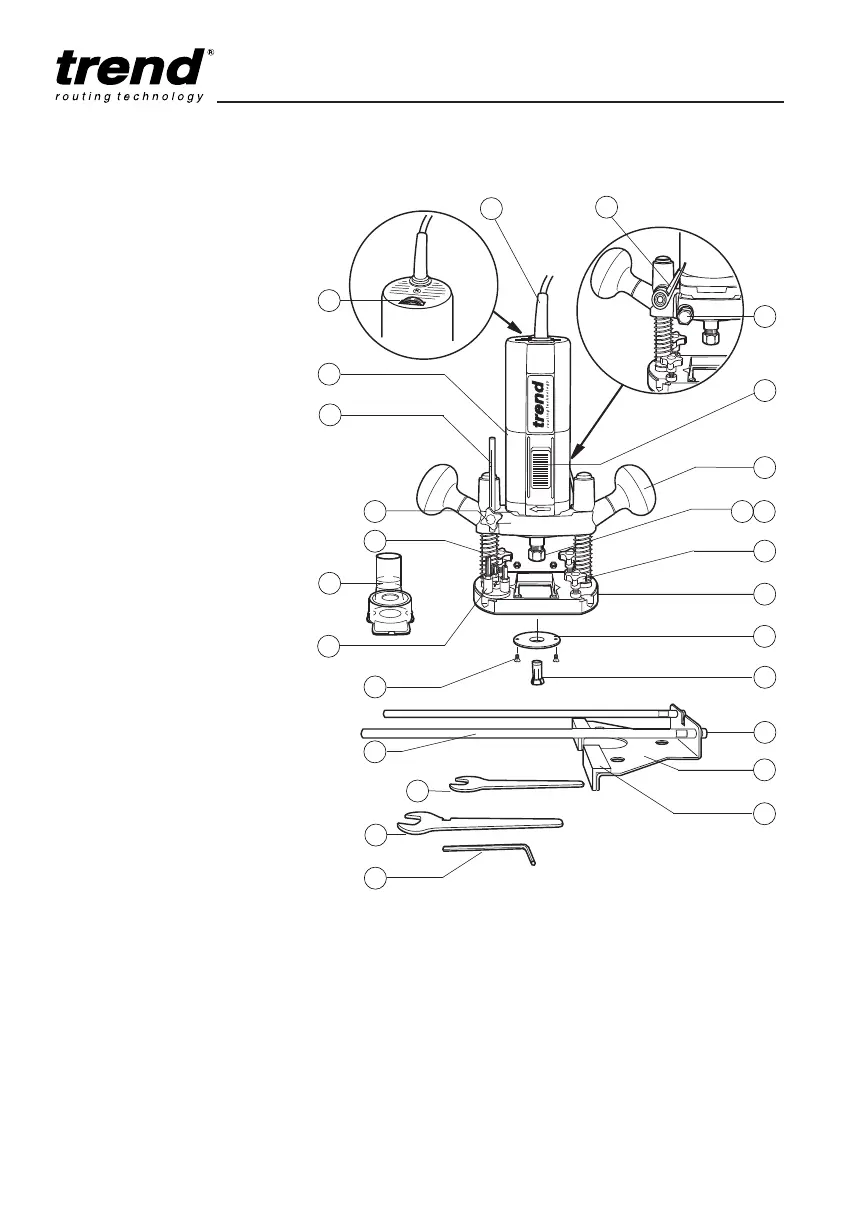

DESCRIPTION OF PARTS
1 Plunge locking lever
2 Depth stop
3 Motor to base locking nut
4 Motor housing
5 Power cable
6 On/Off switch
7 Fixed grip knob
8 Variable speed control dial
9 Collet nut
10 Collet spring (fitted behind collet)
11 Thumb knob to secure fence rods
12 Router base
13 Template guide bush dia. 16mm
14 Collet
15 Removable fence cheek
16 Side-fence rod fixing screw
17 Hex key for side-fence rods
18 Side-fence body
19 Spanner (15mm A/F) for spindle
20 3-way turret stop
21 Spanner (17mm A/F) for collet nut
22 Thumb knob for depth stop
23 Fence guide rods dia. 8mm x 305mm long
24 Template guide bush fixing nut
25 Template guide bush fixing screw
26 Dust extractor spout (ID. 35mm)
