6
• Power port: Connect the included power adapter from your router power port
and to an available power outlet.
• Reset (located in the bottom): Press and hold this button for 10 seconds to reset
your router to default settings

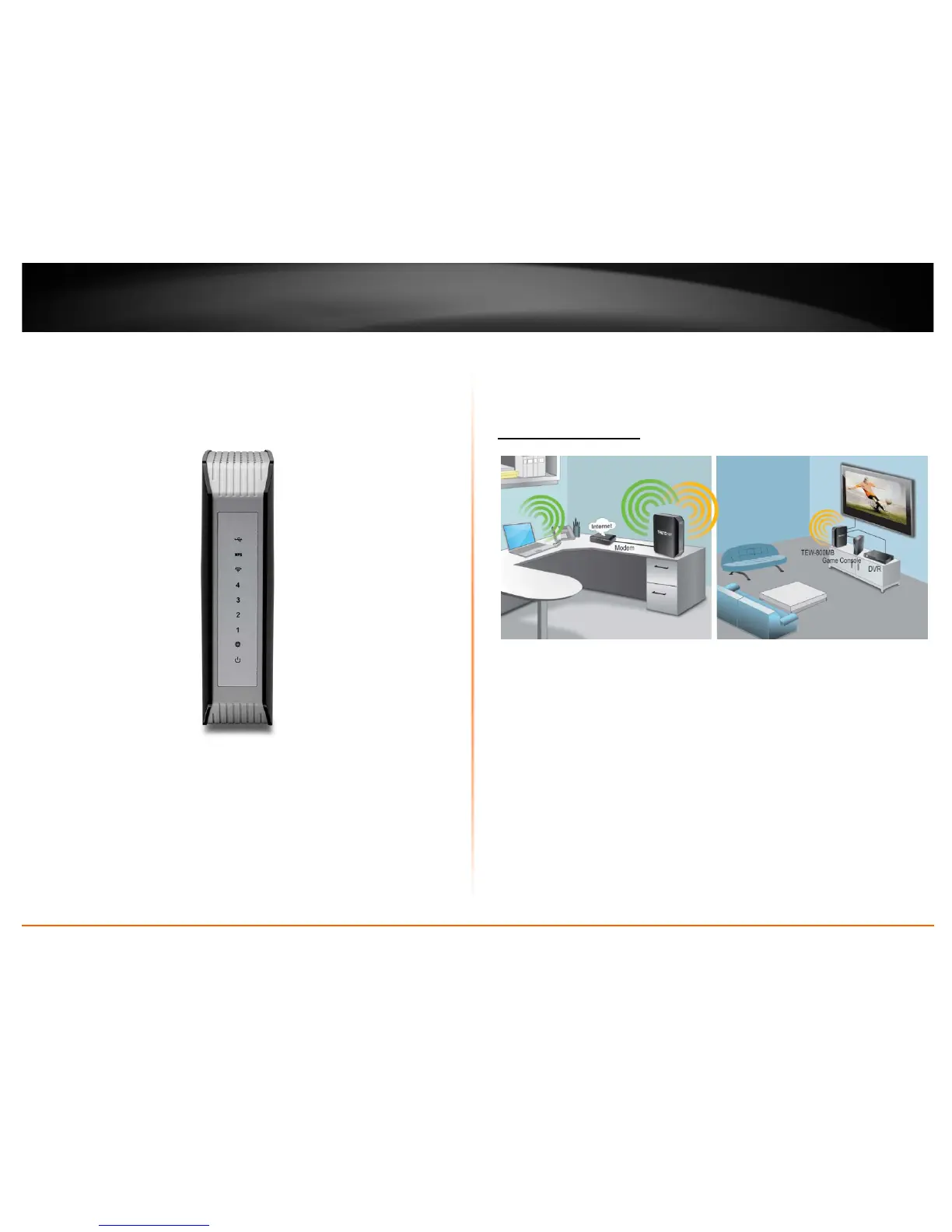

Front View
• USB: This indicator turns green indicating a USB device is connection.
• WPS LED: This indicator is turned on and blinks when WPS is activated. The LED
will turn off automatically once WPS is completed.
• Wireless (Link/Activity) LED: This turns green when a 2.4GHz client is connected
and turns blue when a 5GHz client is connected. If both types of wireless clients
are connected the LED will be blue. The LED indicator will blink during wireless
data transmission through your network.
• Gigabit LAN port 1-4 (Link/Activity) LED: This LED indicator is solid green when
wired clients are connected to the gigabit LAN ports of your unit. The LED
indicator will blink during data transmission through the LAN ports.
• Gigabit Internet (Link/Activity) LED – This LED indicator is solid green when your
router’s Internet port is physically connected to the modem’s network port. The
LED indicator will be blinking The LED indicator will blink during Internet data
transmission through your network.
• Power LED: This LED turns on when the unit is powered on.
Application Diagram
The router’s gigabit Internet port is connected to your Internet modem which is
connected to the Internet. Wireless signals from the router are broadcasted to wireless
clients such as laptops (with wireless capability), TVs or media bridges thereby providing
Internet access.
