HARDWARE INSTALLATION
Front Panel

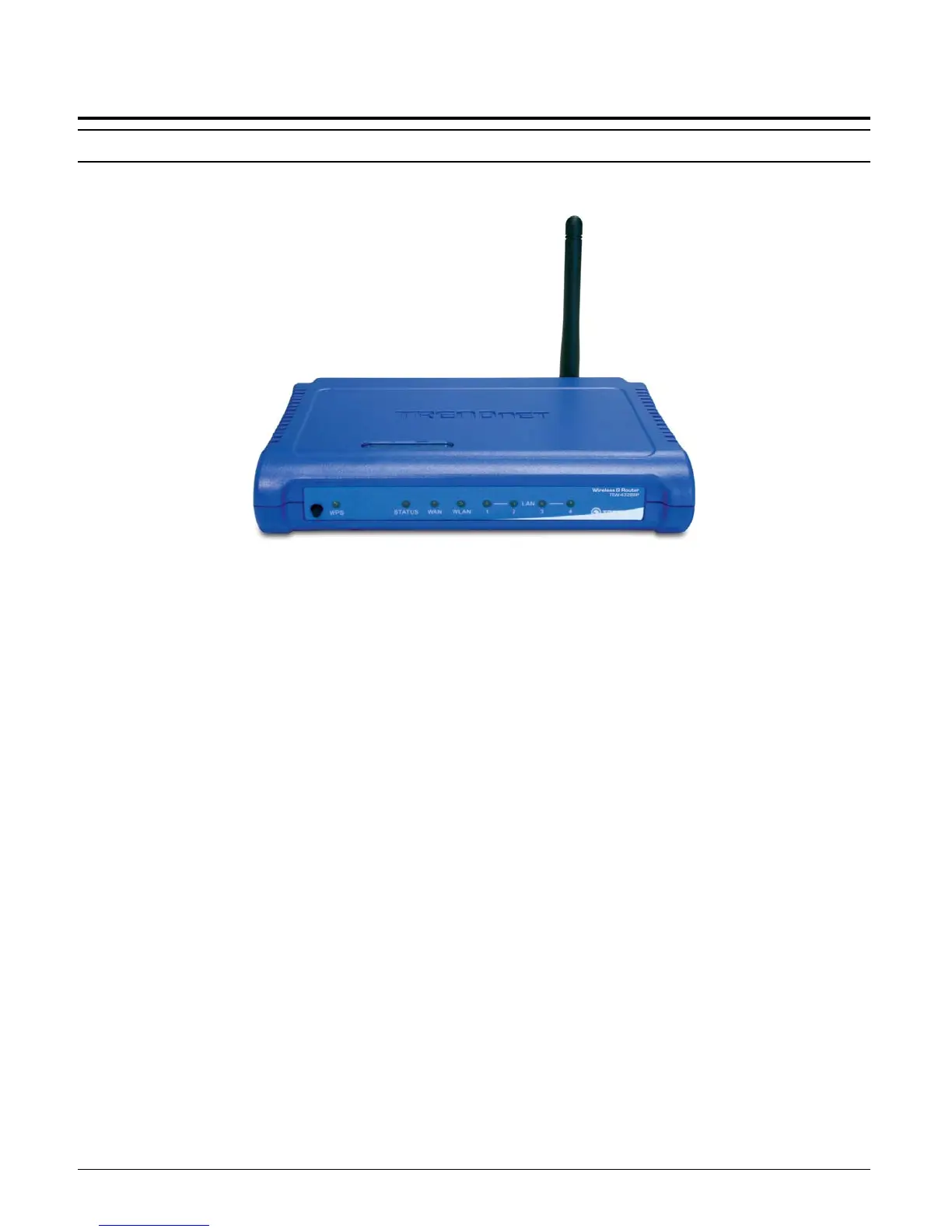

The figure below shows the front panel of the IEEE 802.11g Wireless Router.
Front Panel
SYSTEM
This indicator blinking green means the WLAN Router is working successfully.
Otherwise, this indicator always on or off means the function of the WLAN Router
has failed.
WAN (Link/ACT)
The indicators light green when the WAN port is connected to a xDSL/Cable
modem successfully.
The indicators blink green while the WAN port was transmitting or receiving data
from the xDSL/Cable modem.
WLAN (ACT)
This indicator lights green when there are wireless devices connected and
transmitting data to the WLAN Router.
LAN (Link/ACT)
These indicators light green when the LAN ports were connected successfully.
These indicators blinking green while the LAN ports were accessing data.
WPS
Push this button to execute the Wi-Fi protected Setup process.
