TRENDnet TEW-829DRU User Manual

© Copyright 2018 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-829DRU
3

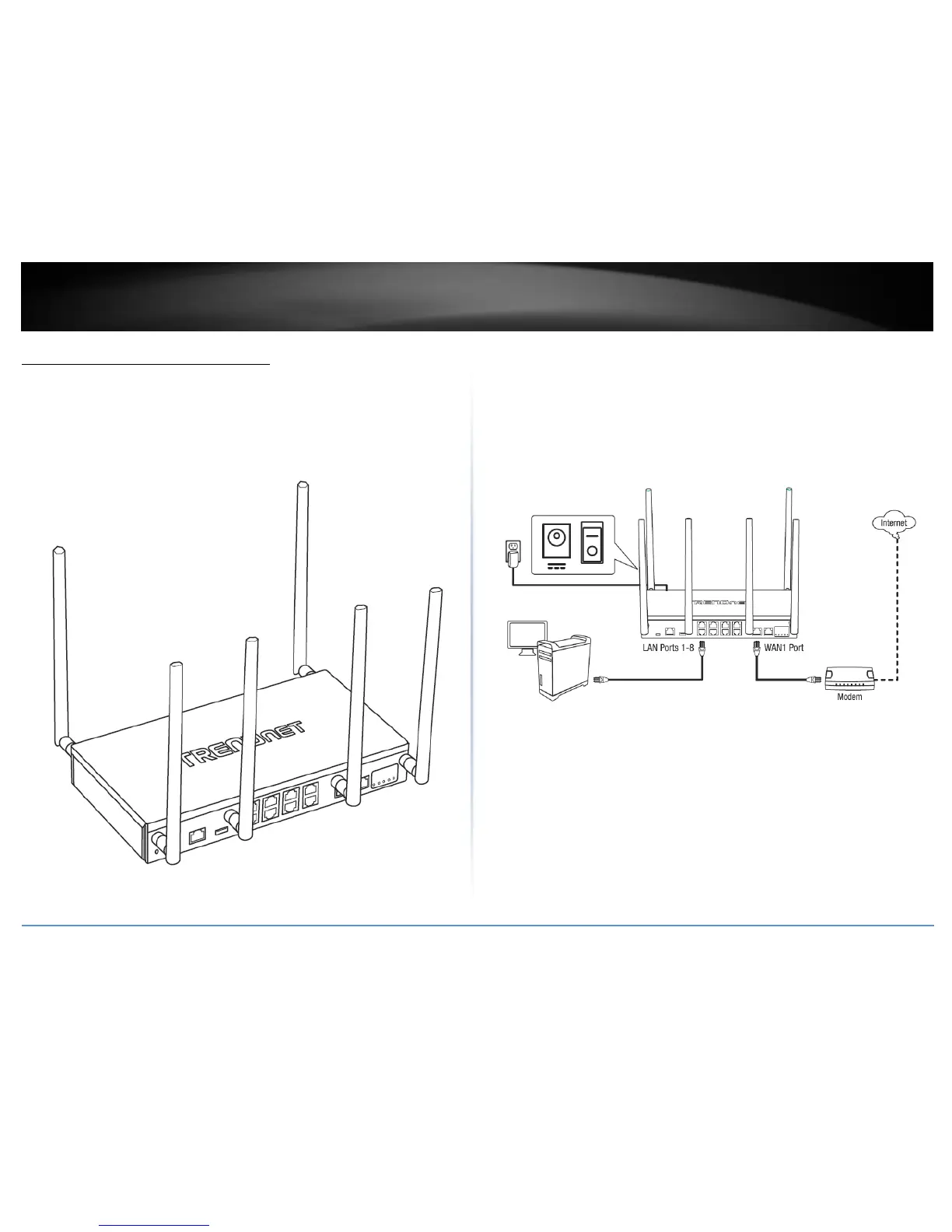

Basic Installation and Configuration
Note: It is recommended that you configured the wireless router from a wired computer.
1. Attach the antennas to the front and back of the router and position them for the
best WiFi coverage. It is recommended that you position all antennas vertically as
shown for initial installation and adjust as needed later on.
2. Connect a network cable from the WAN1 port of your router to your modem.
3. Connect a network cable from one of the LAN ports (1-8) of your router to your
computer.
4. Connect the includes power adapter from a power outlet to your router power port
and push the Power On(-)/Off(o) switch into the On(-) position.

TRENDnet TEW-829DRU Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Receiver sensitivity	802.11a: -70 dBm (typical) @ 54 Mbps 802.11b: -83 dBm (typical) @ 11 Mbps 802.11g: -70 dBm (typical) @ 54 Mbps 802.11n (2.4 GHz): -59 dBm (typical) @ 400 Mbps 802.11n (5 GHz): -59 dBm (typical) @ 800 Mbps 802.11ac: -55 dBm (typical) @ 1733 Mbps
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	11
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Power consumption (typical)	17.4 W
Product type	Tabletop router
Product color	Black
Security algorithms	WPA, WPA2-PSK, WPA2-RADIUS
Routing protocols	OSPF, RIP-1, RIP-2
Antennas quantity	6
Antenna gain level (max)	4.4 dBi
Certification	FCC, IC
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	170 mm
Width	280 mm
Height	44.45 mm
Weight	1240 g
