Destination IP Address
Normally 0.0.0.0, but check your router documentation.
Network Mask
Normally 0.0.0.0, but check your router documentation.
Gateway IP Address
The IP Address of the Broadband Router.
Metric
2
Other Routers on the Local LAN
Other routers on the local LAN must use the Broadband Router’s Local Router as the Default Route. The entries will be the same as
the Broadband Router's local router, with the exception of the Gateway IP Address.
• For a router with a direct connection to the Broadband Router's local Router, the Gateway IP Address is the address of the Broad-
band Router's local router.
• For routers which must forward packets to another router before reaching the Broadband Router's local router, the Gateway IP
Address is the address of the intermediate router.
Static Routing - Example

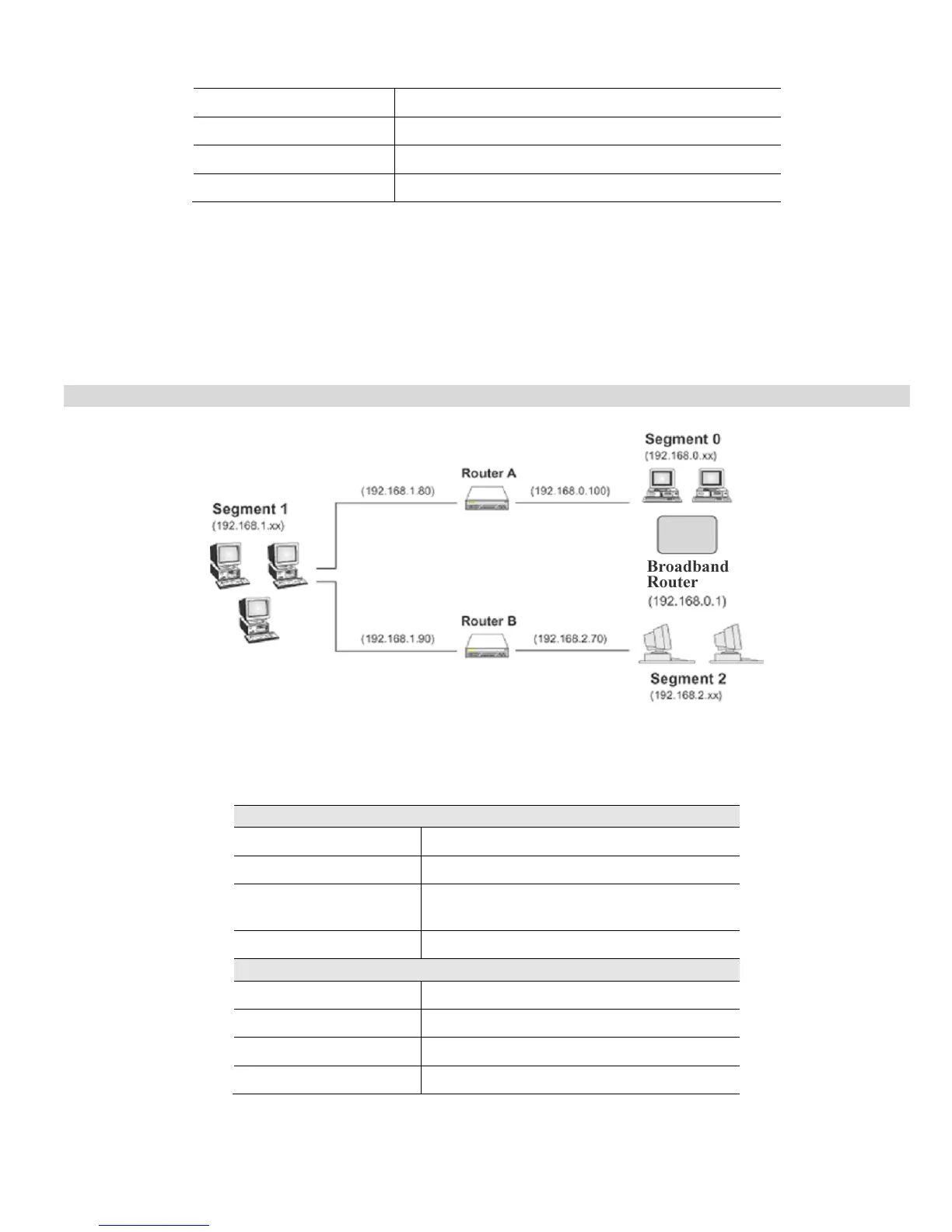

Figure 47: Routing Example
For the Broadband Router's Routing Table
For the LAN shown above, with 2 routers and 3 LAN segments, the Broadband Router requires 2 entries as follows.
Entry 1 (Segment 1)
Destination IP Address 192.168.1.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100 (Broadband Router's local
Router)
Metric 2
Entry 2 (Segment 2)
Destination IP Address 192.168.2.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100
Metric 3
