CHAPTER 5
CHAPTER 5 - ACVMAX OPERATION
The ACVMax Boiler Management System is designed
to be exible yet easy to use. ACVMax monitors and
controls the PRESTIGE to provide heat as eciently as
possible.
All ACVMax features are easy to use through a graphical
display where information is presented either graphi-
cally or in plain English, so code charts are not required.

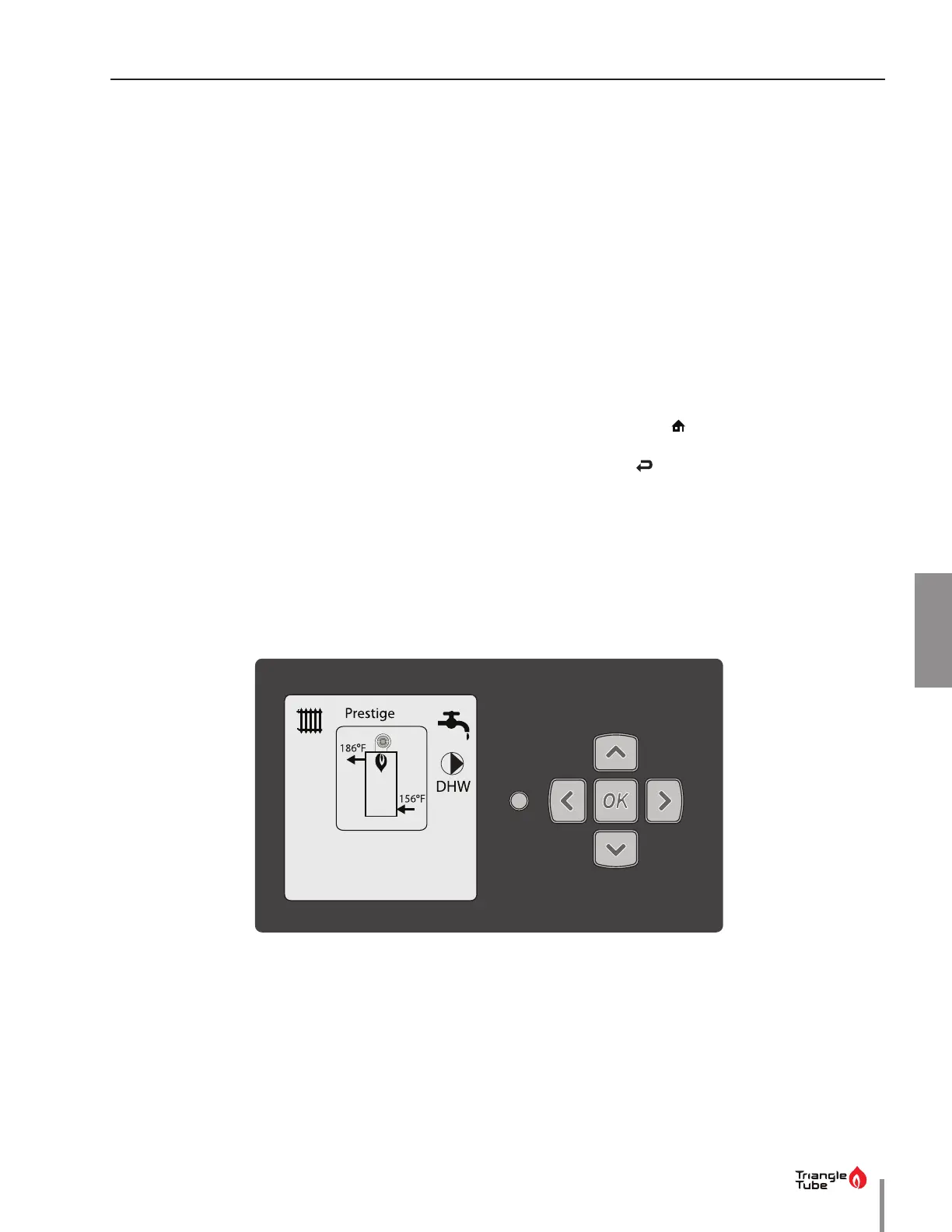

Fig. 2 below shows an ACVMax display example of the
PRESTIGE Solo red for a domestic hot water demand.
5.1. ACVMax Navigation
Navigation is performed through four arrow buttons
UP, DOWN, LEFT, RIGHT with a center OK button for
making selections and entering information.
The INSTALLER button (the small round button) pro-
vides the installing contractor with full access to all
available features after entering a password.
The Main Menu can be entered from the Home Screen
by pressing the OK button.
The menu system utilizes icons to represent each se-
lection. The current selected menu is displayed as a re-
versed image with a text description shown at the top
of the display. Menus can be entered by highlighting
the desired icon and pressing the OK button.
The Home Screen icon
at the bottom of each screen
returns to the Home Screen when selected. The Previ-
ous Screen icon
at the bottom of each screen re-
turns to the previous screen when selected.
DHW Demand
Target = 186°F
Solo
Fig. 2 - ACVMax User Interface
