5.9. Boiler Information
Boiler Information can be viewed by selecting the Boiler Information icon and pressing the OK button. Boiler
Information provides real time operating information of the Prestige.
Boiler Information
Boiler Information
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
e
f
b
b
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
b
b
Boiler Information
Boiler Status Standby
Heating Call No
DHW Call No
Boiler Firing Rate --
Ionization current 0μA
Boiler Setpoint --
CHAPTER 5 - ACVMAX OPERATION

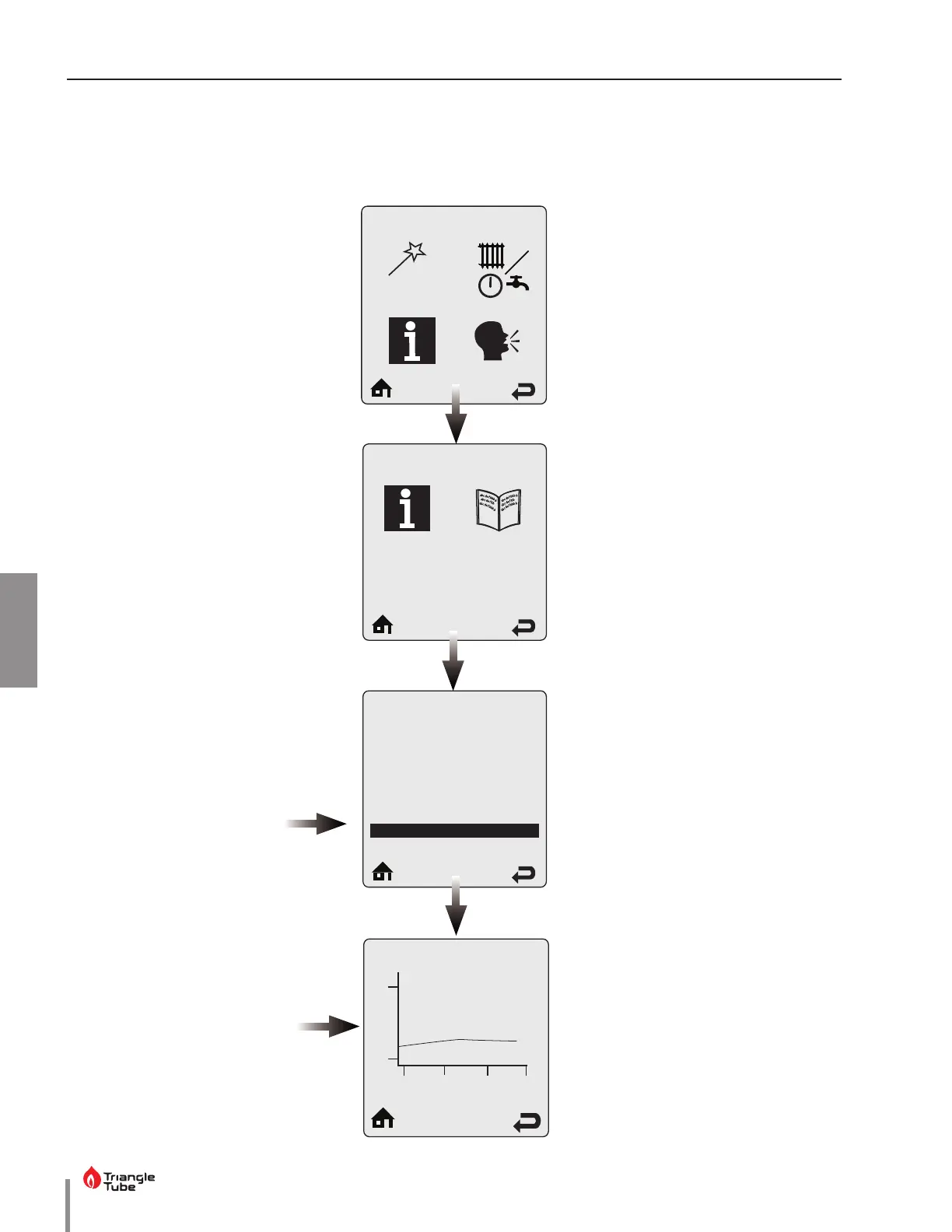

Boiler Information displays six
boiler readings at a time. Each line
contains an information item fol-
lowed by its current value. Press
the UP or DOWN buttons to scroll
through additional information
items.
194
68
-24.00
-16.00
-8.00
0.00
Boiler Setpoint
Some information items include a
logging function.
Select the information item then
press the OK button to view its
graph.
One sample is recorded every 12
minutes to produce a graph of the
last 24 hours.
The following items have a logging
function:
• Boiler Firing Rate
• Ionization Current
• Boiler Setpoint
• Boiler Supply Temperature
• Boiler Return Temperature
• Boiler Flue Temperature
• Outdoor Temperature
• DHW Storage Temperature
• External Modulation Signal
• Pressure
