FMS-2000M
LIT-12013578
11
Before you begin, make sure you have the following tools:
• a drywall saw or an oscillating tool with a drywall saw blade
•
• a #2 Phillips head screwdriver
•
1. Determine the location where you want to place the FMS-2000M monitor. The default orientation is portrait, but you can also
choose to use landscape orientation.
2. Mount the rough-in box to the side of a stud.
that you install later.
3.
4. If the 2-conductor power cable terminates at the monitor, pull the 2-conductor power cable through the opening in the rough-in box.
5.
precisely with the rough-in box.
6. Align the monitor’s mounting bracket to the four screw holes on the mounting tabs of the rough-in box. Use a #2 Phillips head
screwdriver to secure the bracket with the screws provided. Make sure the bracket is level.
Note: Do not overtighten the screws because the mounting bracket could warp.
7. Connect the wires to the back of the monitor. Refer to Figure 11 for more information.
8. Align the two slots on the back of the monitor with the tabs on the bracket and swing the monitor towards the wall so that the single
tab on the bracket slots into the back of the monitor.
9.
drive the screw into the monitor until it engages with the tab on the bracket.
After you mount the FMS-2000M monitor, apply power to the monitor. The initial splash screen displays the Triatek logo and the Safety
Halo bezel lights up green to represent the current system status.
Mounting the FMS-2000M monitor for a new application
1
.
5
8
3
in.
1
.
6
6
2
in.
1
.
5
9
6
in.
1.5 in.
3.18 in.
2.878 in.
3
.
3
3
8
in.
4
.
8
4
in.
1
.
5
in.
0.728 in.
1.725 in. 0.728 in.
(84.785 mm)
(122.94 mm)
(40.208 mm)
(42.215 mm)
(40.538 mm)
(73.101 mm)
(80.77 mm)
(38.1 mm)
(18.491 mm) (43.815 mm) (18.491 mm)
(38.1 mm)

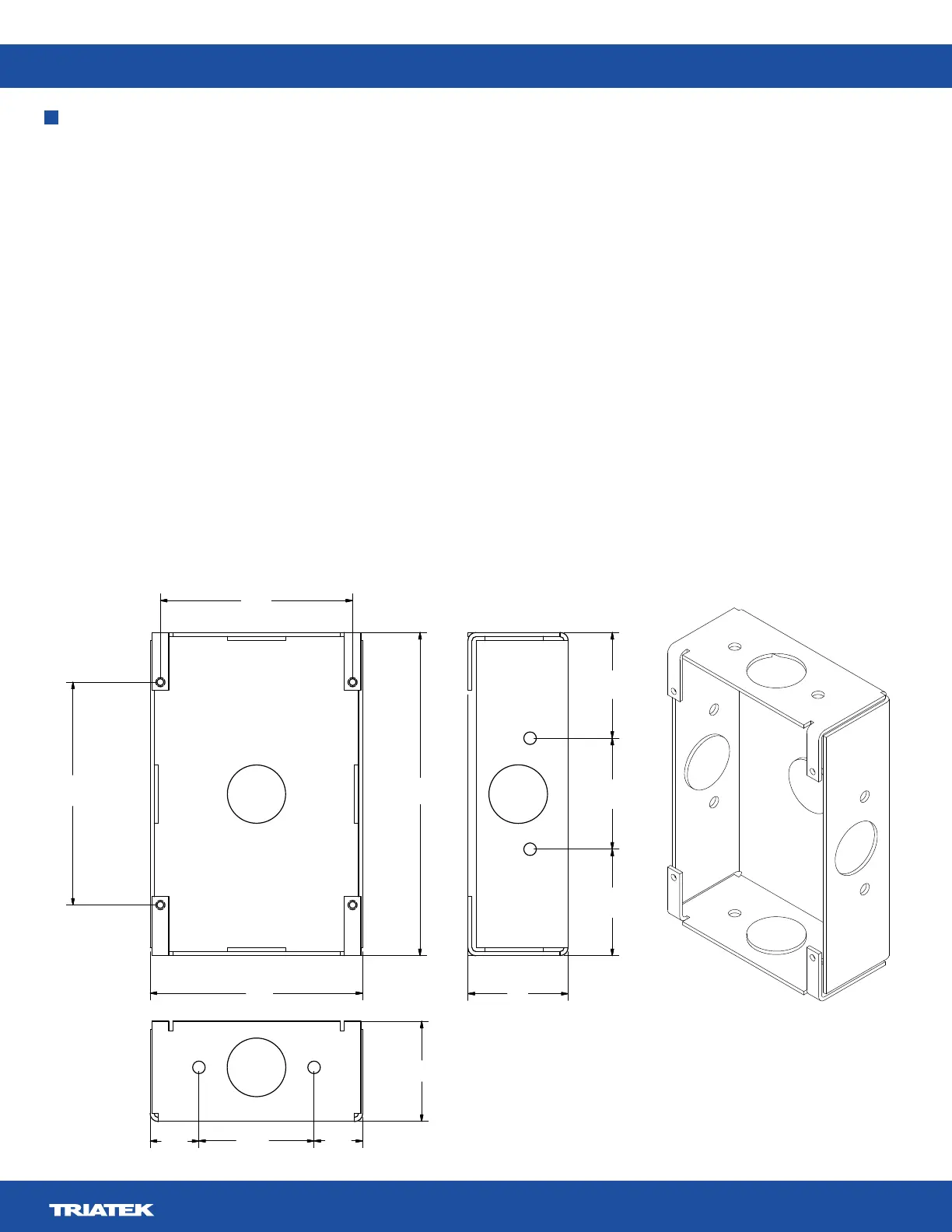

Figure 5: Rough-in box dimensions Figure 6: Rough-in box
