FMS-2000M
LIT-12013578
15

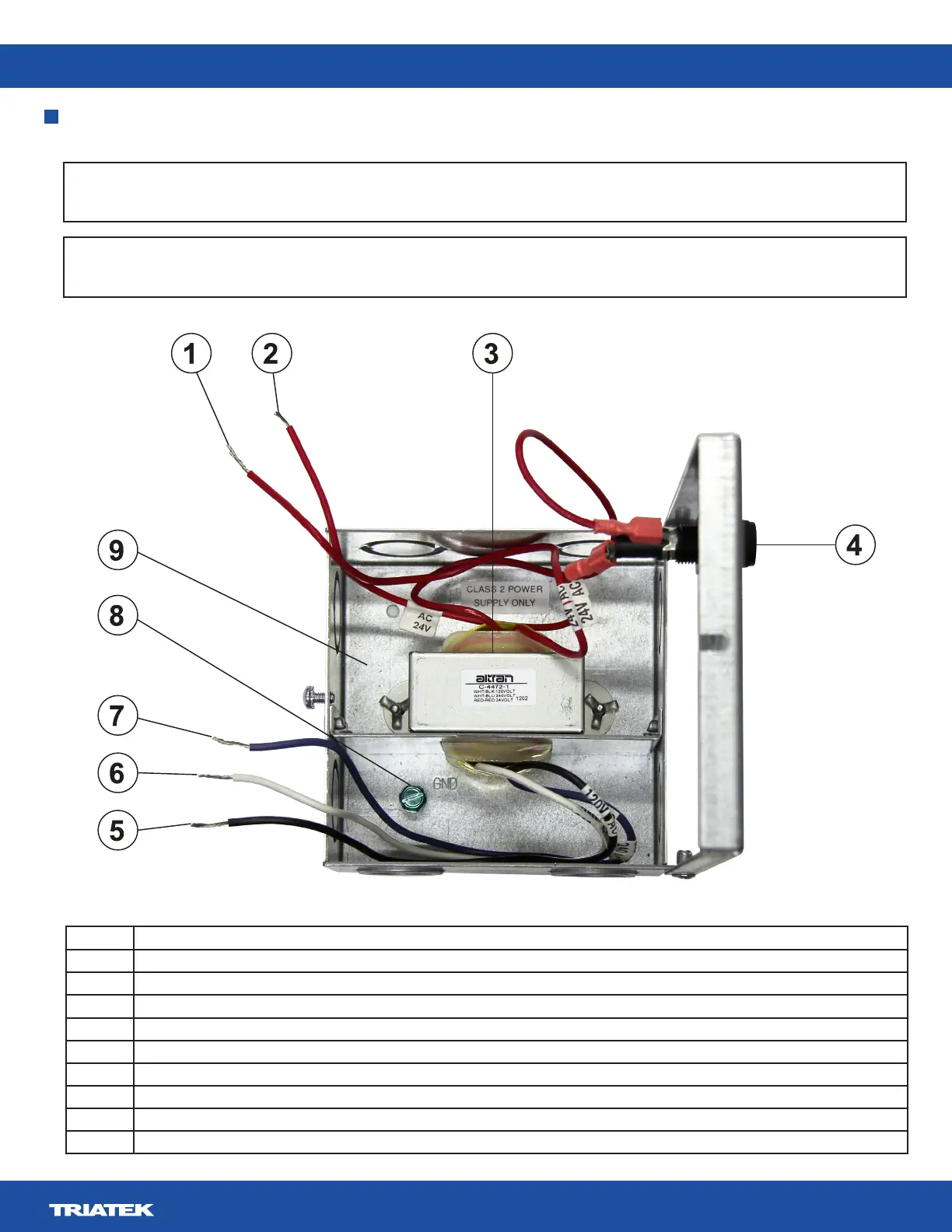

Wiring the isolated power supply
Item Description
1 Red, 24 VAC connected to the FMS-2000M monitor
2 Red, 24 VAC connected to the FMS-2000M monitor
3
4 1 A slow blow fuse
5
6
7
8
9 Class 2, Limited Energy, or LPS isolated power supply wiring in this compartment
Table 5:
Figure 9: Universal 120 VAC/ 240 VAC to 24 VAC stepdown isloation transformer
To check if your FMS-2000M includes an isolated power supply, see Product code matrix.
IMPORTANT: Install the FMS-2000M Critical Environment Monitor with a Class 2, Limited Energy, or LPS isolated power supply
and connect it to an electrical circuit protected by a minimum 20 A circuit breaker. Mount the circuit breaker in an approved electrical
enclosure located separately, but in close proximity, to the FMS-2000M monitor.
IMPORTANT : Installez le FMS-2000M Critical Environment Monitor en utilisant un bloc d’alimentation de classe 2, à limitation
d’alimentation ou LPS et raccordez-le à un circuit électrique protégé par un disjoncteur d’un minimum de 20 A. Placez le disjoncteur
du FMS-2000M dans un panneau électrique approuvé et situé à l’écart, mais à proximité.
