FMS-2000M
LIT-12013578
19
SW1
1 2 3 4 5 6 7 8
On
Switch Description Sensor 1
1
Sensor address
On
2 On
3 On
4 On
5 Sensor mode: Set the switch to On for normal or Off for inverted. After you change the sensor mode with switch 5, cycle
power to the sensor for the mode change to take effect.
On or off
6 Reserved
7 Reserved
8 Sensor communications termination Off

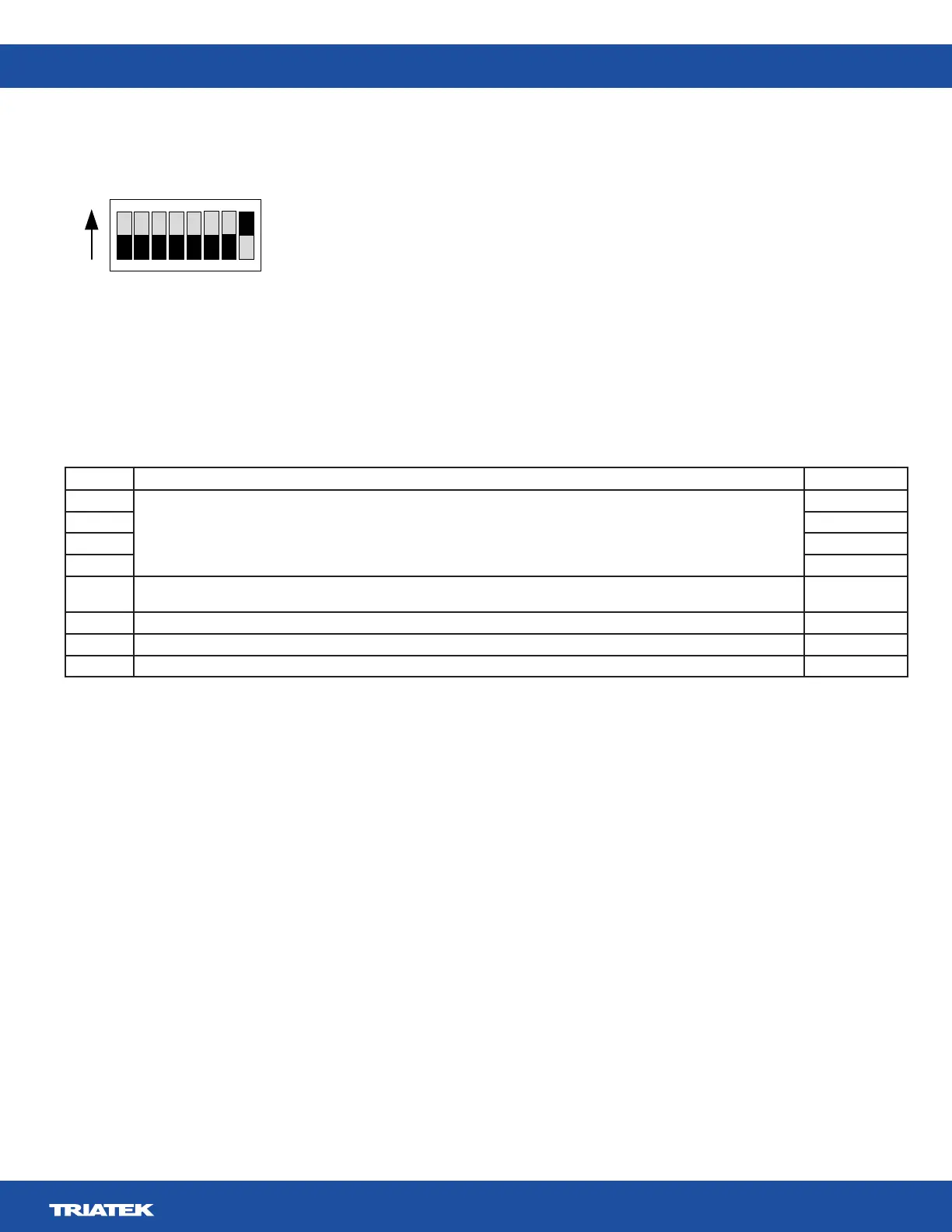

Figure 13: Remote pressure sensor DIP switch conguration for one-sensor models
Table 9: Remote pressure sensor DIP switch positions for one-sensor models
