FMS-2000M
LIT-12013578
23
SW1
1 2 3 4 5 6 7 8
On
1 2 3 4 5 6 7 8
On
1 2 3 4 5 6 7 8
On
Switch Description Sensor 1 Sensor 2 Sensor 3
1
Sensor address
On Off On
2 Off On On
3 On On On
4 On On On
5 Sensor mode: Set the switch to On for normal or Off for inverted. After you
change the sensor mode with switch 5, cycle power to the sensor for the mode
change to take effect.
On or off On or off On or off
6
7
8 Sensor communications termination Off Off On

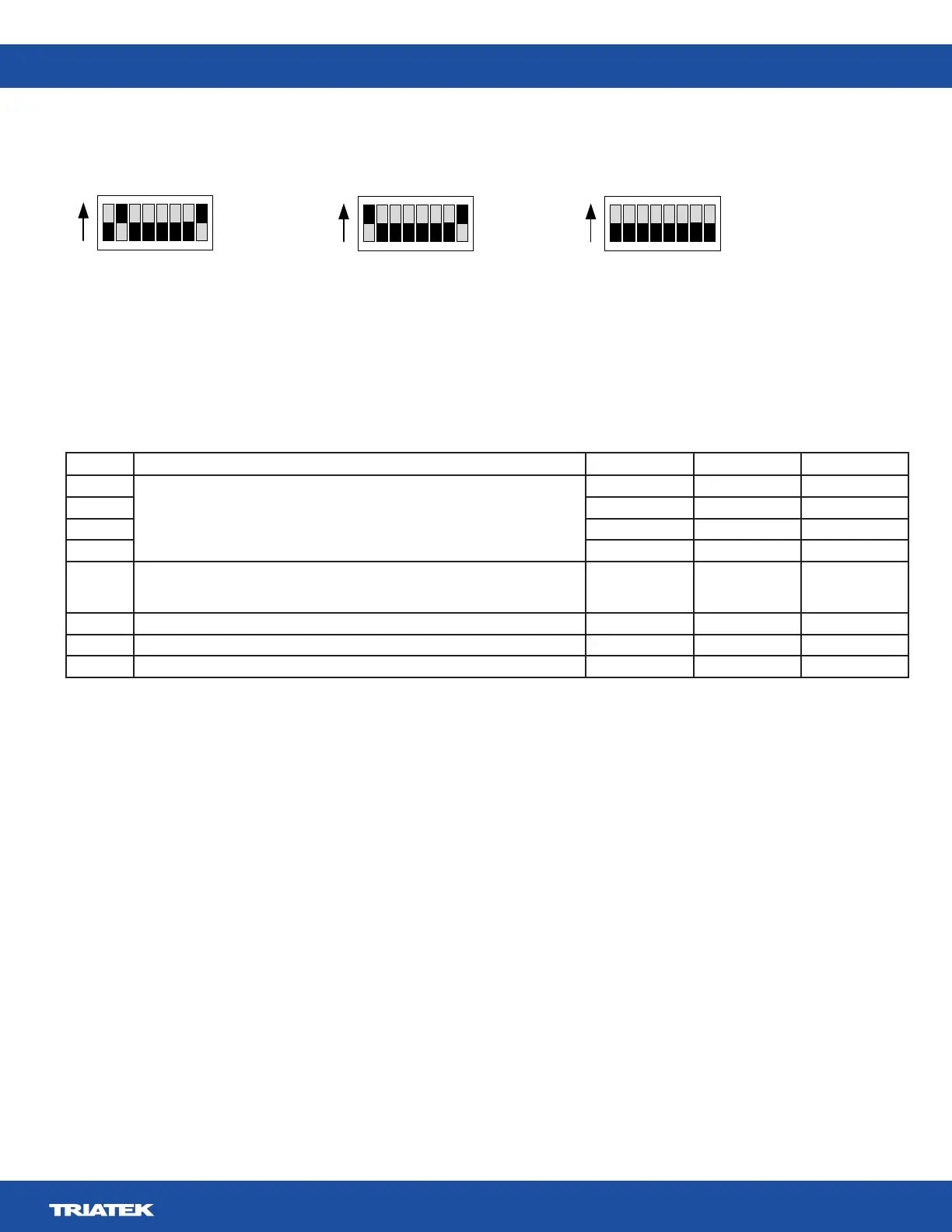

Figure 17: Remote pressure sensor DIP switch conguration for three-sensor models
Table 13:
