FMS-2000M
LIT-12013578
25
1 2 3 4 5 6 7 8
On
1 2 3 4 5 6 7 8
On
On
1 2 3 4 5 6 7 8
On
1 2 3 4 5 6 7 8
SW1
Switch Description Sensor 1 Sensor 2 Sensor 3 Sensor 4
1
Sensor address
Off On Off On
2 Off Off On On
3 On On On On
4 On On On On
5 Sensor mode: Set the switch to On for normal or Off for
inverted. After you change the sensor mode with switch
5, cycle power to the sensor for the mode change to take
effect.
On or off On or off On or off On or off
6 Reserved
7 Reserved
8 Sensor communications termination Off Off Off On

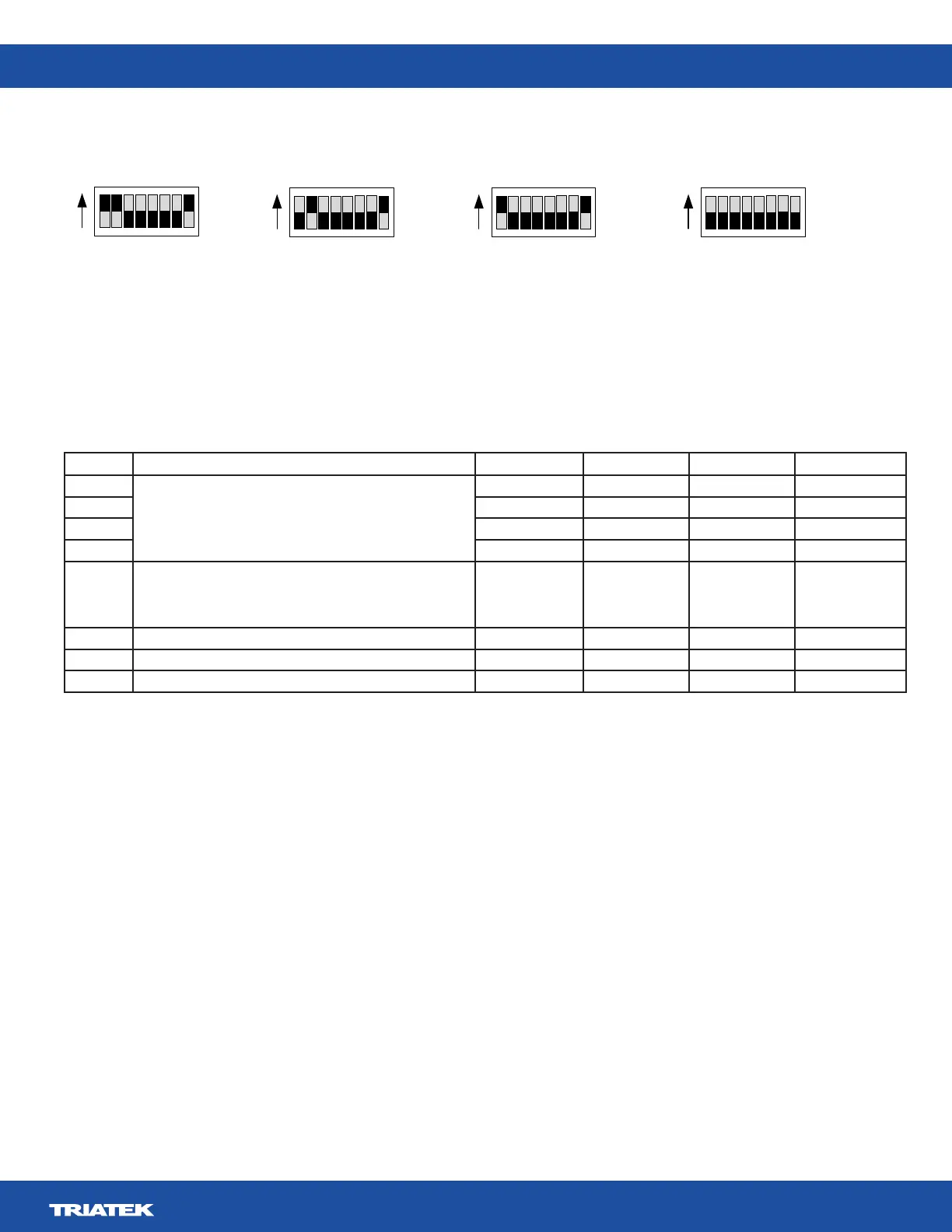

Figure 19: Remote pressure sensor DIP switch conguration for four-sensor models
Table 15:
