Triax TDH 800 User Manual

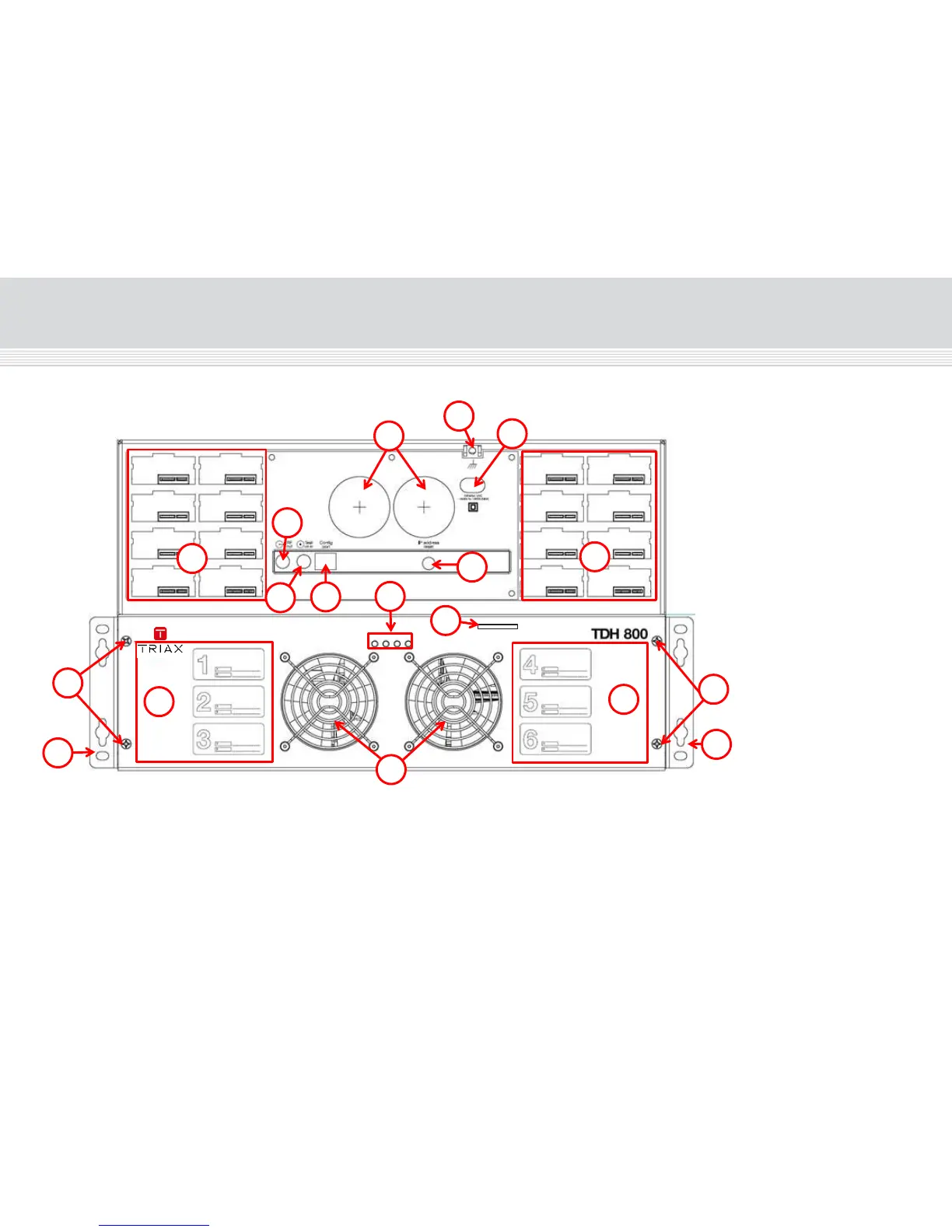

Headend Overview
6
Components
A Input slots (16 in total)
B Ventilation fans
C Earth terminal
D Power input
E RF output
Distributes the RF channels
from the output modules
using an F-connector.
F Test point -20 dB
RF test point of output (-20
dB).
G Configuration port
Ethernet configuration port
for setting up the headend
unit.
H IP address reset dial
Switch for resetting the
headend’s IP address.
I Output slots (6 in total)
Behind front cover.
J Secure Digital (SD) card
Memory card for storage of the
system configuration (behind
front cover).
K Status LEDs L Mounting brackets M Bottom cover screws.
A
A
C
D
E
I
I
H
F
G
B
J
B
K
L
L
M
M
