Triax TDH 800 User Manual

Headend Installation
7
Headend installation
Mounting
You can mount the headend either onto a system rack or directly to a
wall.
Attach the mounting brackets to the headend with the supplied screws.
Installation Bracket position
Rack At the front of the headend.
Wall
At the rear of the headend.
Attach the headend to the wall or onto a system rack.
Ventilation
requirements

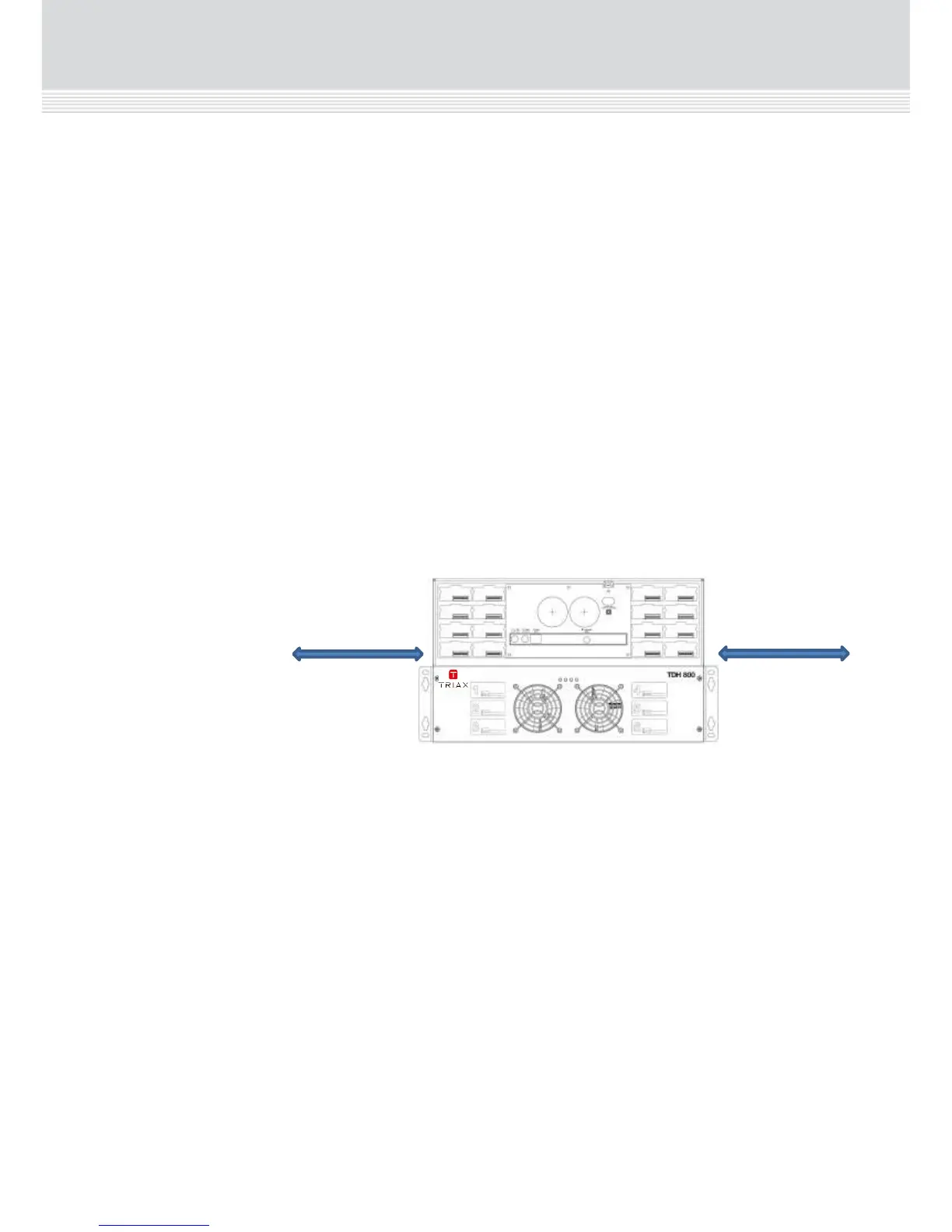

 Ensure that min. 10cm ventilation space is available on both
sides and at the front of the headend.
Power/Earth
1. Connect an earth cable to the Earth terminal.
2. Attach the other end of the earth cable to an approved ‘earth’
connection point.
3. Insert the supplied cable into the Power Input port.
4. Confirm that the IP address reset dial is set to "0".
10 cm
10 cm
