Triax TDH 800 User Manual

Input modules
9
Input modules
You can install up to 16 input modules in the headend.
Input module
types
Each input module is identified through the use of a specifically
coloured label. The label also indicates the module type’s name and
associated item number. The remainder of the label is used for noting
post-installation module information.
Another label containing a barcode and serial number is located on the
underside of the input module.
Name:
DVB-T and DVB-T2 input module
Item number:
692823
Label colour:
Purple
Name:
DVB-S and DVB-S2 input module
Item number:
692820
Label colour:
Light blue
Name:
AV input module
Item number:
692080
Label colour:
Yellow

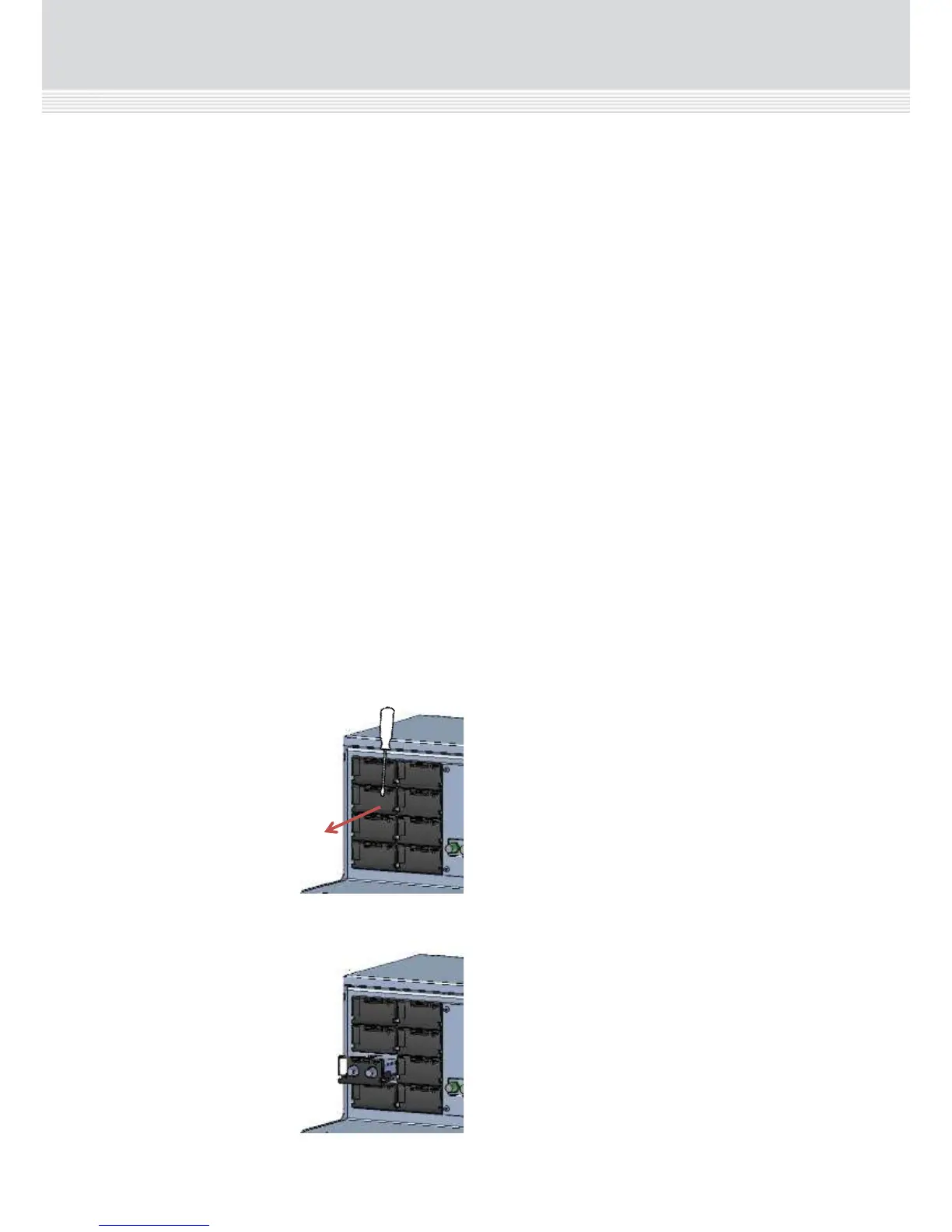

Inserting input
modules
1. Remove the protective cover away from an
available input slot.
2. Retain the protective cover.
Note:
Any available input slot can be used.
1. Push the input module into the input slot
until the input module is locked in position.
2. Note details for the input module on the
label (optional).
3. Continue inserting all additional input
modules.
