UPM 1400
EN 12
Function Key Options:
F1 - starts a channel search on the selected transponder
F2 - displays signal level and quality in an enlarged display mode

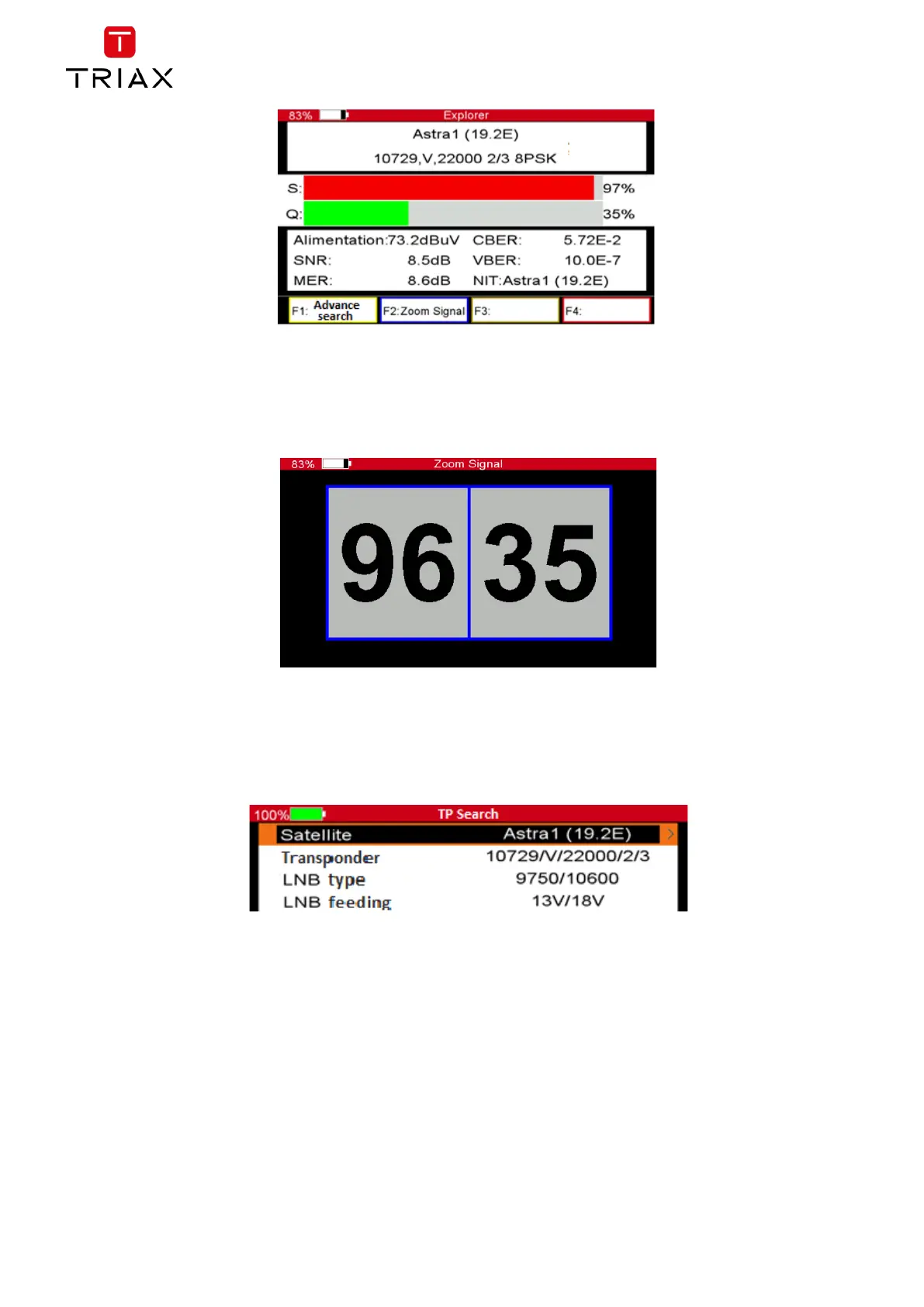

In the Zoom Signal menu, the signal level is displayed on the left and the signal quality is displayed on the right, both
values in very large scale. This makes these values easier to see under difficult light and visibility conditions.
Satellite, TP search: add/edit a transponder
By pressing the OK button next to Transponder opens the list of transponders.
Function keys now offer extended functions to edit the TP or add the TP.
.
The following screenshot shows the list of transponders:
10729 = Transponder Frequency
V = Polarization
22000 = Symbol rate
To Next Page
