UPM 1400
7 EN

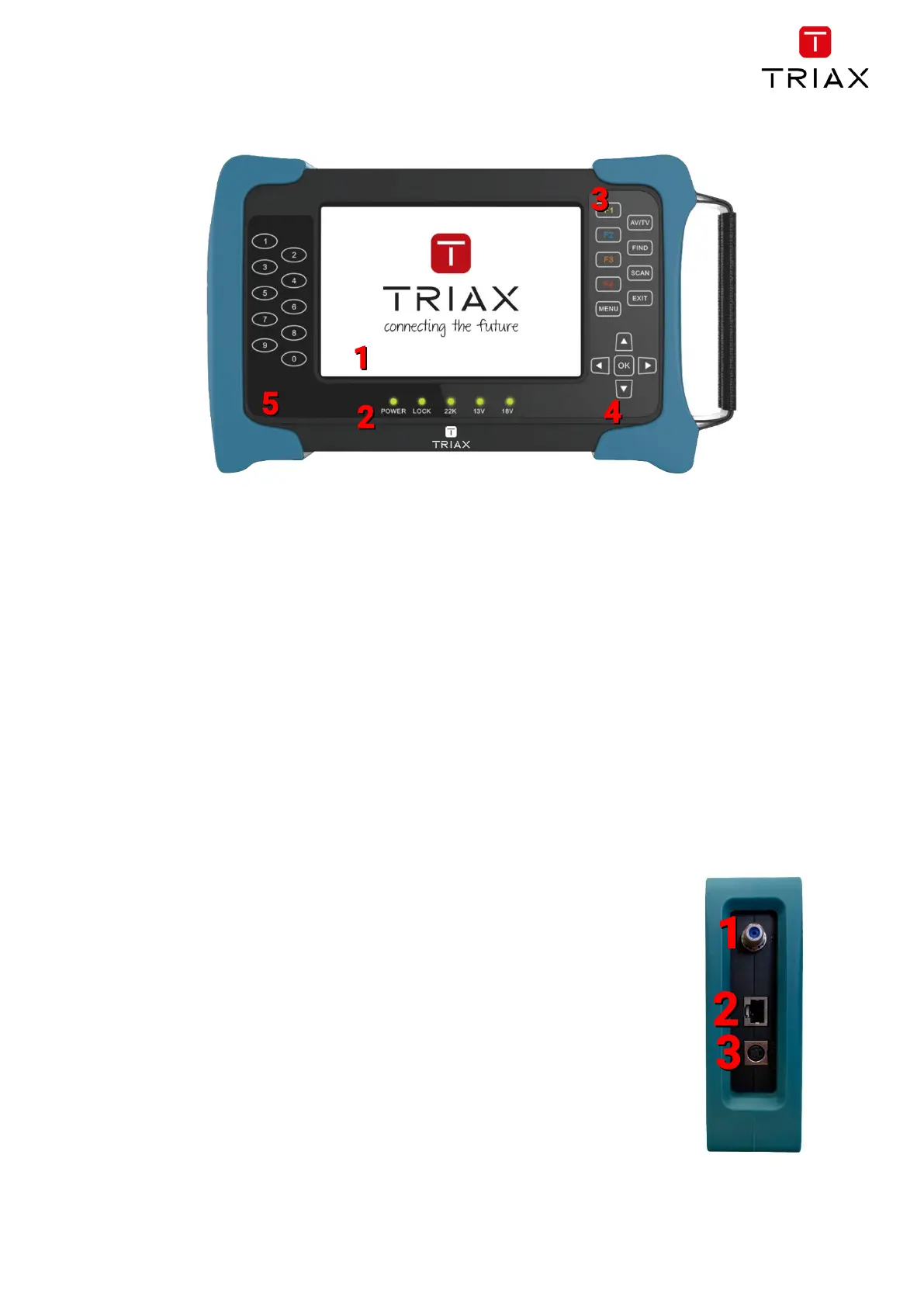

Frontal face
Screen: 5" TFT display for the menu and TV program
LEDs status :
The two color POWER LED displays the charge and operation of the product:
Red : device in operation
Green : device charging
LOCK : indicates received signal
13V/18V : output voltage indication
22K : indication of 22KHz signal emission
Function keys:
FIND : option key for satellite search in TV mode
SCAN : option button for blind scan or auto search in TV mode
Exit : exit from current menu
F keys : multifunction keys (depending on menu)
MENU : entering in main menu
Cursor: The arrow keys and OK, allow navigation in the menus
Numerical keys 1-9: for calling a program or entering values
Right side
1 - Tuner: Input of the signals to be measured
2 - LAN: Network connector
3 - AV IN/DC OUT: To display an external A/V signal on the meter
