Triax UPM 1400 User Manual

UPM 1400
EN 24

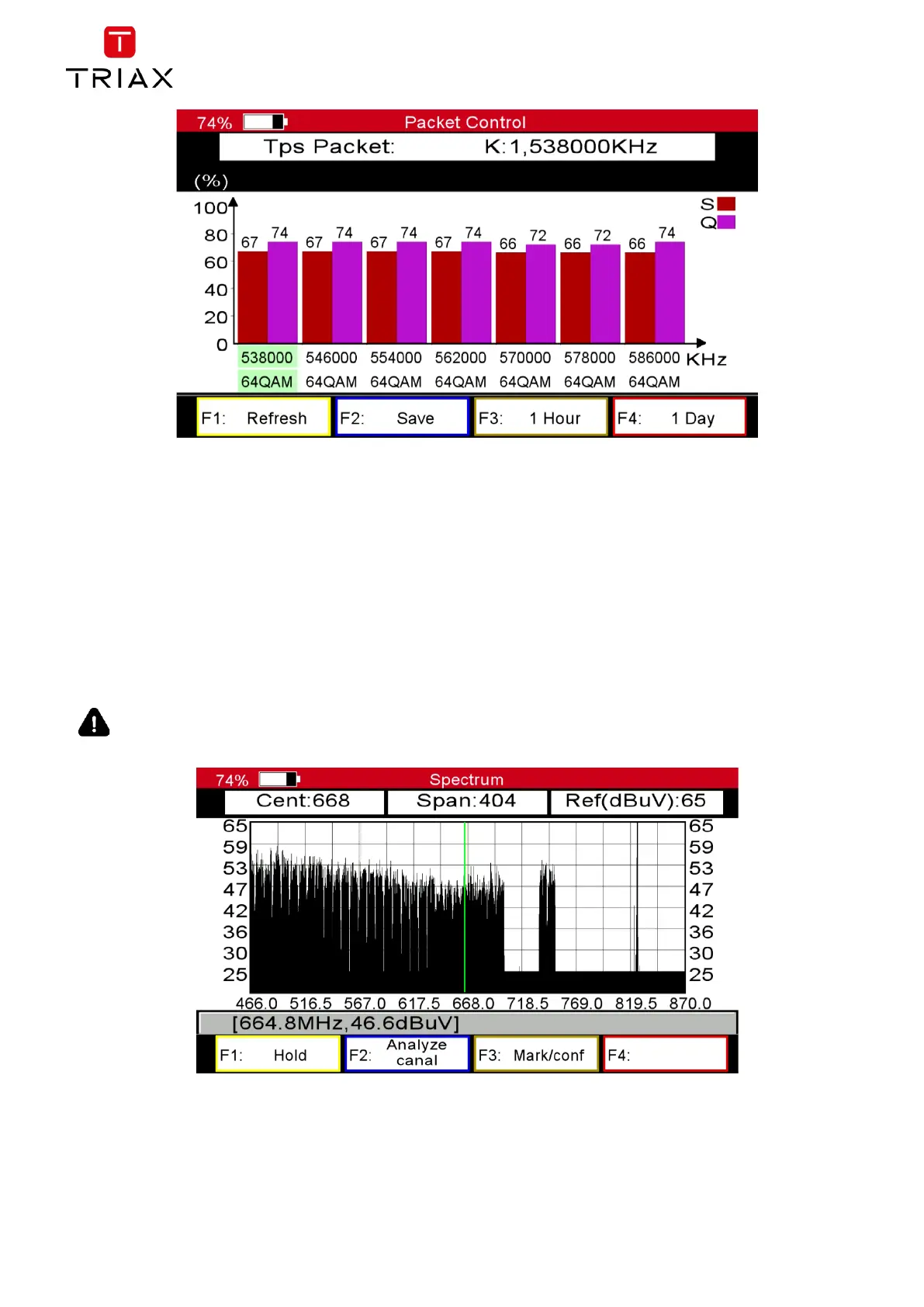

Function Key Options:
F1 - restarts the control and the device starts scanning again
F2 - saves the analyzed values over an individual time period to a USB storage medium
F3 - scans transponders for 1 hour and saves results to USB storage
F4 - scans transponders for 24 hours and saves results to USB storage
Cable, spectrum
The signal spectrum shows a graphical representation of the signal carriers in a certain frequency range.
The spectrum mode of the signal has already been dealt with in chapter 4.10. Please look there for more
detailed information.
TV mode
TV mode, introduction
The TV mode is mainly used to display live TV images, but has various other useful functions which are explained in
the following chapters..
