Tricolor Video-Wall Processor 380 - Operation and Configuration; Operation and Connection; User Guide

Models
Scales
Dimension (mm)
Input
Output
DVI/VGA/HDMI/SDI/YPbPr/
Optical/Twisted-pair/CVBS
Dual-link DVI
/DisplayPort
Video-Wall
Processor
580
4U
440/482(W)*380(D)*175(H)
24
4*
8
8U
440/482(W)*380(D)*352.8(H)
52
8*
18
14U
440/482(W)*380(D)*619.5(H)
96
16*
36
22U
440/482(W)*380(D)*975.1(H)
128
36*
72
4U
440/482(W)*380(D)*175(H)
16
8
8
8U
440/482(W)*380(D)*352.8(H)
32
16
18
14U
440/482(W)*380(D)*619.5(H)
64
32
36
20U
440/482(W)*380(D)*886.2(H)
128
N/A
36
28U
440/482(W)*380(D)*1241.8(H)
128
36*
72
* means dual-link dvi input cards are only effective in specified input slots

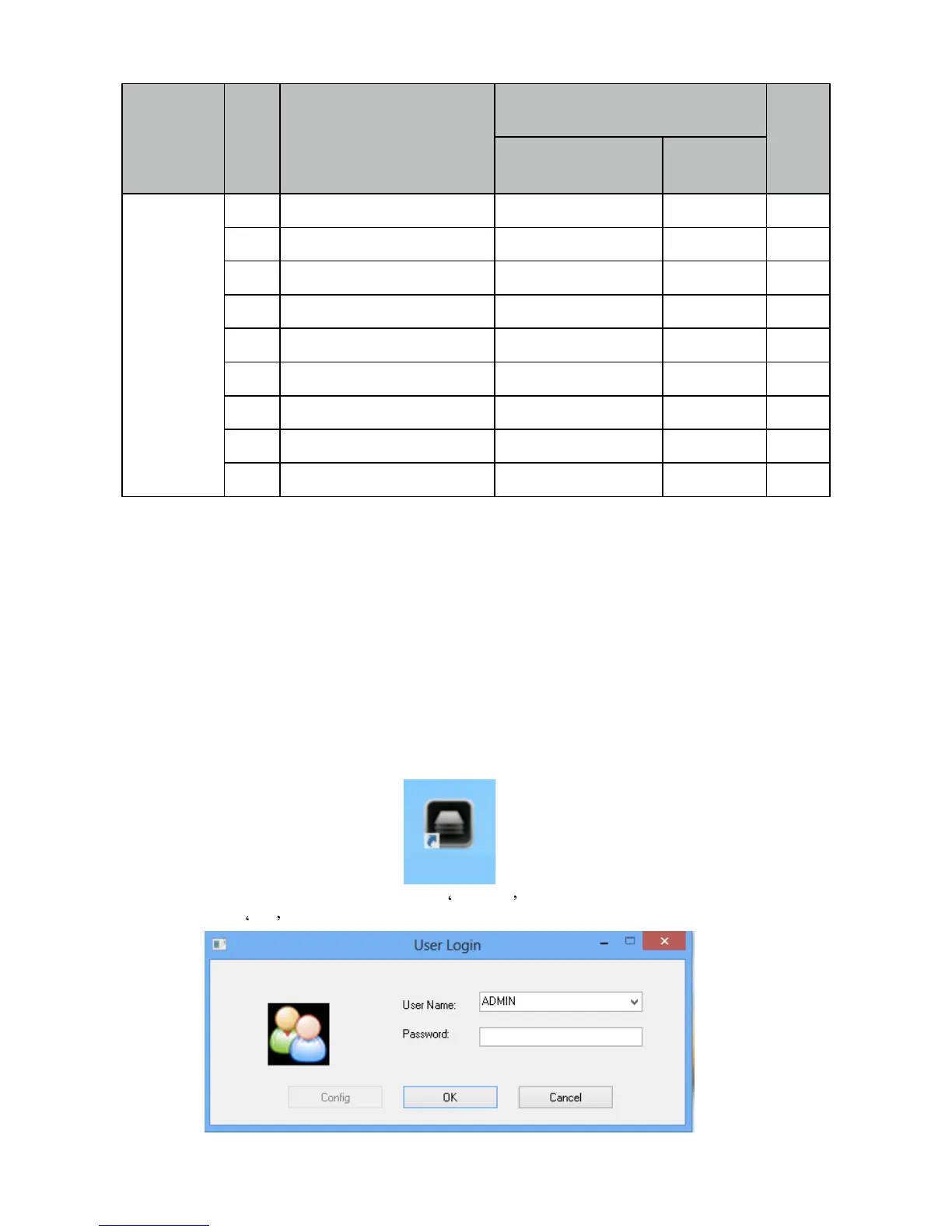

4. User Guide
4.1 Operation and Configuration
(1) Operation and connection
Double clicking the icon on desktop after the software has been installed.
The log in windows will pop up, using the
ADMIN as user name and left the password
blank, then click
OK
.
HMV260
