e-FOB Operation and Features
The FOB transmitter and receiver are shipped programmed. After making all necessary
wiring connections (see pages 9-12), the e-FOB system will function as indicated below.
Only the entry unlock function of the e-FOB remains while the engine is running - other
functions are deactivated. Both the Entry Lock and Cargo Lock must be pressed to arm the
alarm system. Press the Entry or Cargo Unlock button to disarm the system and deactivate
the alarm mode.
• Entry Lock: Locks all entry doors and arms security system.
• Entry Unlock: Unlocks entry doors and disarms security system. Also activates the
porch light.
• Cargo Lock: Locks all compartment doors and arms security system.
• Cargo Unlock: Unlocks all compartment doors and disarms security system. Also
activates the compartment lighting.

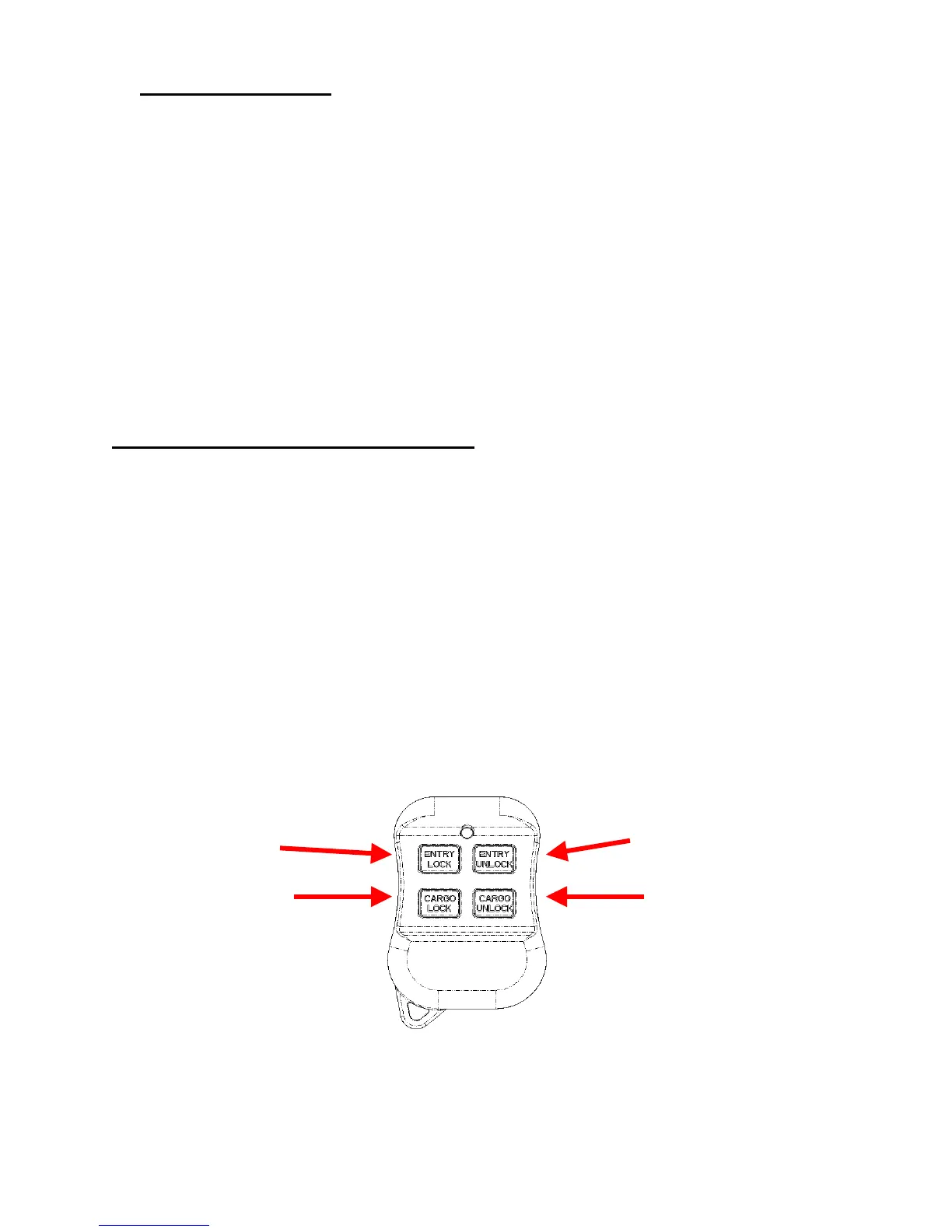

Entry Lock Entry Unlock
Cargo Lock Cargo Unlock
