Page 8 of 16
Compartment light activation− Compartment lights are activated upon unlocking
compartment doors (bank A-D) or toggling vehicle switch. The activation duration is
controlled via trim pot C (see page 6). Starting the engine deactivates the light.
Automatic locking and unlocking −When S2 DIP switch # 3 is ON auto-locking feature is
activated. All doors are locked after the engine has been running for 5 seconds. Doors
unlock when the engine is turned off. To deactivate this feature, move switch 3 to OFF. The
alarm is not enabled/disabled by automatic locking/unlocking.
Mounting e-ASK Components
Contact TriMark for specific mounting details, such as drawings, placement suggestions,
mounting hardware, etc.
General Mounting Guidelines:
• The RF receiver should be placed in an interior location that does not shield RF
signals. You may need to try multiple locations to optimize reception. The antennae
must be left fully extended and exposed. Minimize shielding from metal enclosures.
• Top surface of the I/O modules has features that can be self-tapped with a #8-32
fastener. Fasteners should not be longer than 0.5 inches in thread length. These
features can be used to mount the RF receiver to the I/O module. Also other
components, wiring holders, etc. can be mounted with these features.

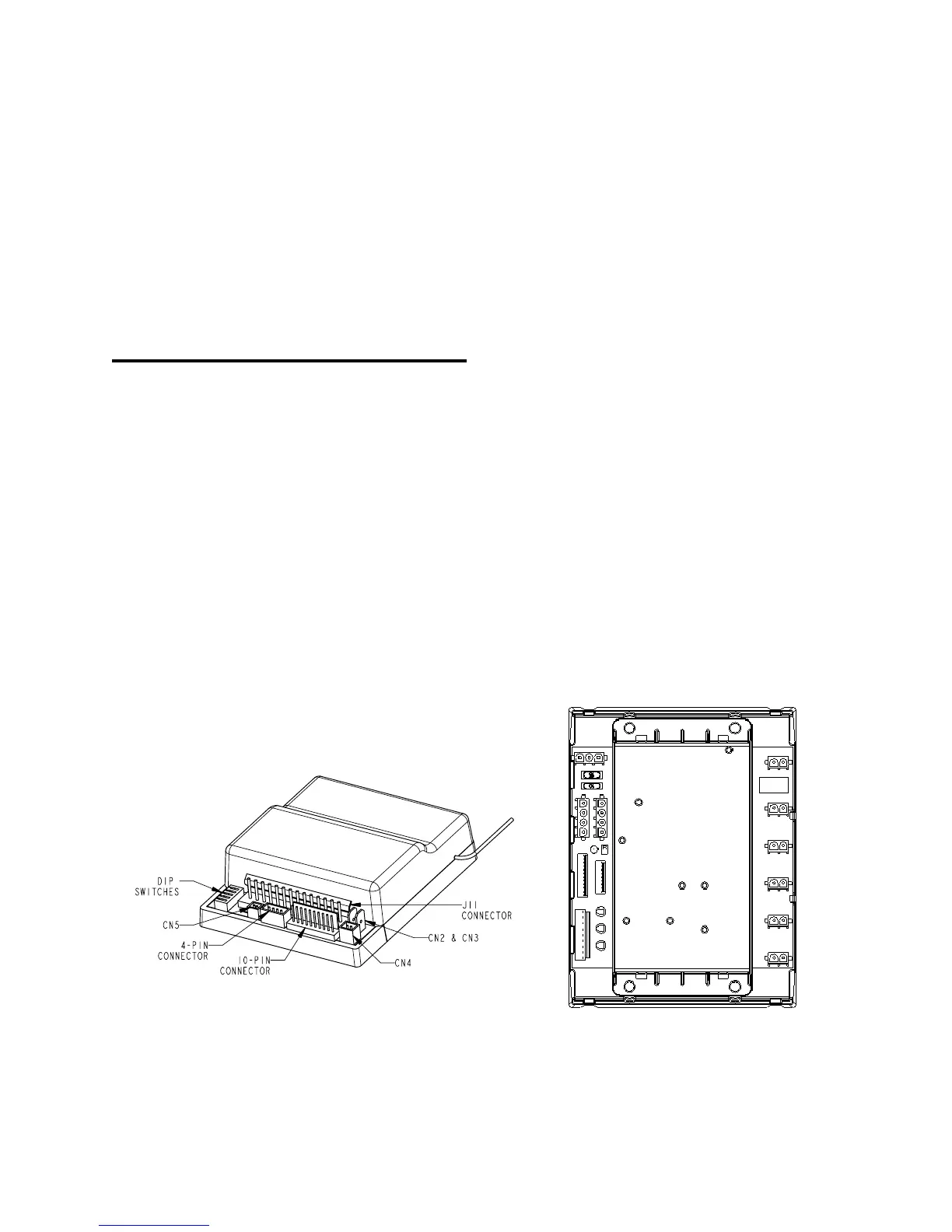

RF Receiver Module I/O Module
