3 | Mounting the NAV-900 Guidance Controller
NAV-900 Guidance Controller Installation Instructions | 21
4. Repeat for the other two stud mounts.

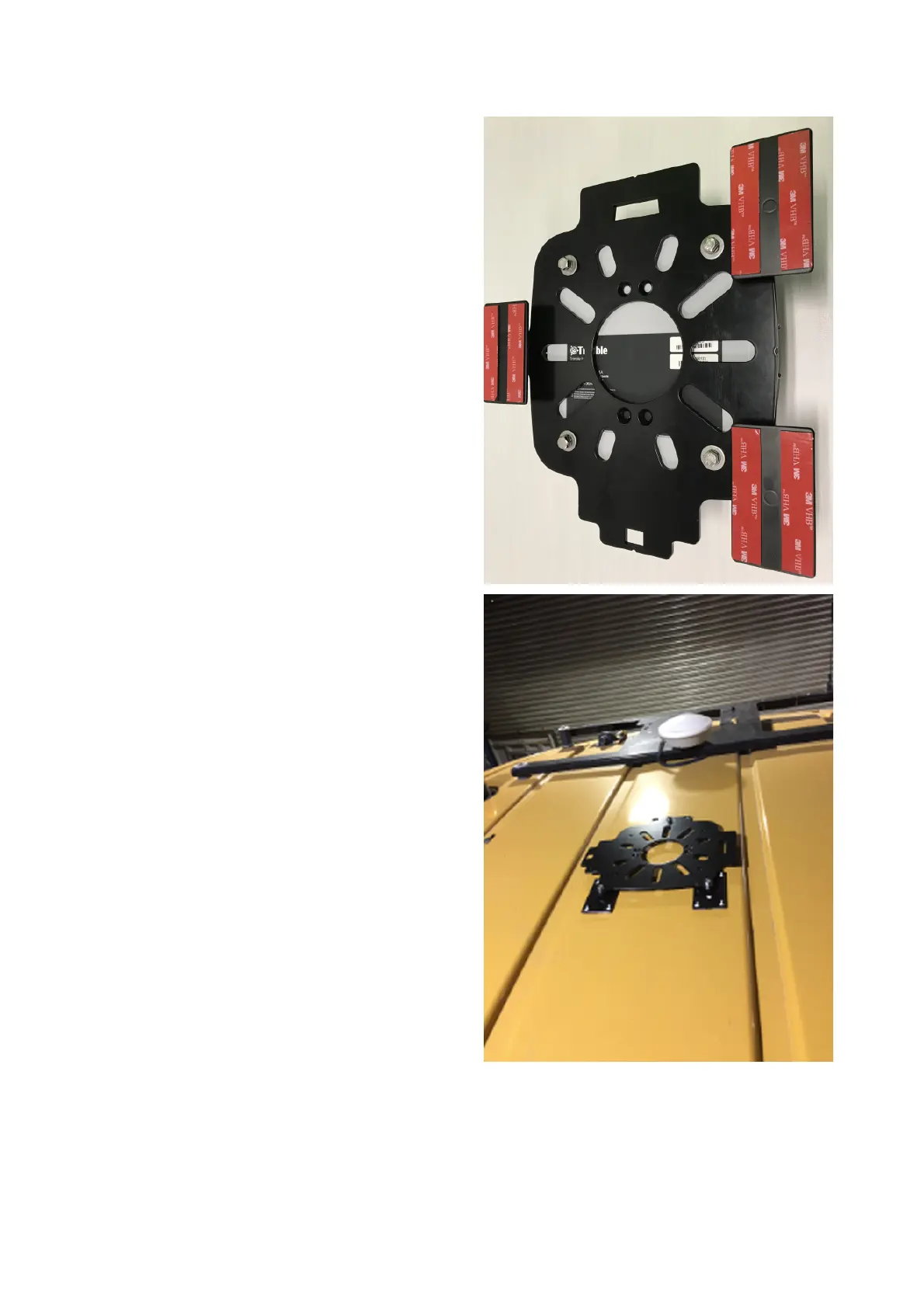

5. Attach the guidance controller to the main
mounting plate.
6. Verify the vehicle is sitting in a level location.
7. Find a suitable location on the top of the tractor
cab with minimal flex and height variation.
8. Before removing the VHB protective covers,
place and mark the location on the cab
ensuring it is on the center-line of the vehicle.
Mark each VHB foot.
9. Peel the covers from the VHB tape and place
the feet in the marked locations.
10. Adjust the height of the nuts on the studs to
level the guidance controller.
