Trimble NAV-900 User Manual

1 | Introduction
NAV-900 Guidance Controller Installation Instructions | 8

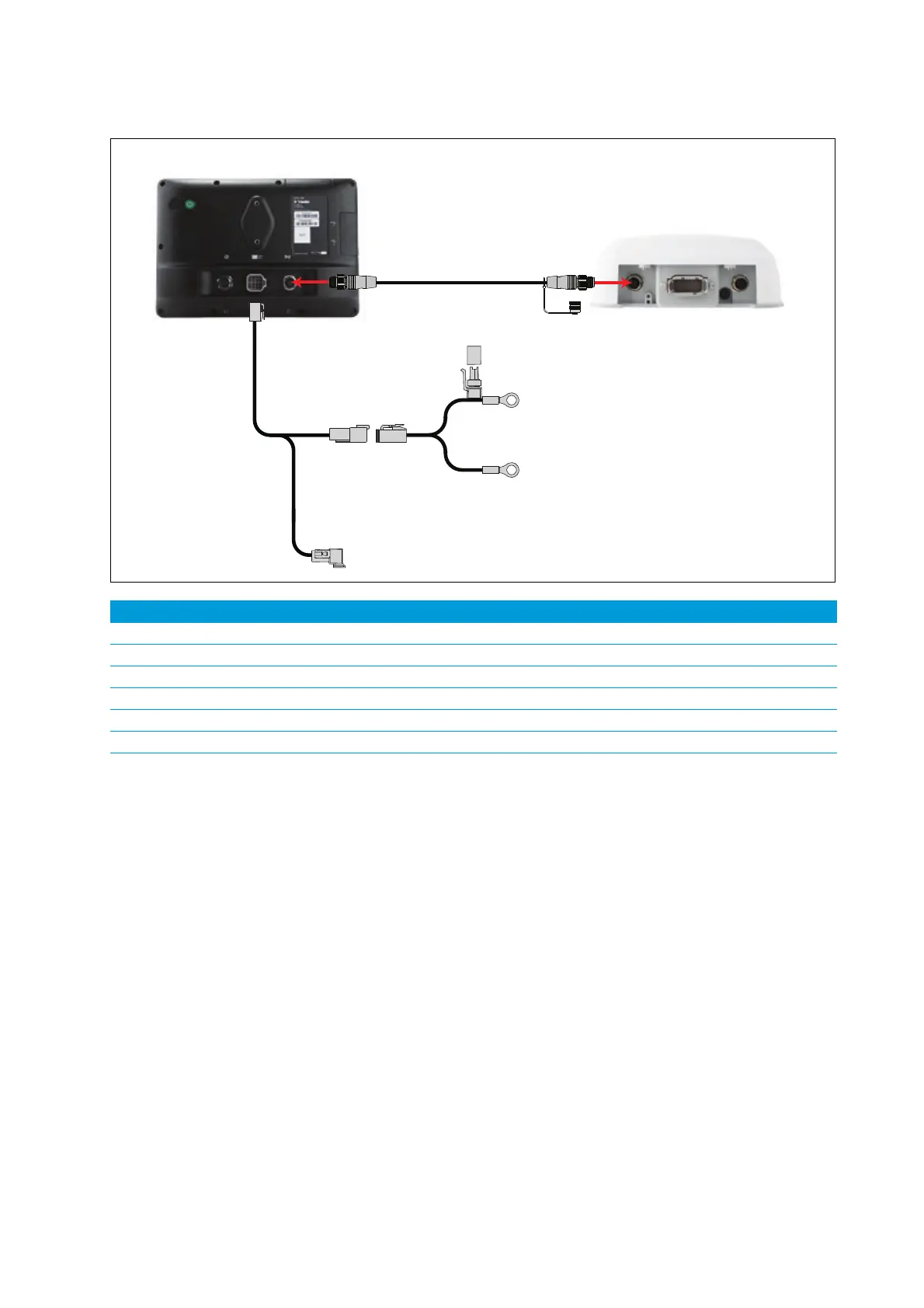

Basic system diagram
Description P/ N
1 GFX-750 Display 121000-05
2 GFX-750 Display to NAV-900 Guidance Controller cable 110540
3 NAV-900 Guidance Controller 108993-05
4 GFX-750 System Power and CAN (1) Display cable 110551
5 GFX-750 System Power (Battery Cable) 67258
6 CAN Port. Uses adapters to connect to CAN implement devices (ISO and Field-IQ™ Basic) 1100551
3
2
4
6
1
5
