Trimble NAV-900 User Manual

3 | Mounting the NAV-900 Guidance Controller
NAV-900 Guidance Controller Installation Instructions | 35
All mounting types – Connecting the cables

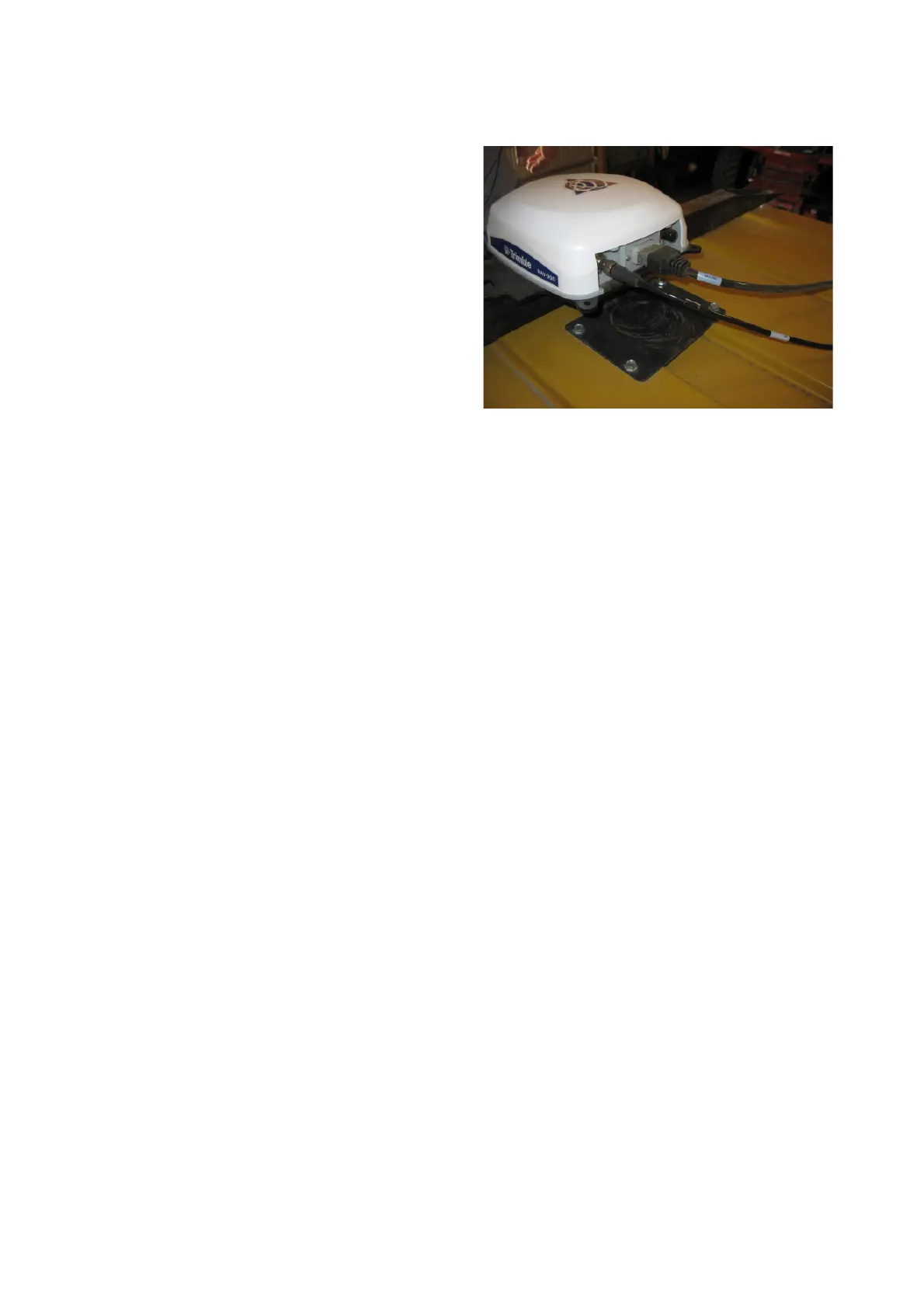

1. Connect the display cable to the 4-pin M12
connector on the left of the NAV-900 guidance
controller.
2. Make sure that you align the keying and then
tighten the connector.
3. Insert the install specific interface cable into the
12-pin Deutsch connector.
4. If a radio is being installed, remove the plastic
cap on the radio connector (right side 5-pin
M12 connector) and carefully align the keying.
Tighten the connector.
5. If no radio is being installed, leave the cap on for
weather protection.

Trimble NAV-900 Specifications

General

Brand	Trimble
Model	NAV-900
Category	Controller
Language	English
