3 | Mounting the NAV-900 Guidance Controller
NAV-900 Guidance Controller Installation Instructions | 24
Case IH factory roof mounts
Case IH machines that come factory ready are fitted with a quick release mount for the 252/262/372
receivers. There is a specific NAV-900 guidance controller mount plate for these vehicles (P/N 111339).
1. Slip the open slot on the mount plate over the raised tab on the CNH receiver mount plate and then
use the over-center latch to secure the guidance controller.

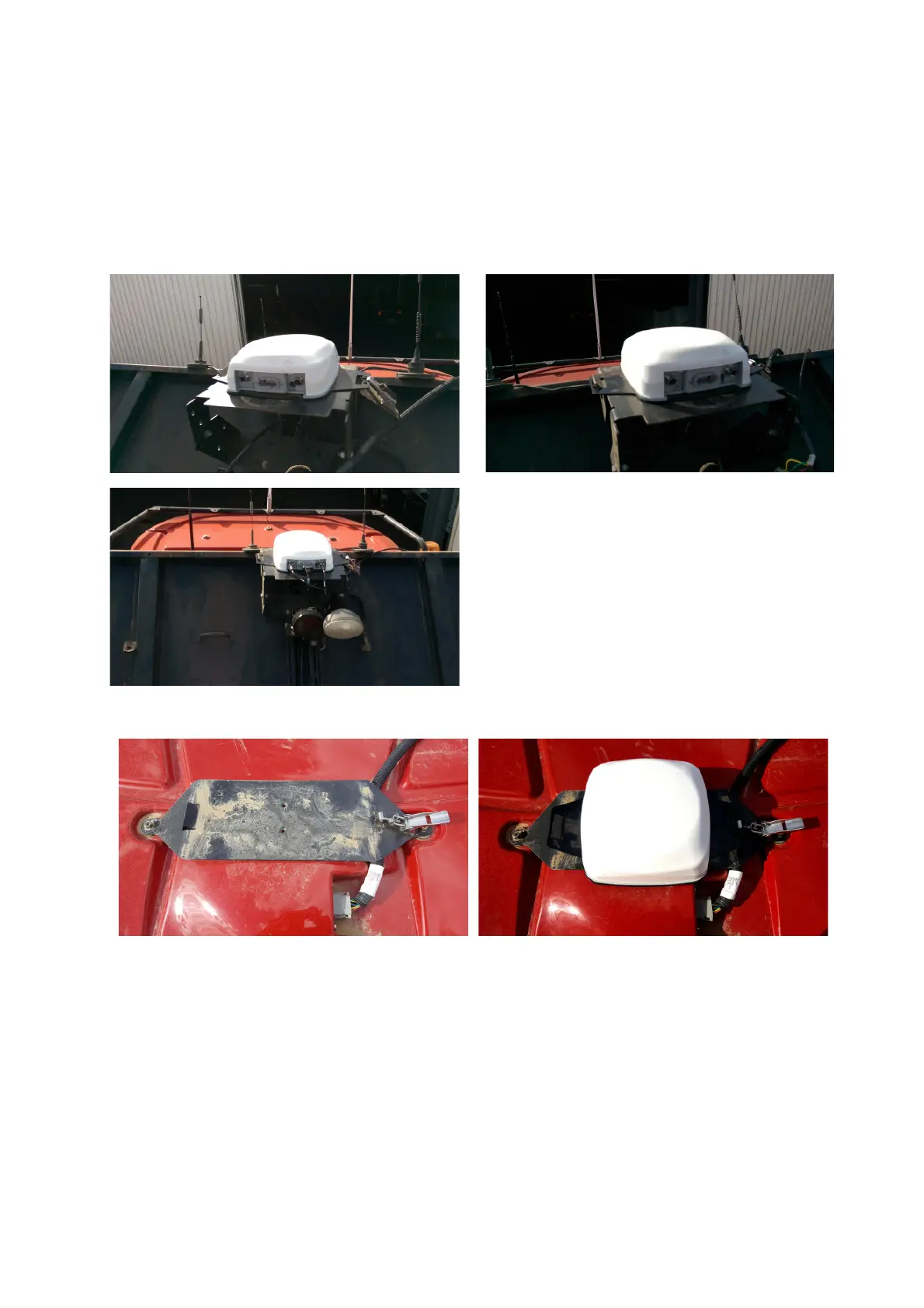

Case IH Flagship combine install: (Case IH 9120 pictured)
Case IH Tractor install: (CIH Magnum 340 pictured)
